Trimmer Capacitor 10pf 22pF 65pF 90pF Vishay

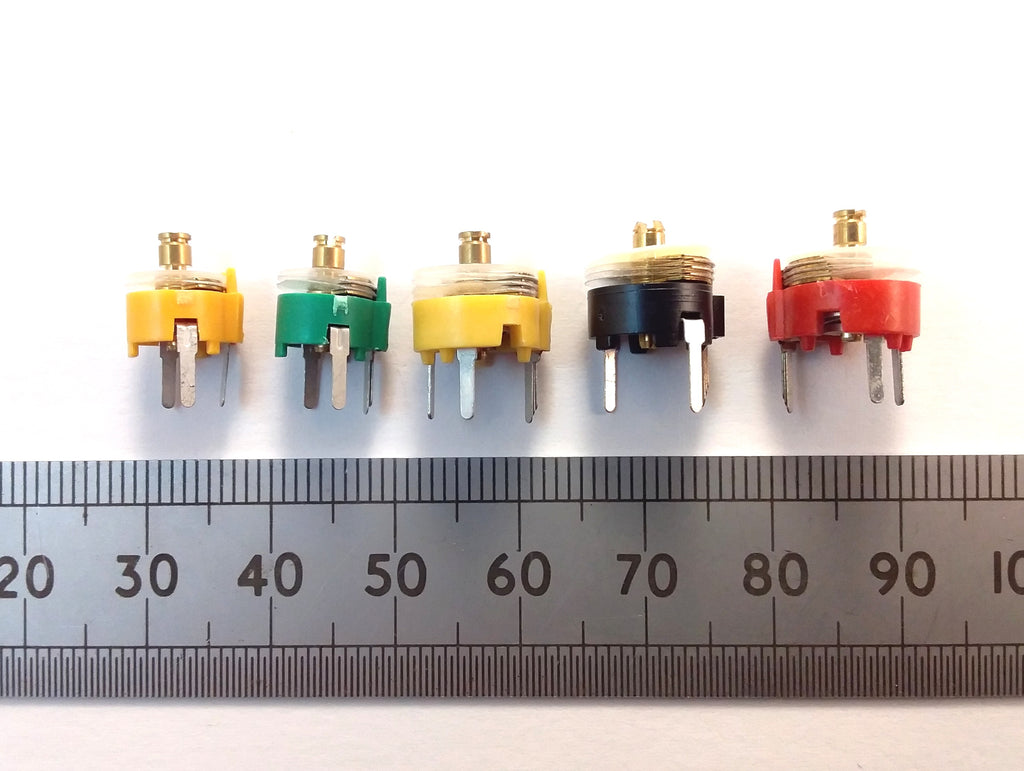

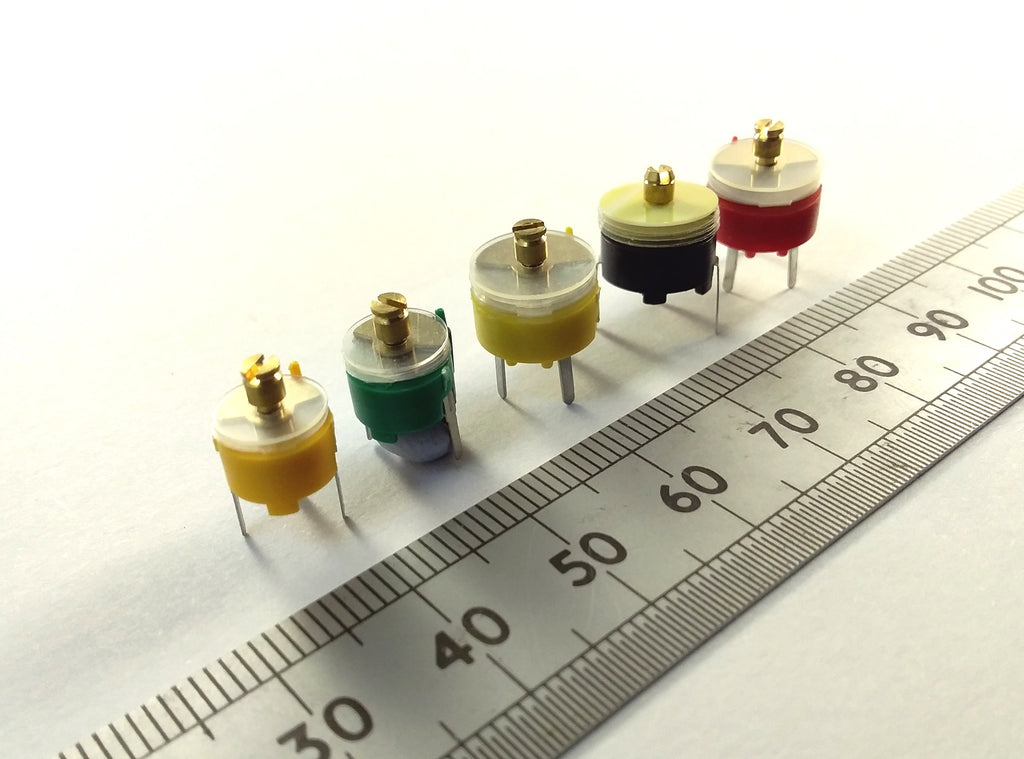

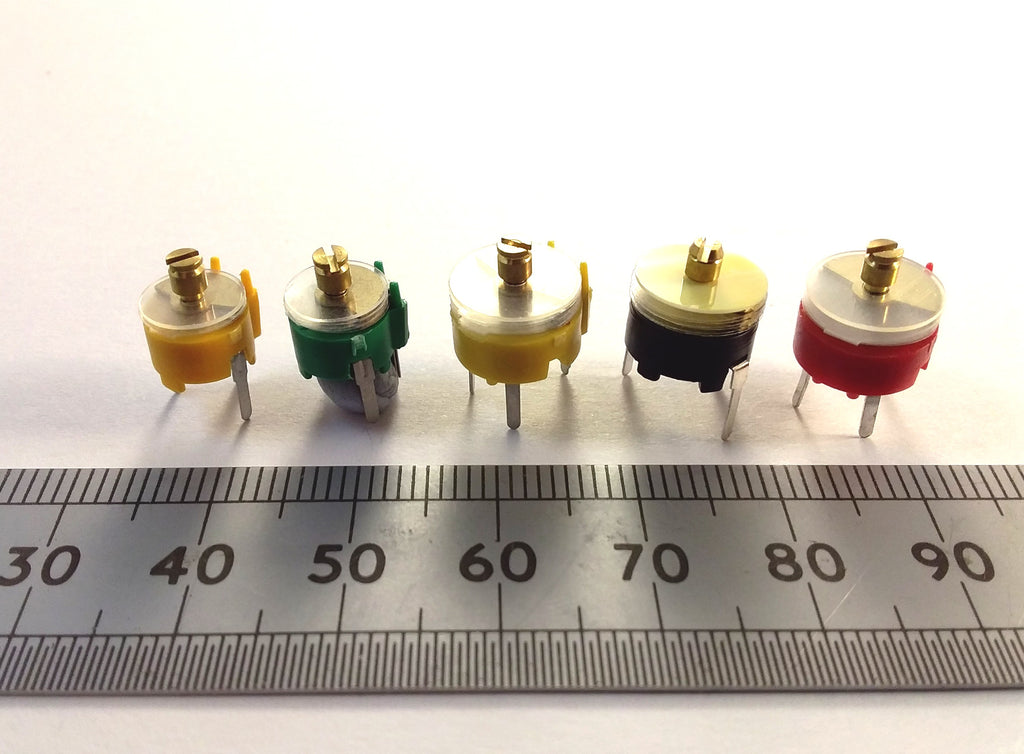

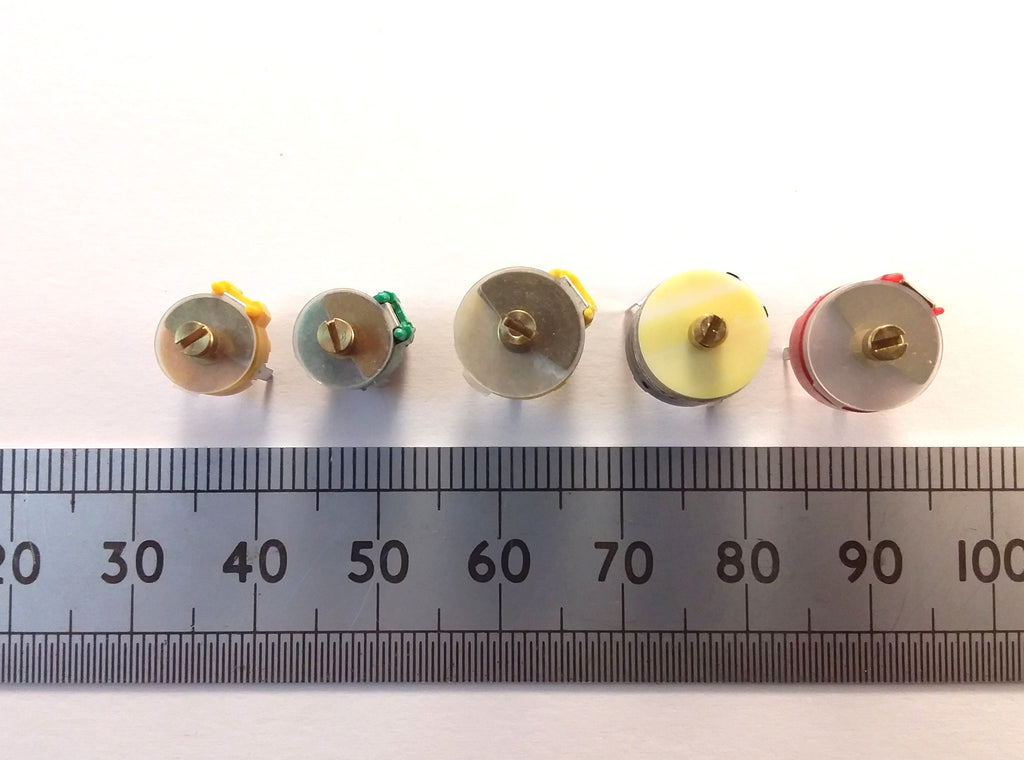

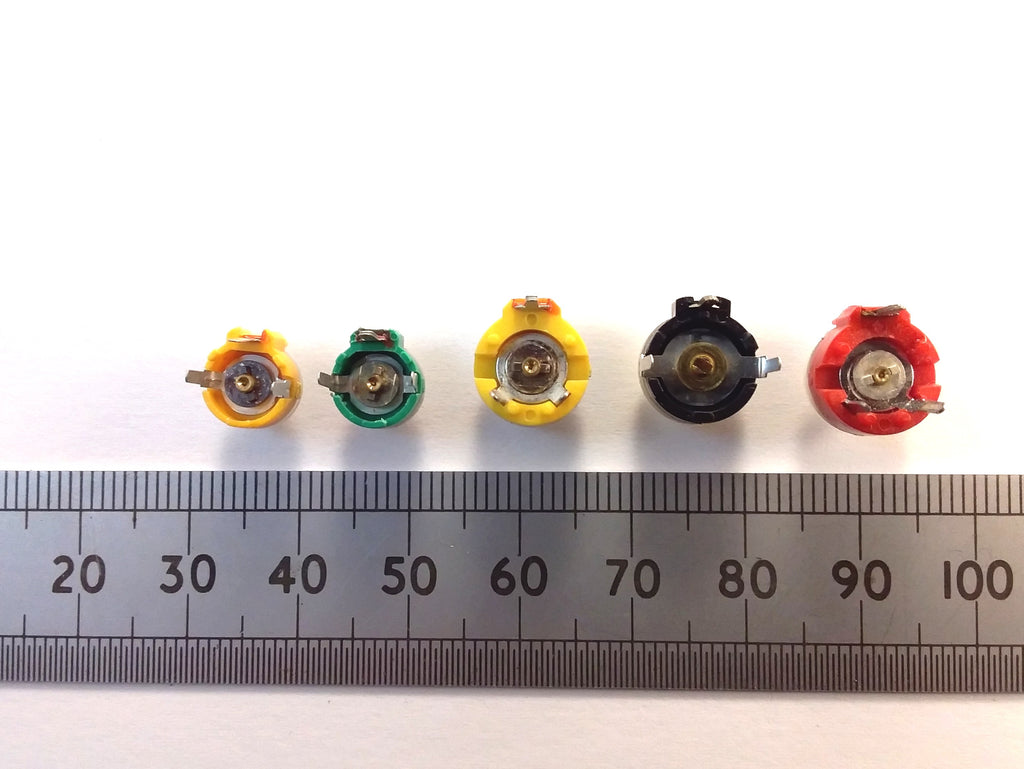

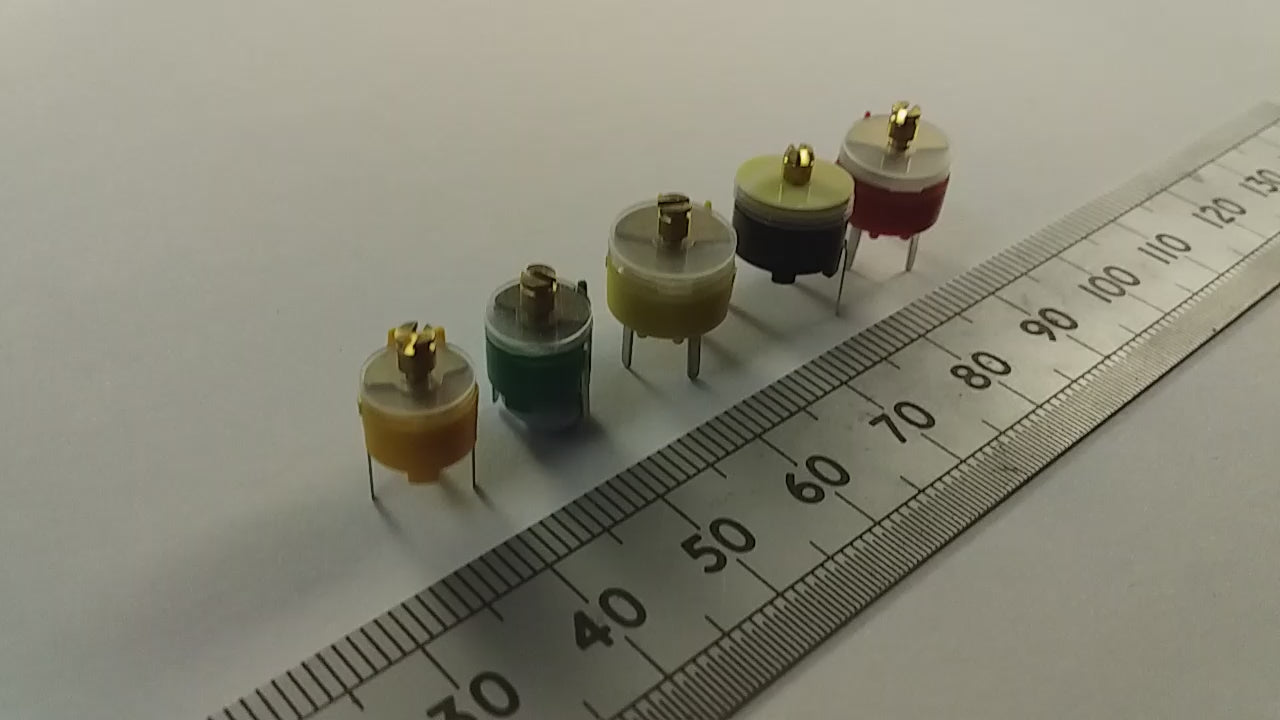

This is one item of standard trimmer capacitor as used in many RF tuned circuit applications. The 65pF is available in two versions. The Vishay-BC part has a yellow body and a 5mm pitch between the common terminals. The Sprague-Goodman part has a black body and a 10mm pitch between the two common terminals. The Sprague part can be adjusted from below if there is a suitable hole in the PCB. The 90pF red trimmer is a Mullard / Philips 808 part.

Here are the specs:

Voltage Rating: 150V D.C.
Capacitor Dielectric: Polypropylene
Q Factor: 1000 @ 1MHz
Operating Temperature: -40°C to +70°C

Cap Value Height Body Dia Lead Pitch Manufacturer

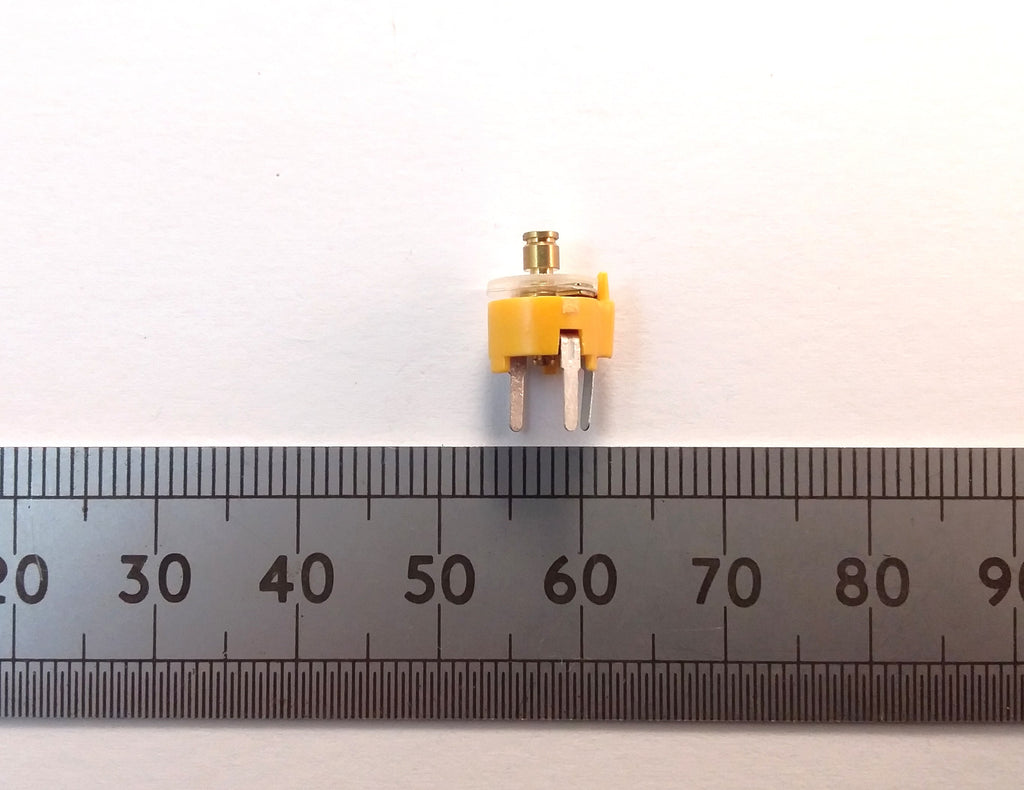

2 - 10pF 10 7.7 5.08 x 5.08 Vishay-BC Yellow
2 - 22pF 10 7.7 5.08 x 5.08 Vishay-BC Green
4.5-65pF 10 10 5 x 8 Vishay-BC Yellow
4.5-65pF 11 10.5 10 x 5 Sprague-Goodman Black
5 - 90pF 10 10 5 x 8 Philips Red
