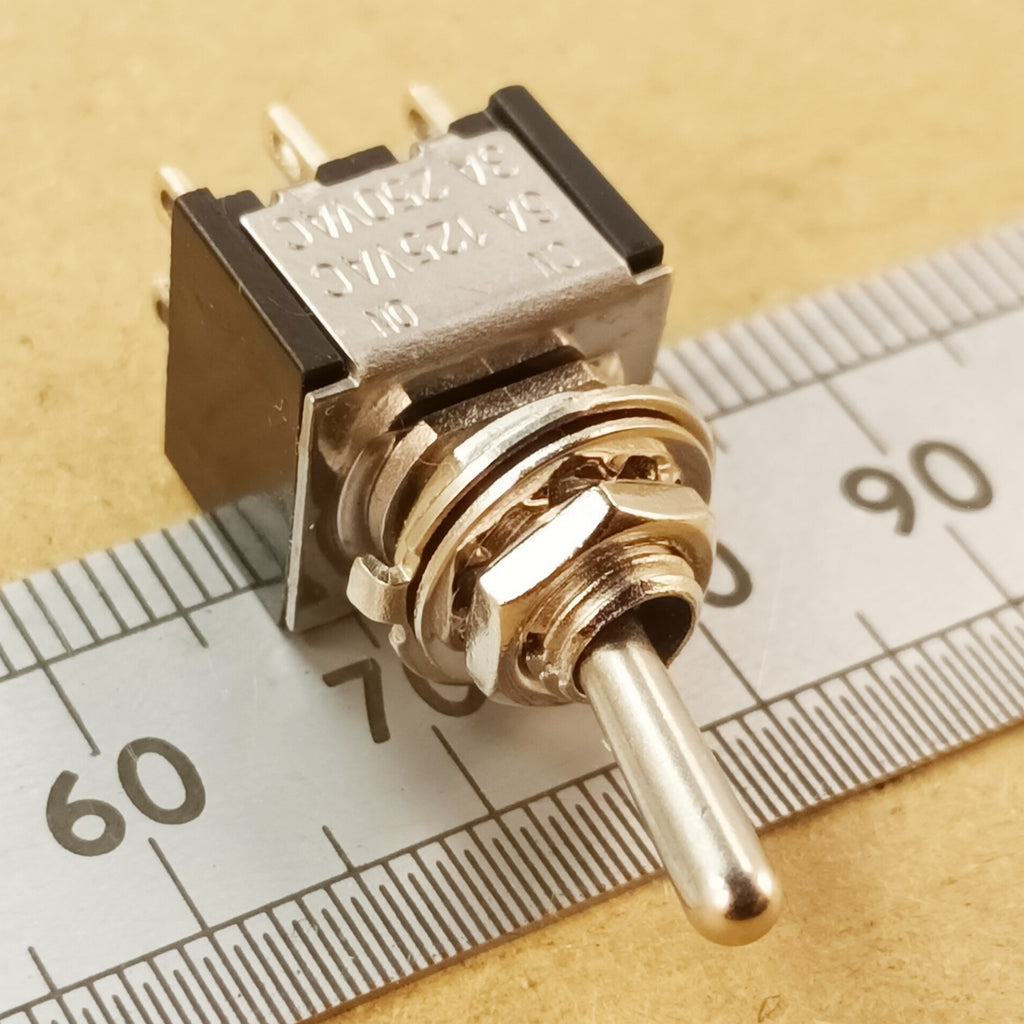

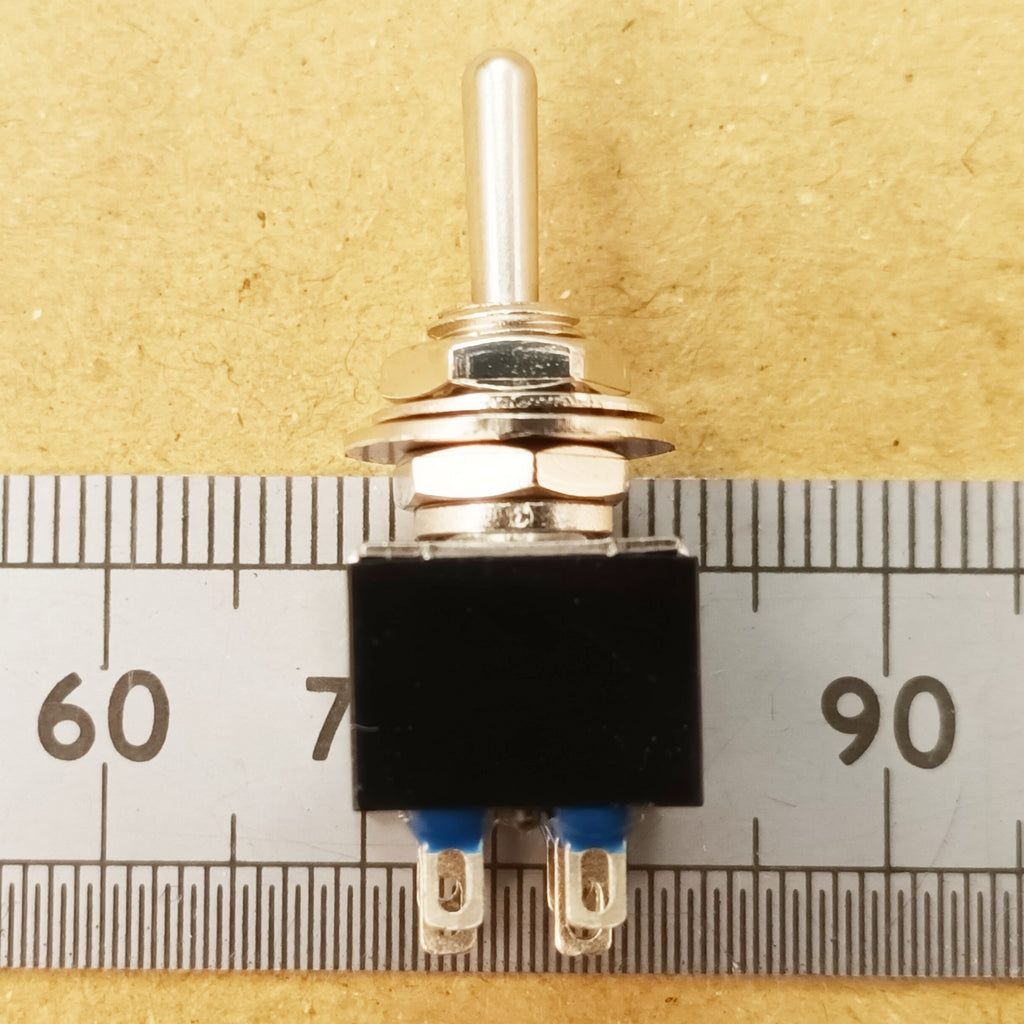

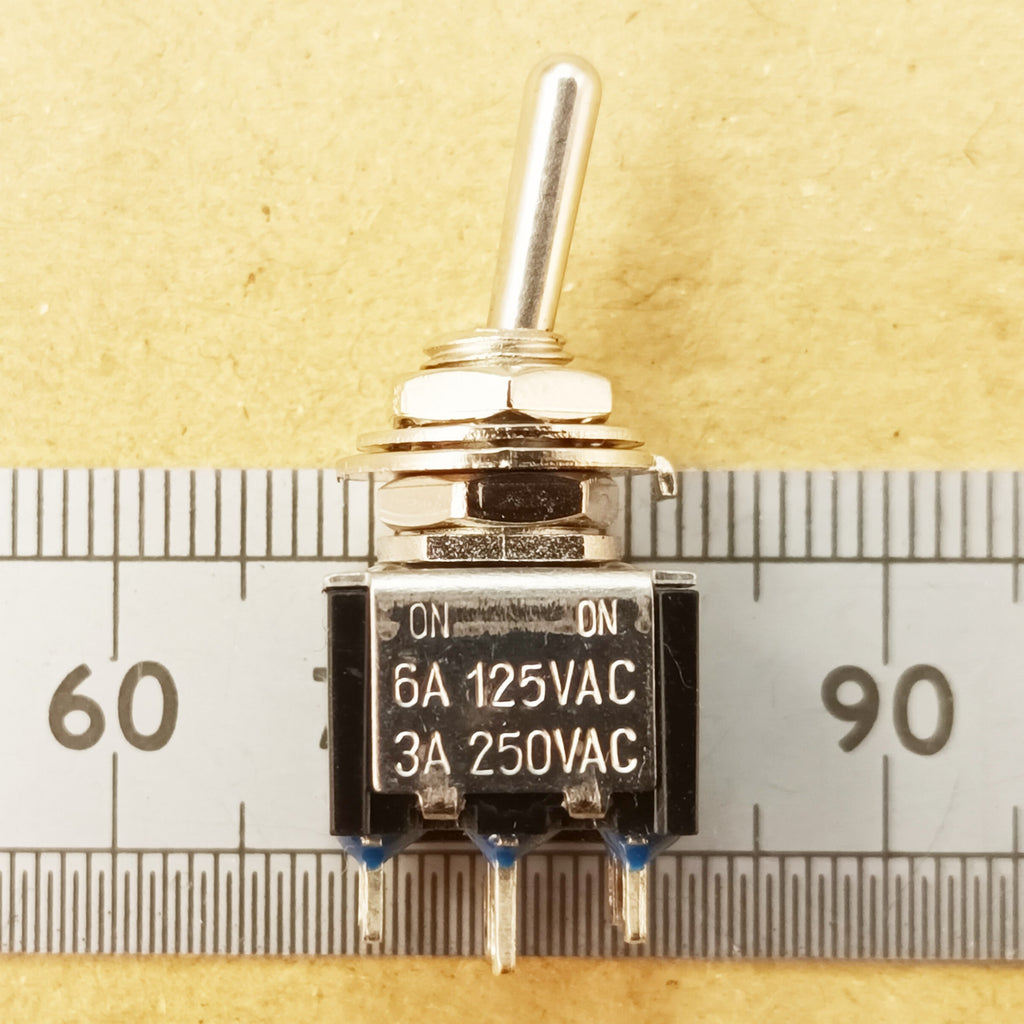

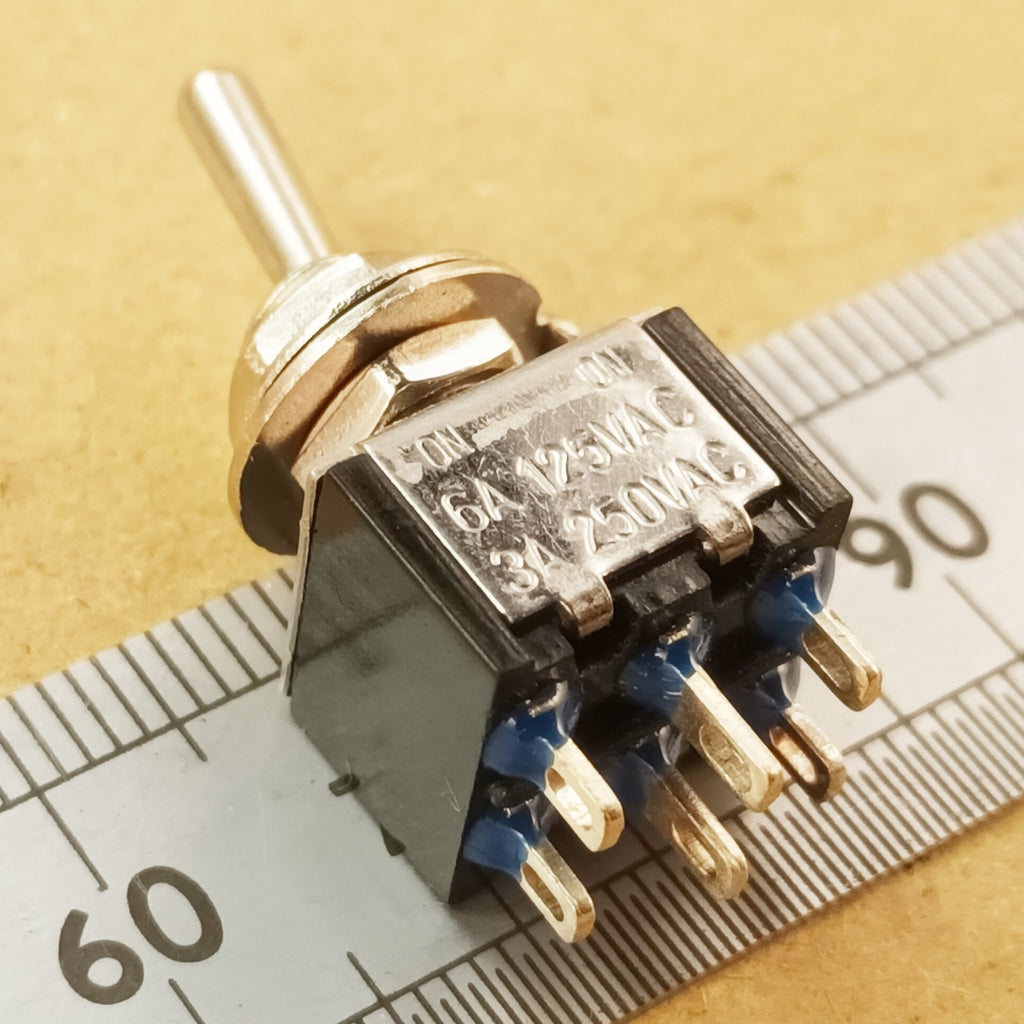

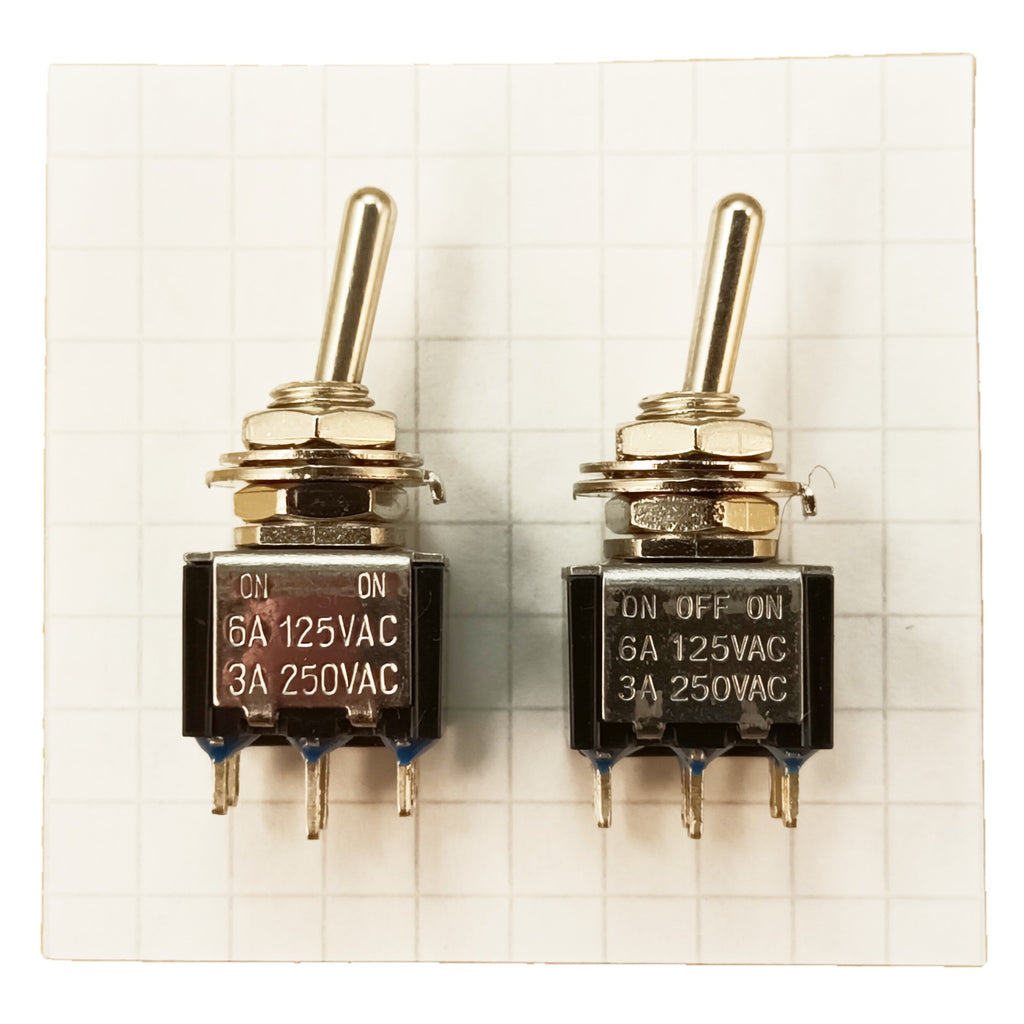

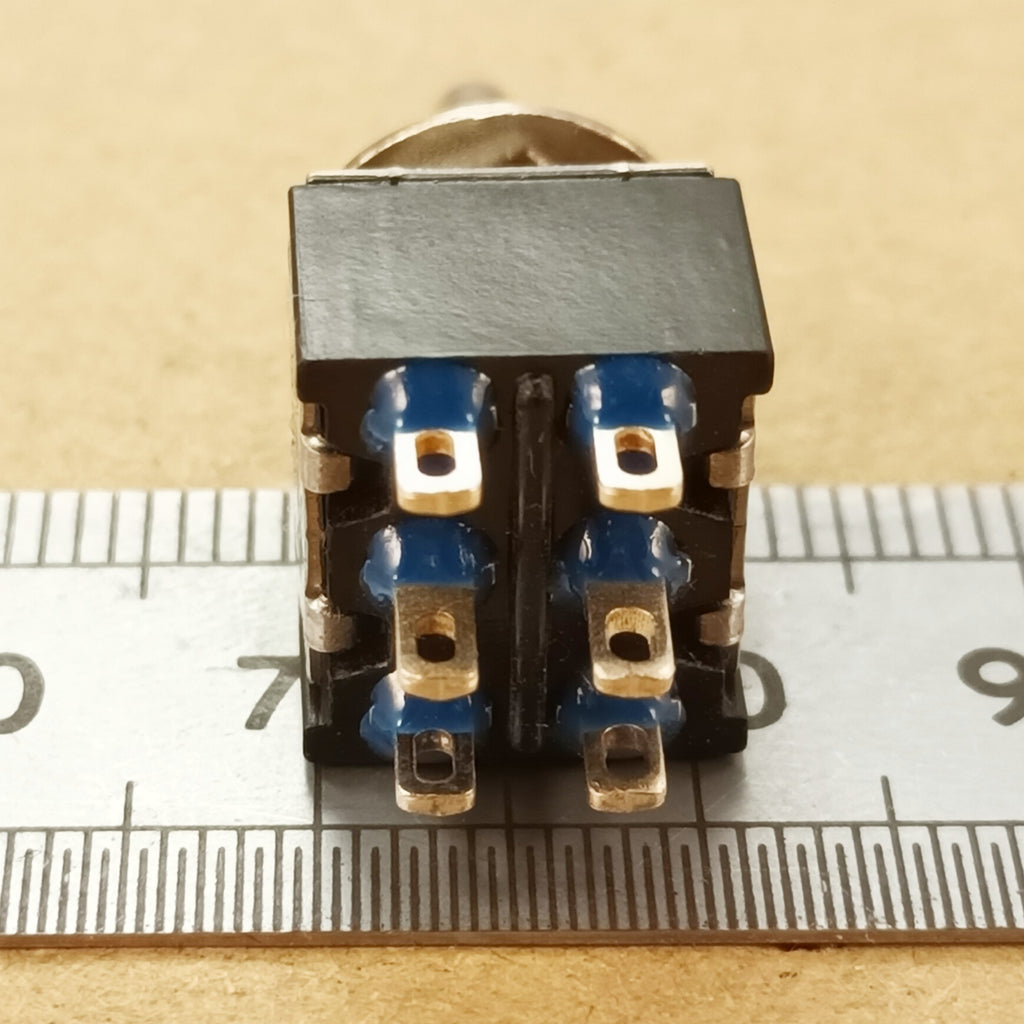

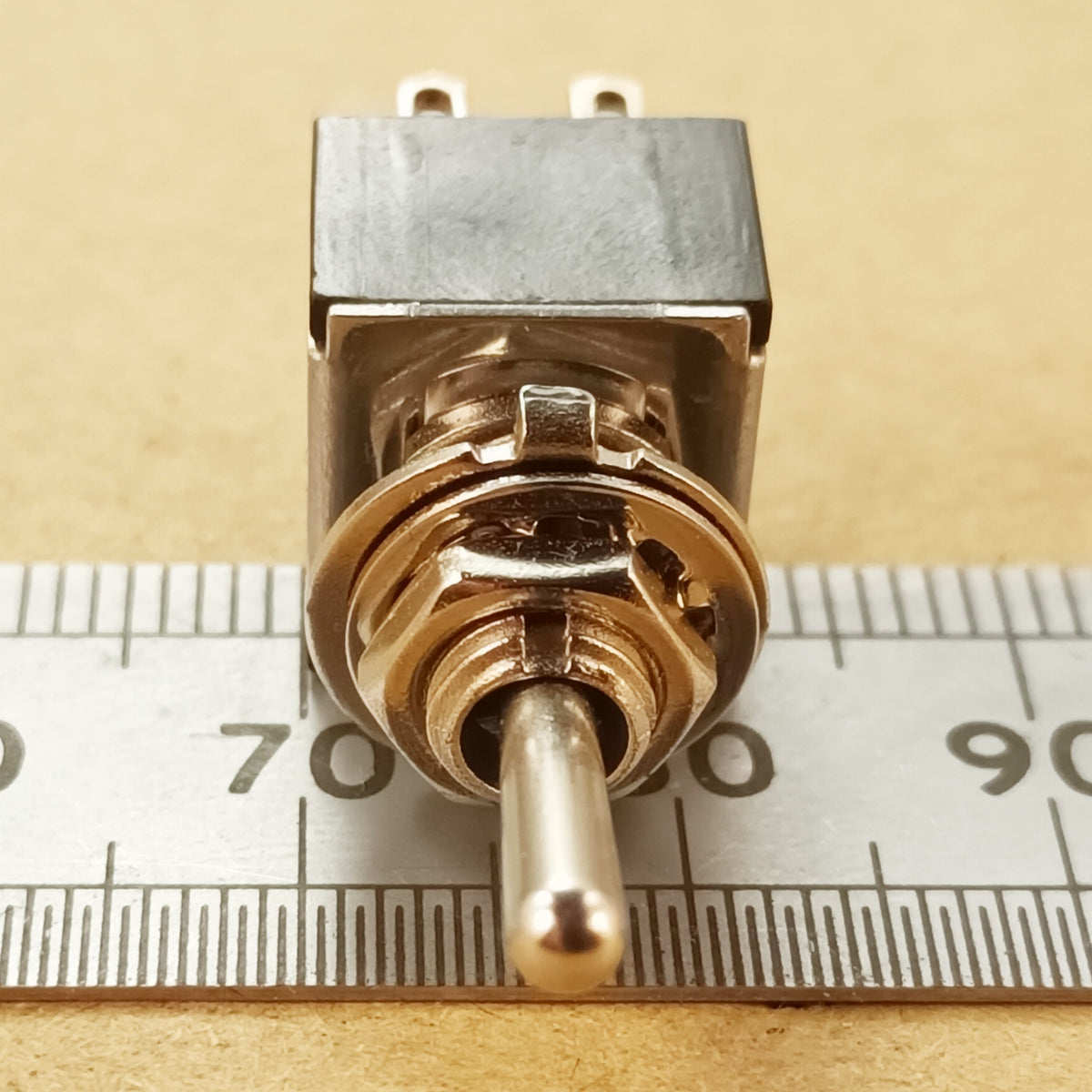

This is one item of toggle switch. The standard DPDT version has two switch positions corresponding to the two middle contacts being independently connected to the two contacts on either side. The centre off version has an additional centre position where none of the contacts are connected together. You can use these to reverse to polarity of current sent to small D.C. model motors thus reversing the direction of rotation, and the centre off version will be OFF in the middle position. A 6mm diameter hole is required in the panel. The contacts on both types are rated at 6A 125VAC and 3A 250VAC. The contacts are silver plated copper-silver alloy. The actuator is 10.5mm long. The total depth behind the panel is 15mm including the solder lugs. The thread length is 7mm. The solder lug connections are sealed to the case with blue resin.
