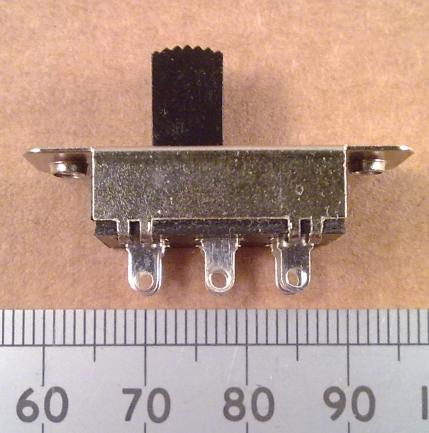

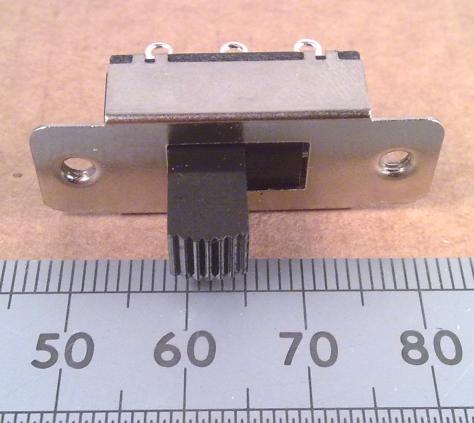

Slide Switch DPDT DPDT-CO Break Before Make Changeover Contact 2P2T

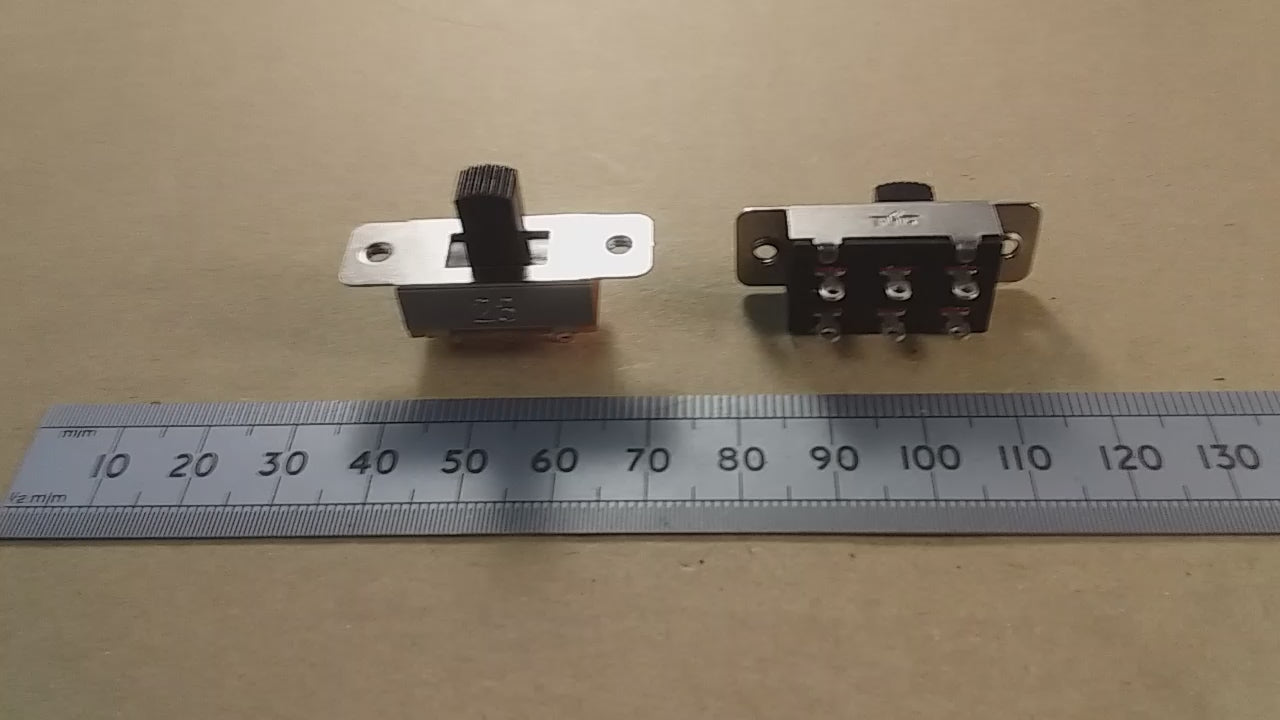

This is one item of standard slide switch where the contacts are rated at 0.3A, 125V AC. The fixing centres are 28mm apart and accept threaded M3 bolts. The standard DPDT version has two switch positions corresponding to the two middle contacts being independently connected to the two contacts on either side. The centre off version has an additional centre position where none of the contacts are connected together. You can use these to reverse the polarity of current sent to small DC model motors thus reversing the direction of rotation, and the centre off version will be OFF in the middle.

Dimensions

35mm Long,
12.5mm Wide,
17.8mm High, not including solder lugs
