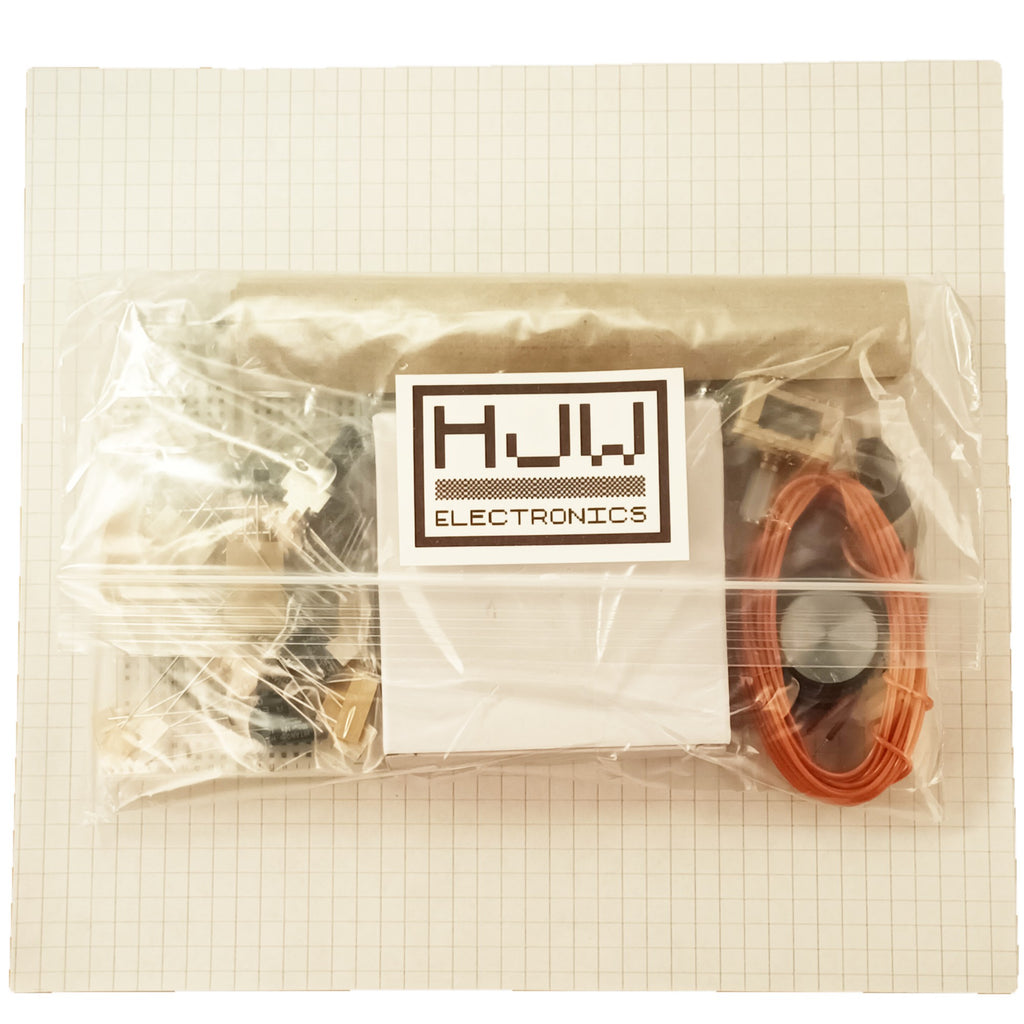

Six Transistor AM Radio Kit Using Solderless Breadboard With Full Online Instructions BBRK-1

Six Transistor AM Radio Kit Of Parts Using Solderless Breadboard To Make MW Receiver with Fully Detailed Online Instructions.

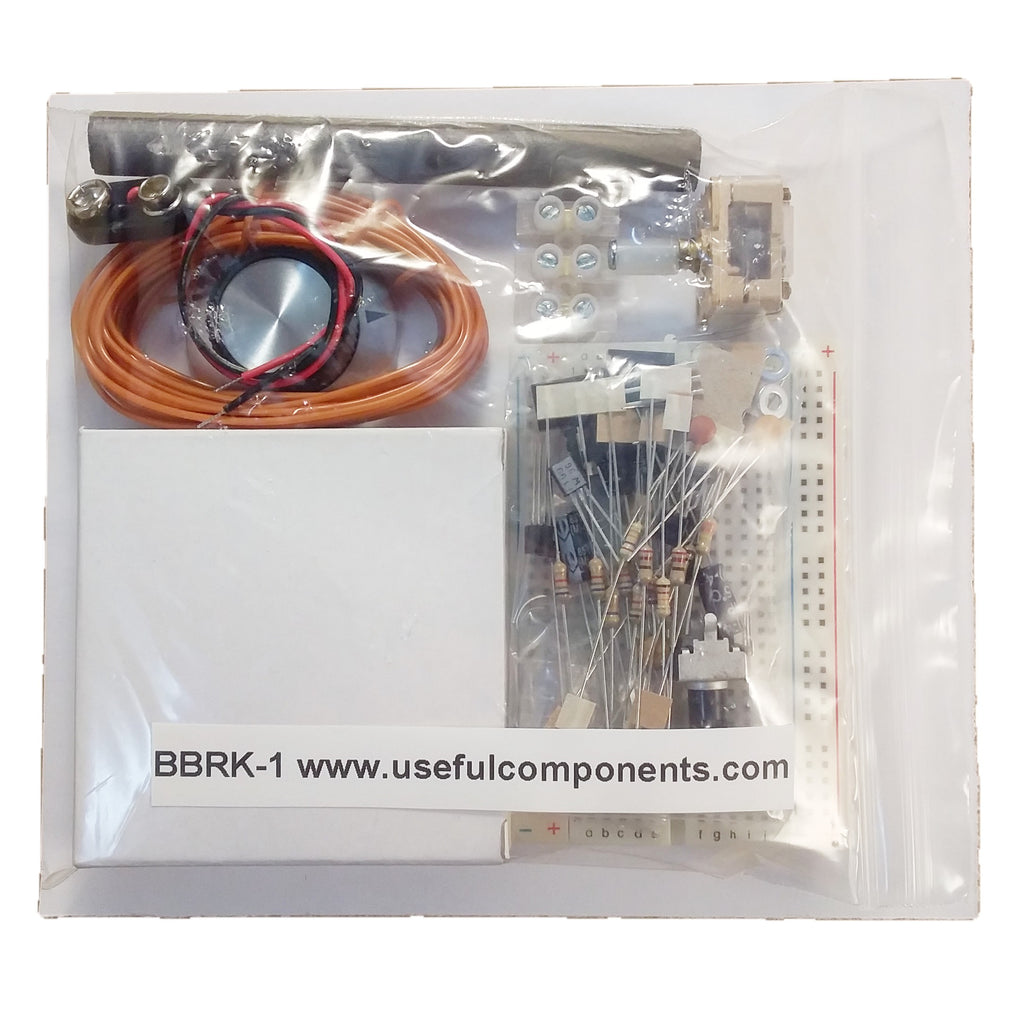

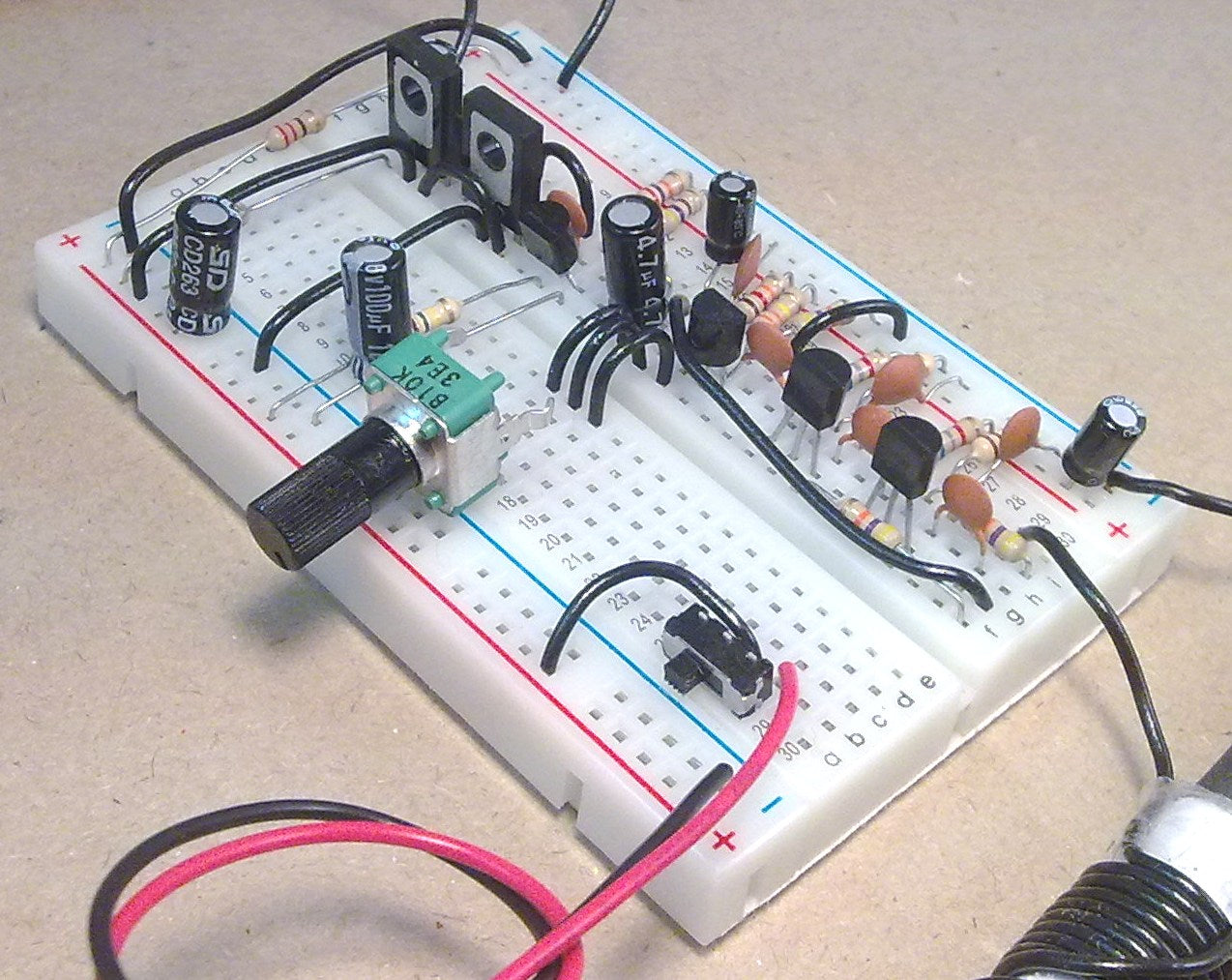

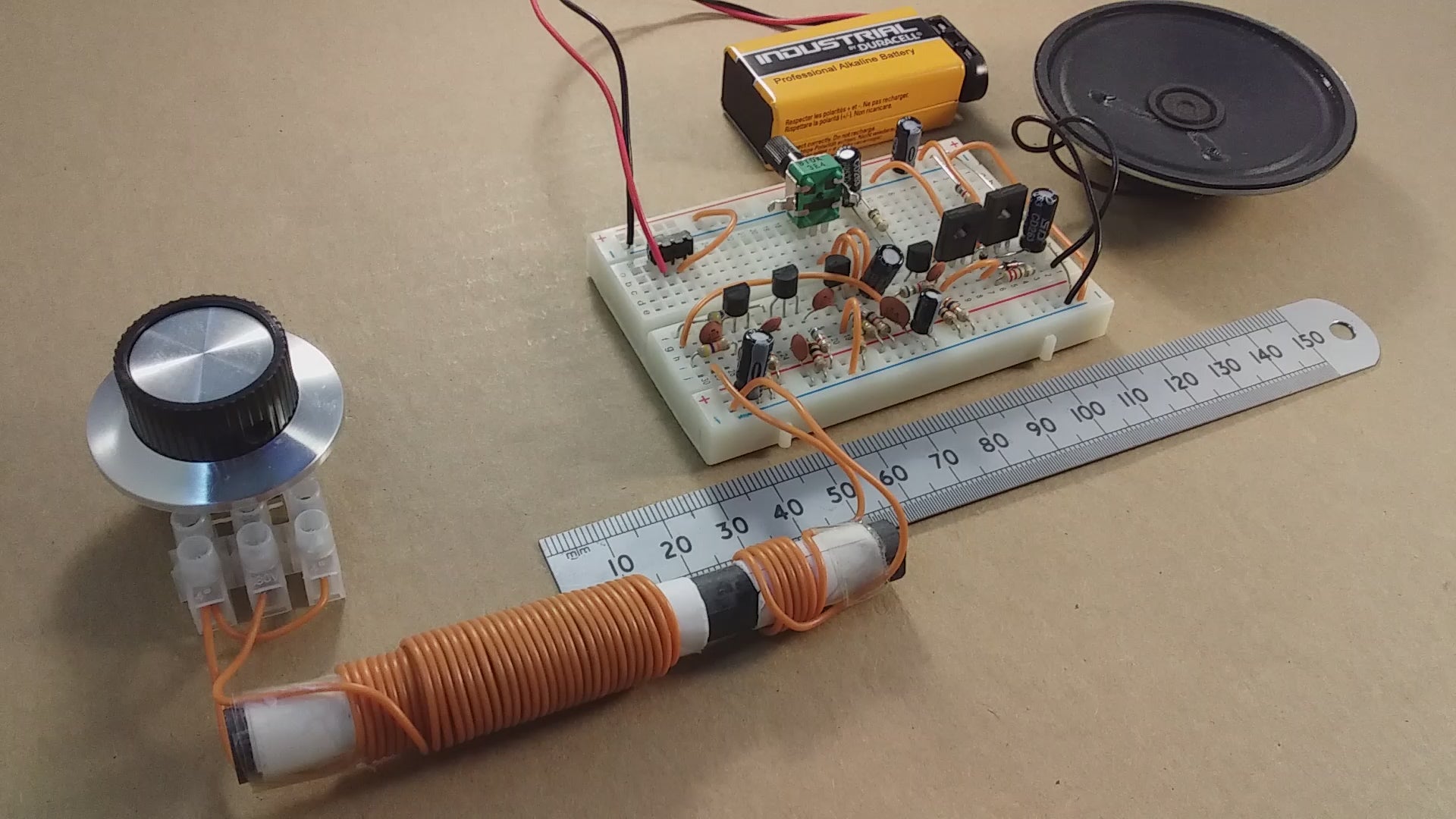

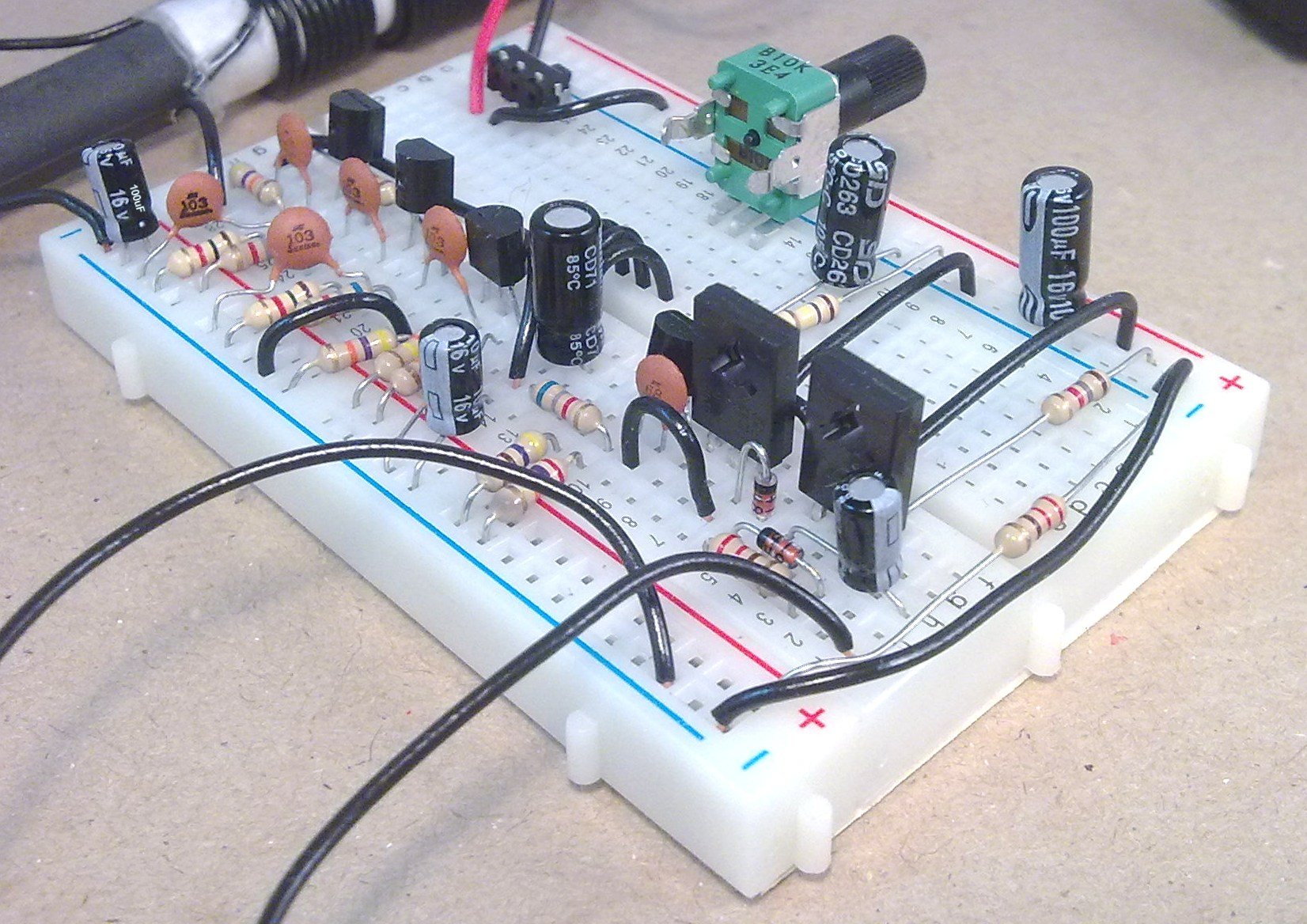

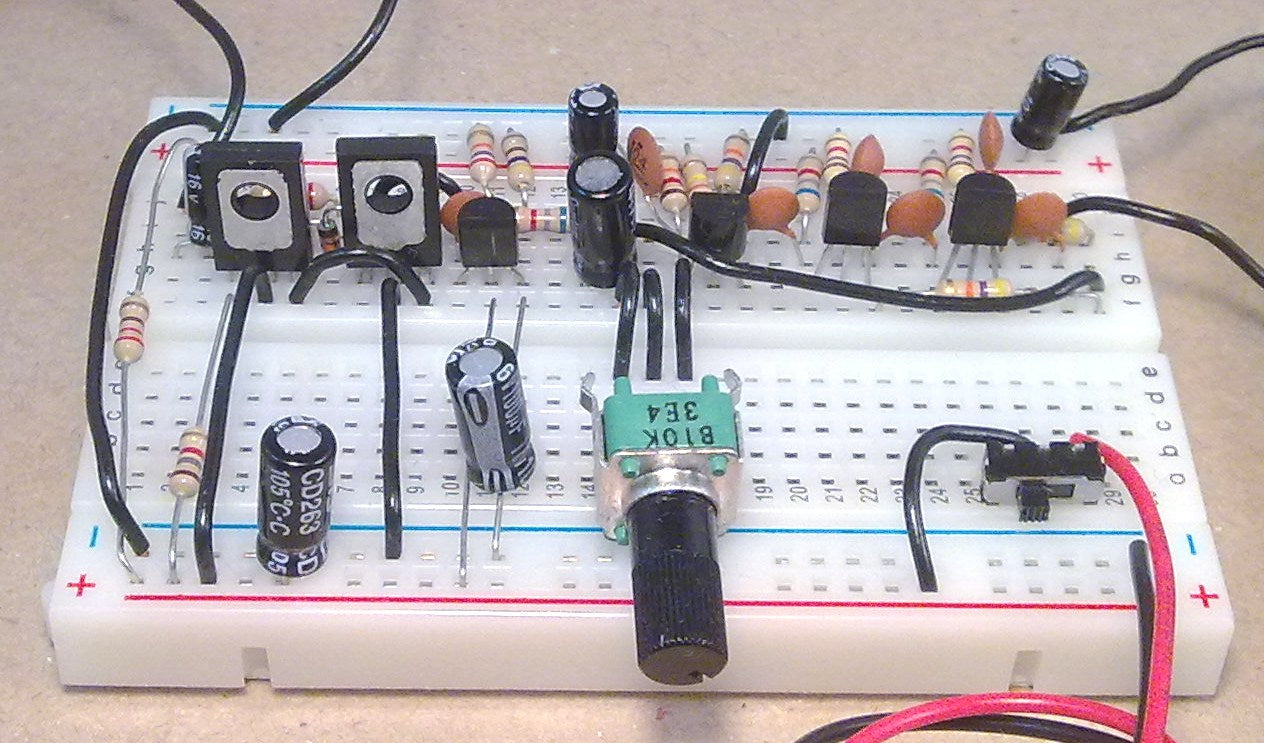

This is a kit of electronic parts which will allow you to build a MW AM transistor radio using modern parts as seen on the Useful Components web page "The Breadboard Six Transistor Radio Kit.

https://www.usefulcomponents.com/main_contents/projects/breadboard_trf_radio/breadboard_trf_radio.html

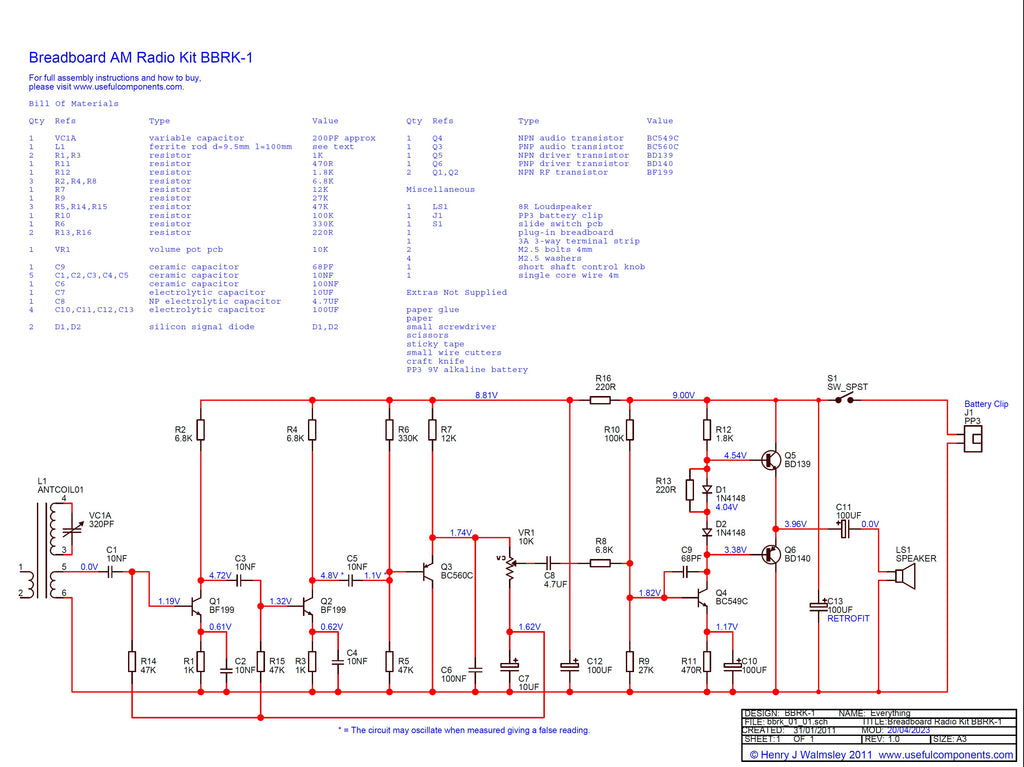

This is the Bill Of Materials:

Bill Of Materials:

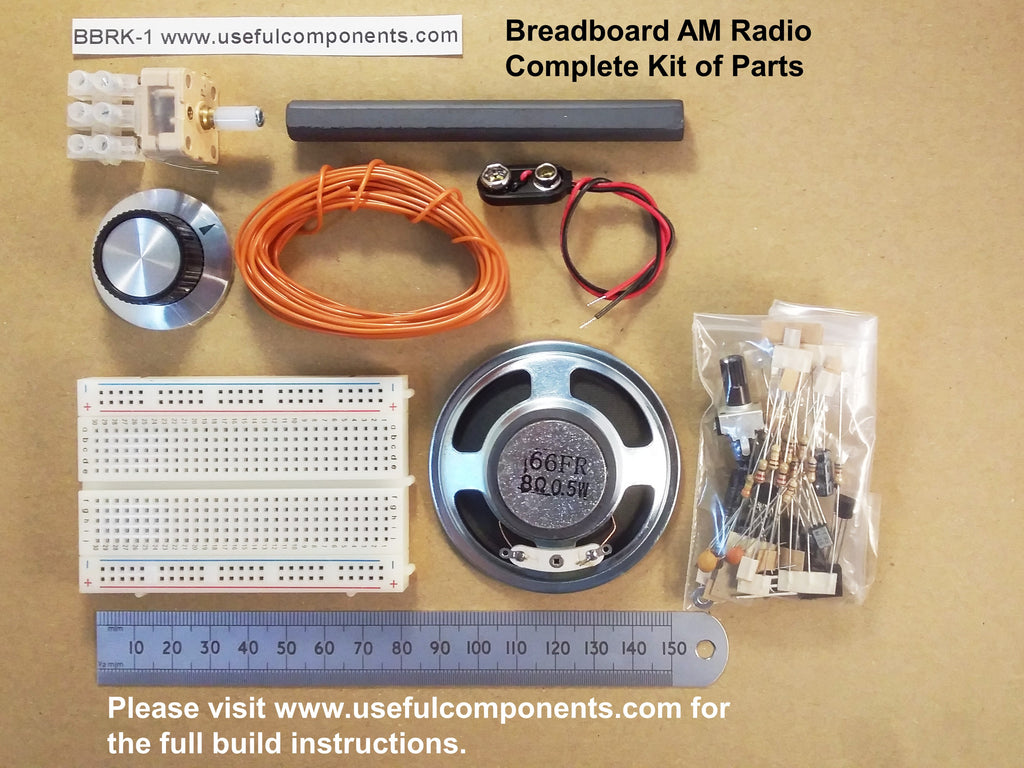

Electronics Parts Included in the Kit

Qty Refs Type Value

1 VC1 variable capacitor 200PF approx
1 L1 ferrite rod d=9.5mm, l=100mm see text
2 R1,R3 resistor 1K
1 R11 resistor 470R
1 R12 resistor 1.8K
3 R2,R4,R8 resistor 6.8K
1 R7 resistor 12K
1 R9 resistor 27K
3 R5,R14,R15 resistor 47K
1 R10 resistor 100K
1 R6 resistor 330K
2 R13, R16 resistor 220R
1 VR1 volume pot pcb 10K
1 C9 ceramic capacitor 68pF
5 C1,C2,C3,C4,C5 ceramic capacitor 10NF
1 C6 ceramic capacitor 100NF
1 C7 electrolytic capacitor 10UF
1 C8 NP elec capacitor 4.7UF
4 C10,C11,C12,C13 electrolytic capacitor 100UF
2 D1,D2 diode 1N4148
1 Q4 NPN audio transistor BC549C
1 Q3 PNP audio transistor BC560C
1 Q5 NPN driver transistor BD139
1 Q6 PNP driver transistor BD140
2 Q1,Q2 NPN RF transistor BF199

Miscellaneous

1 LS1 65mm 8R loudspeaker
1 J1 PP3 battery clip
1 S1 slide switch pcb
1 plug-in breadboard
1 3A 3-way terminal strip
2 M2.5 bolts 4mm
4 M2.5 washers
1 short shaft control knob
1 single core wire 4m

Extras Not Supplied

Paper glue
Paper
Small screwdriver
Scissors
Sticky tape
Small wire cutters
Craft Knife
PP3 9V Battery

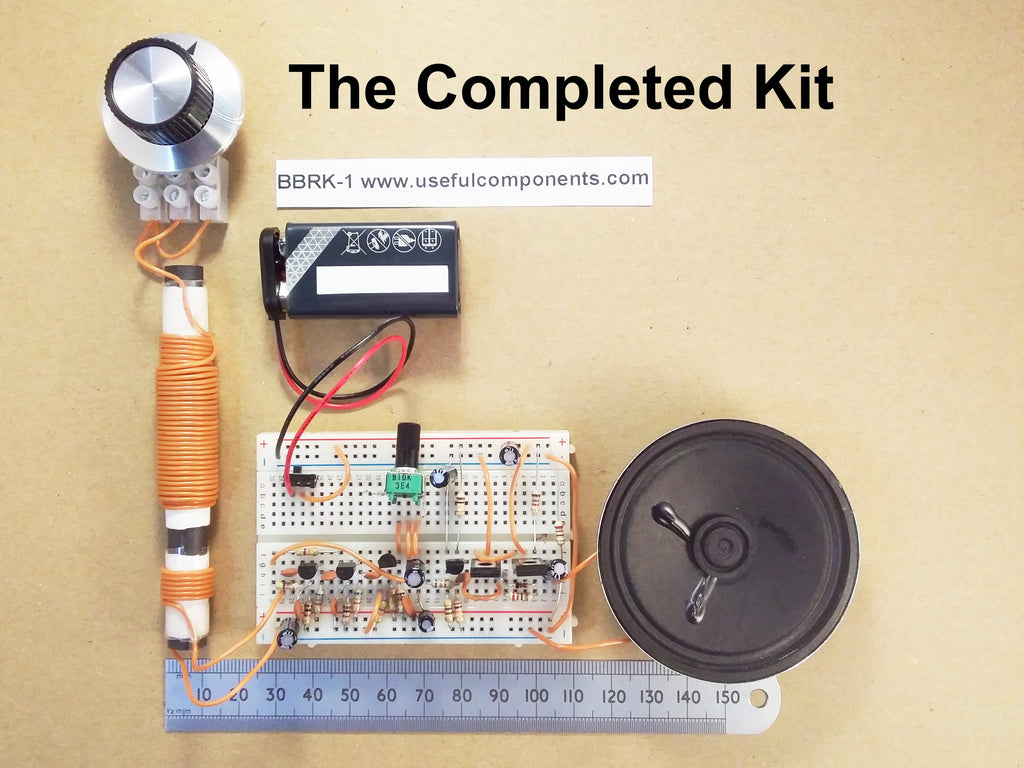

All the build information is provided online so that easy updates can be added. There is no paper documentation supplied. People have had plenty of success with this tried and tested design. If you put the parts in the right places and build as described, you'll have an instant school science project. There are some additional experiments described on the web-page for that bit of extra credit.

Breadboard Radio Modifications And Extras

For the electronics engineers there's also a fully detailed university level circuit description. You don't need to understand all this to make the kit work.

Breadboard Transistor Radio Detailed Circuit Description
