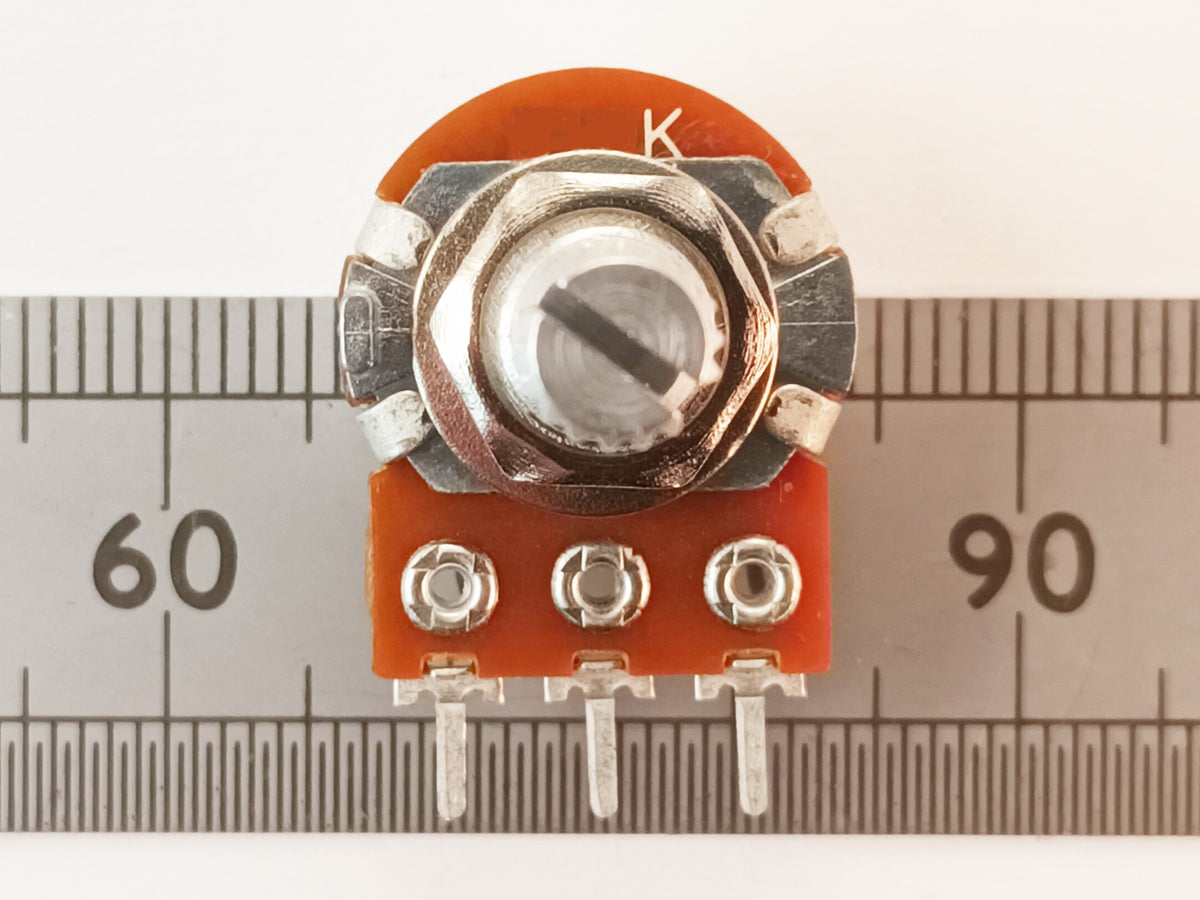

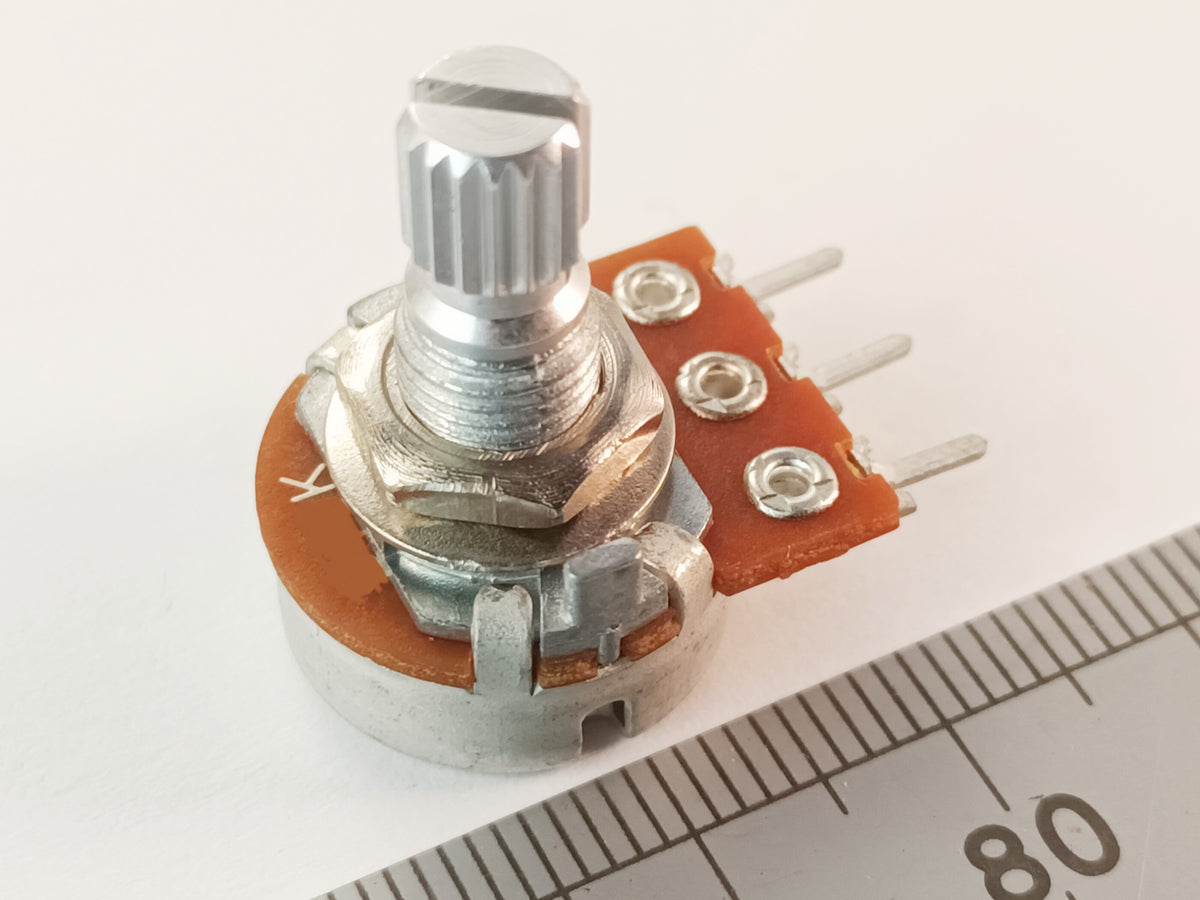

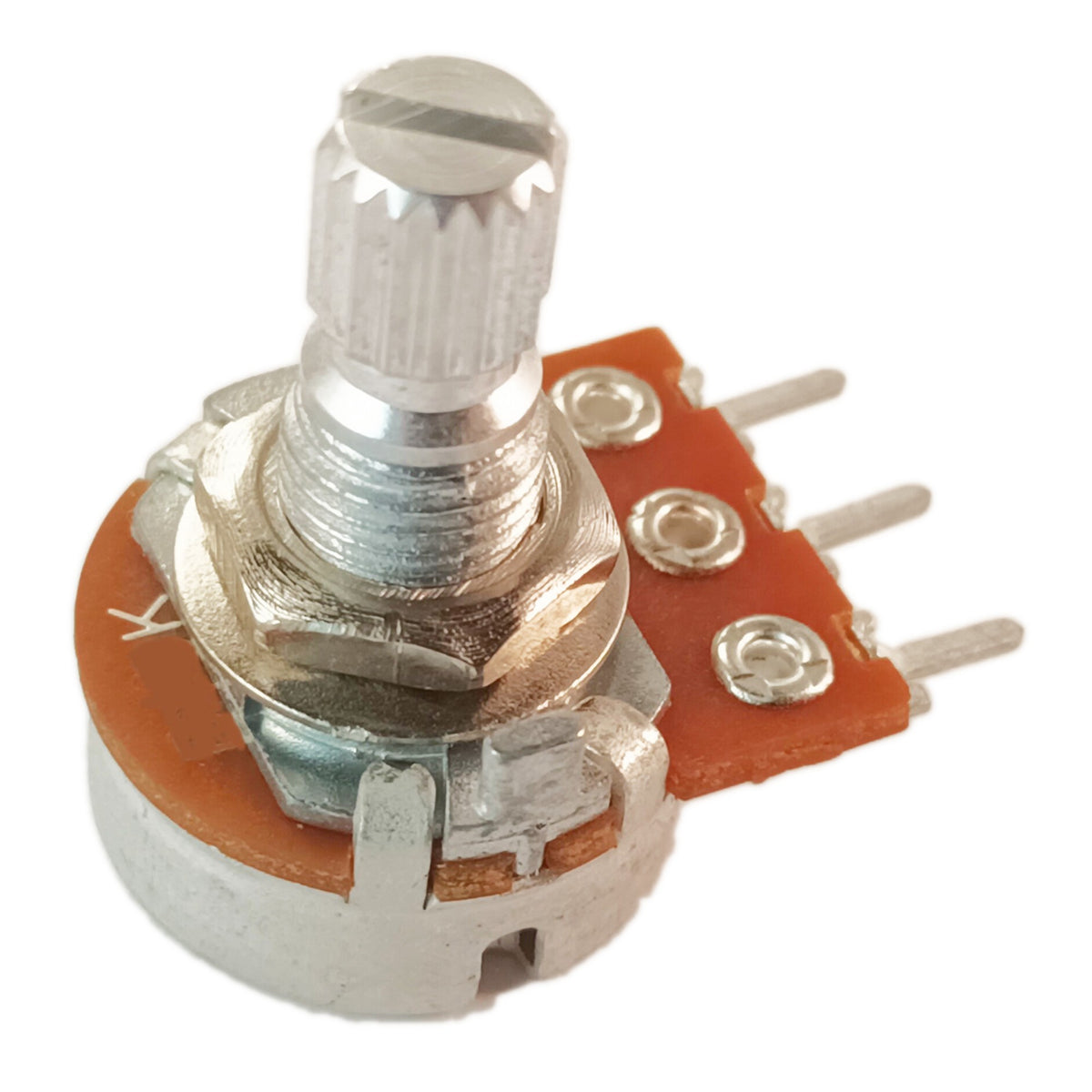

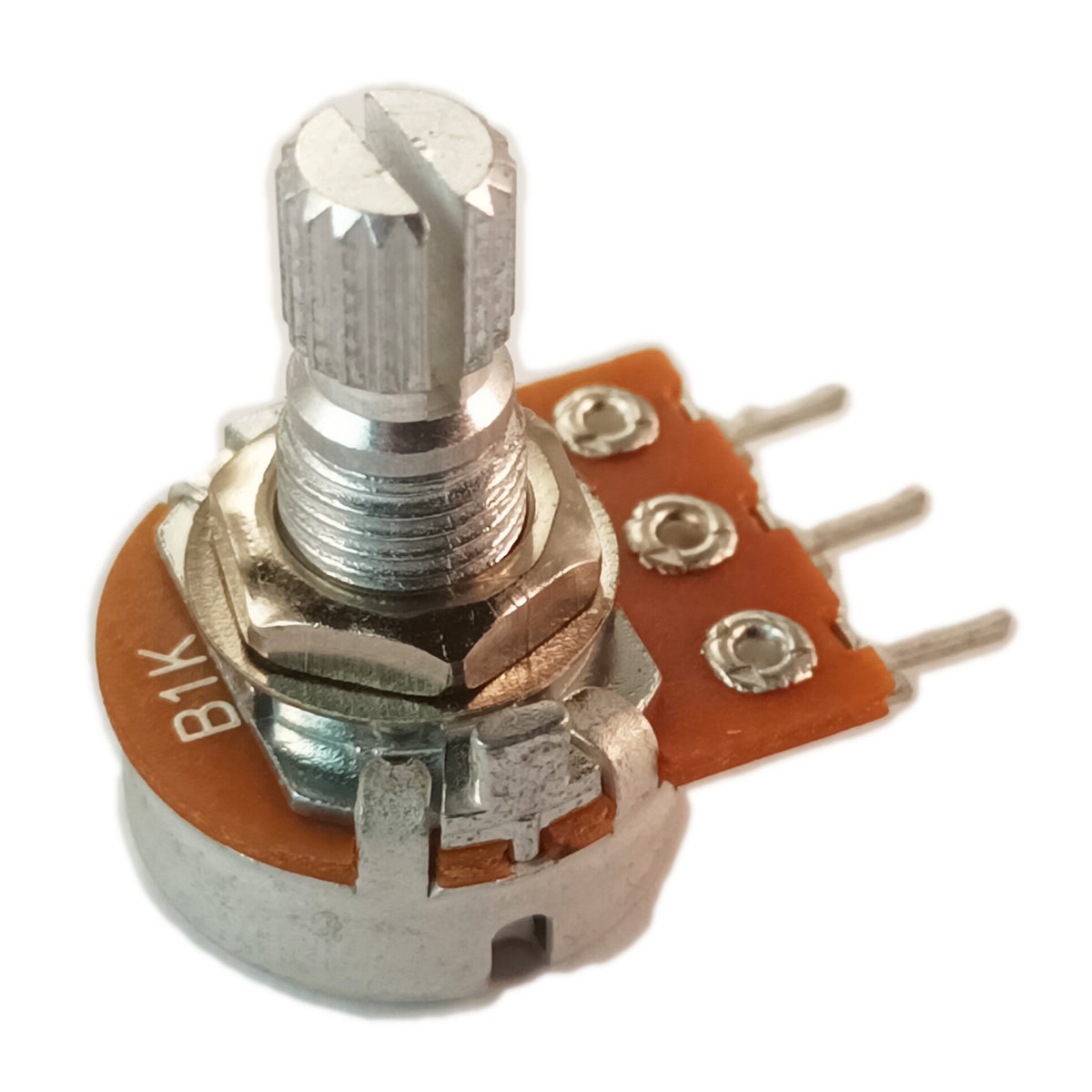

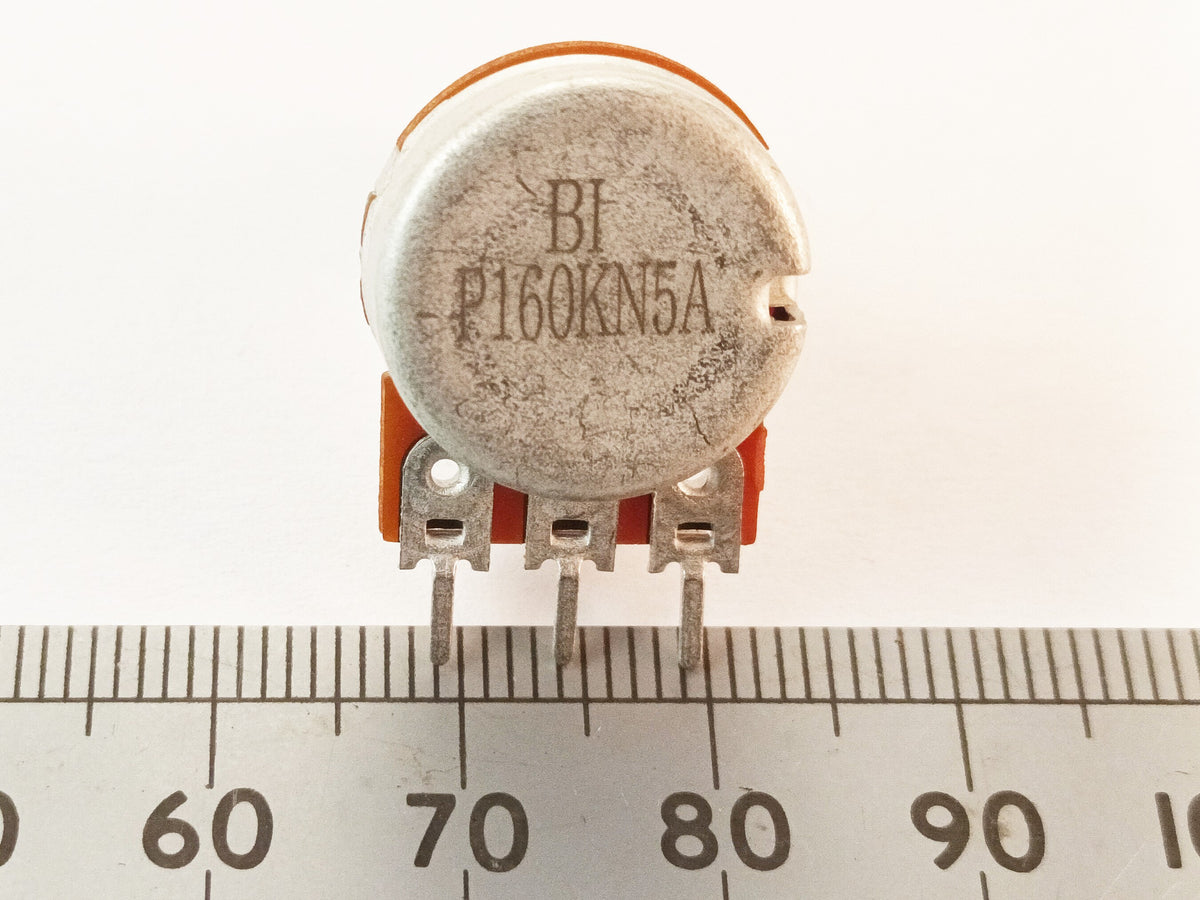

Potentiometer Linear Conductive Plastic Mono Splined Shaft B BIS

This is one item of single gang, linear, rather nice conductive plastic track potentiometer with a rated lifetime of 100,000 rotation cycles.

These are new items and come with a nut and a washer for mounting on a front panel. The splined shaft is 6mm diameter. The mounting hole required is 7mm diameter. The connection pins will allow either PCB mounting or soldered wire connections. The "B" prefix before the track resistance value denotes a linear track taper. The max power rating is 0.2W. The manufacturer is Bourns International.

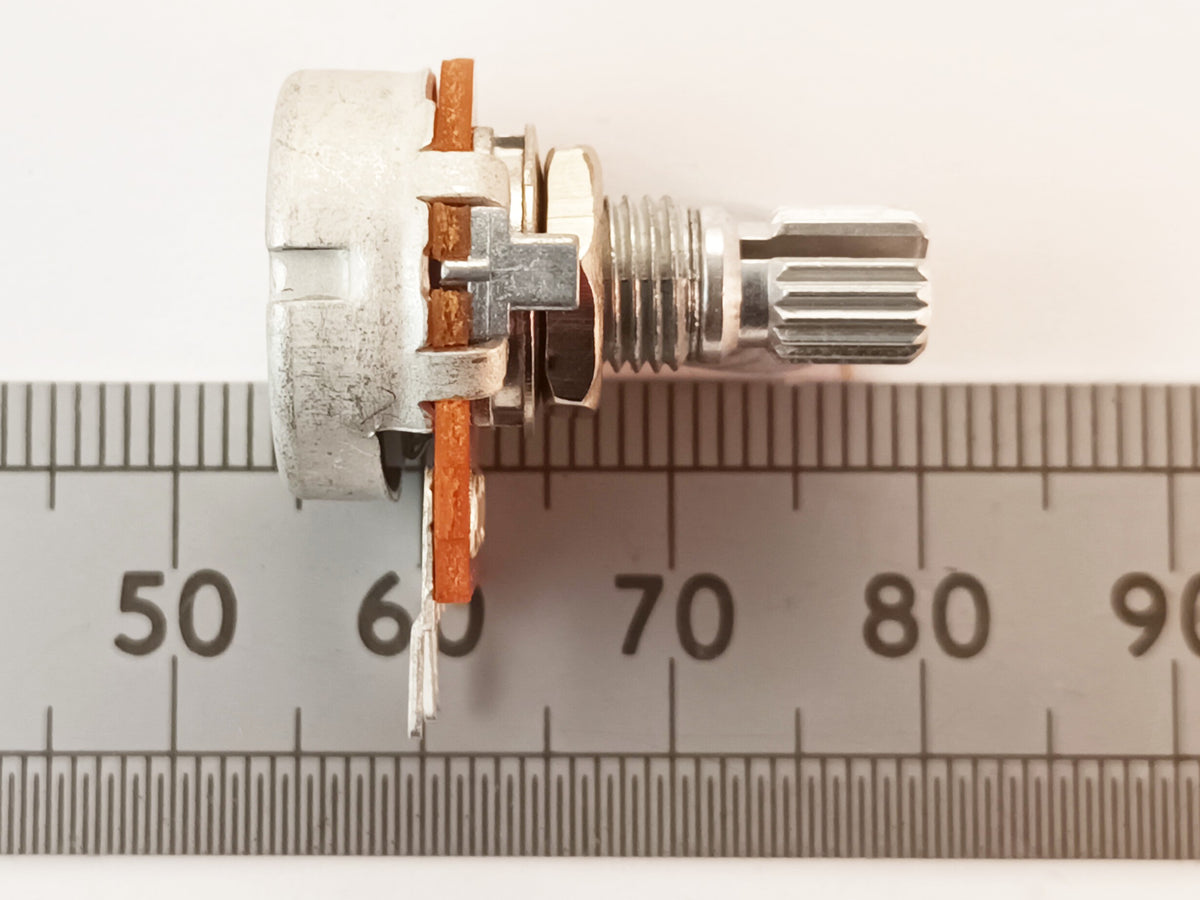

The shaft length on all resistance values of these pots is a total of 15mm, where the threaded part is 6mm long and the turning part is 9mm. This makes them particularly useful for mounting directly into a fairly thin front panel where you might otherwise have to saw off some of the shaft to avoid the knob sticking out too far.
