Potentiometer A5K 41 Detent 17mm Log 5K T18 Splined Shaft Multi Click T18RP41
Pack of 1 Pot
£3.90
Skip to product information

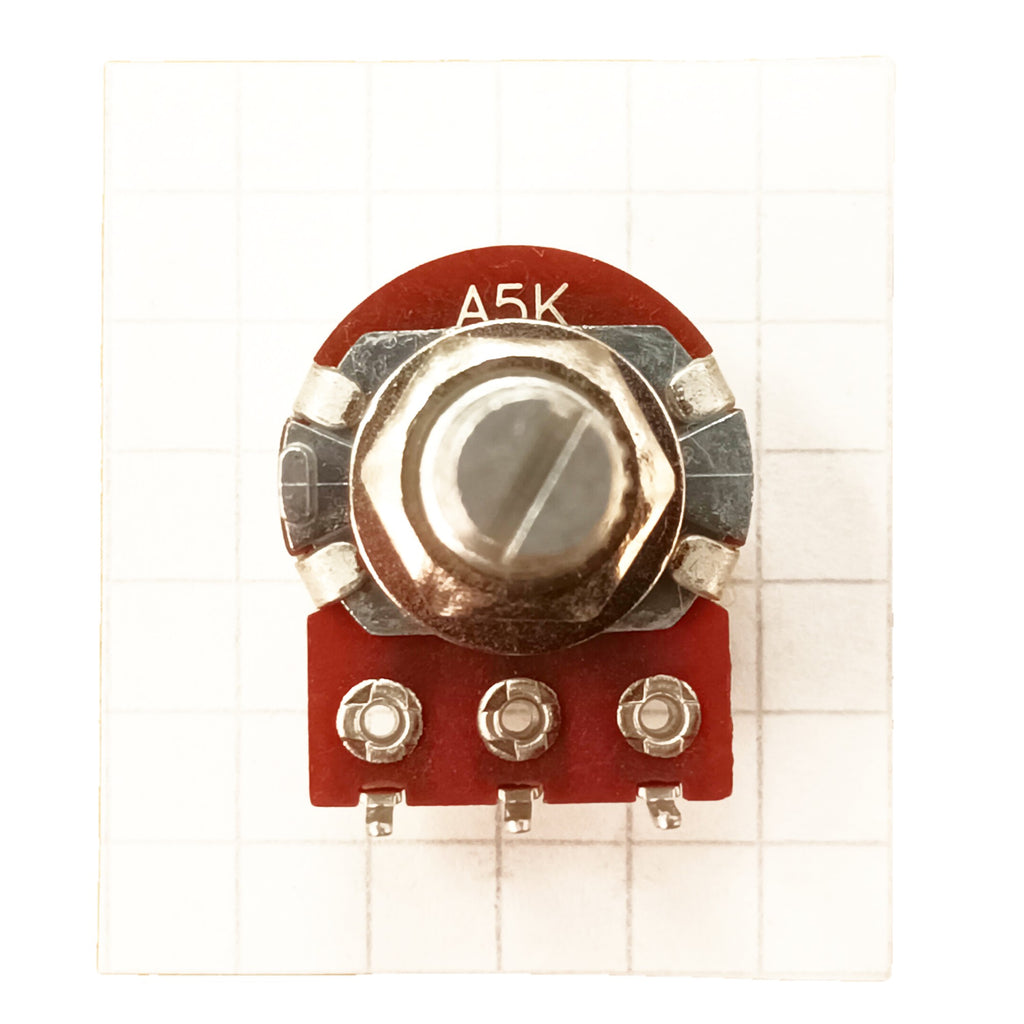

This is one item of new, 17mm body diameter 5K logarithmic audio track pot which has 41 distinct clicks around the travel. The higher pack quantity options are cheaper per item.

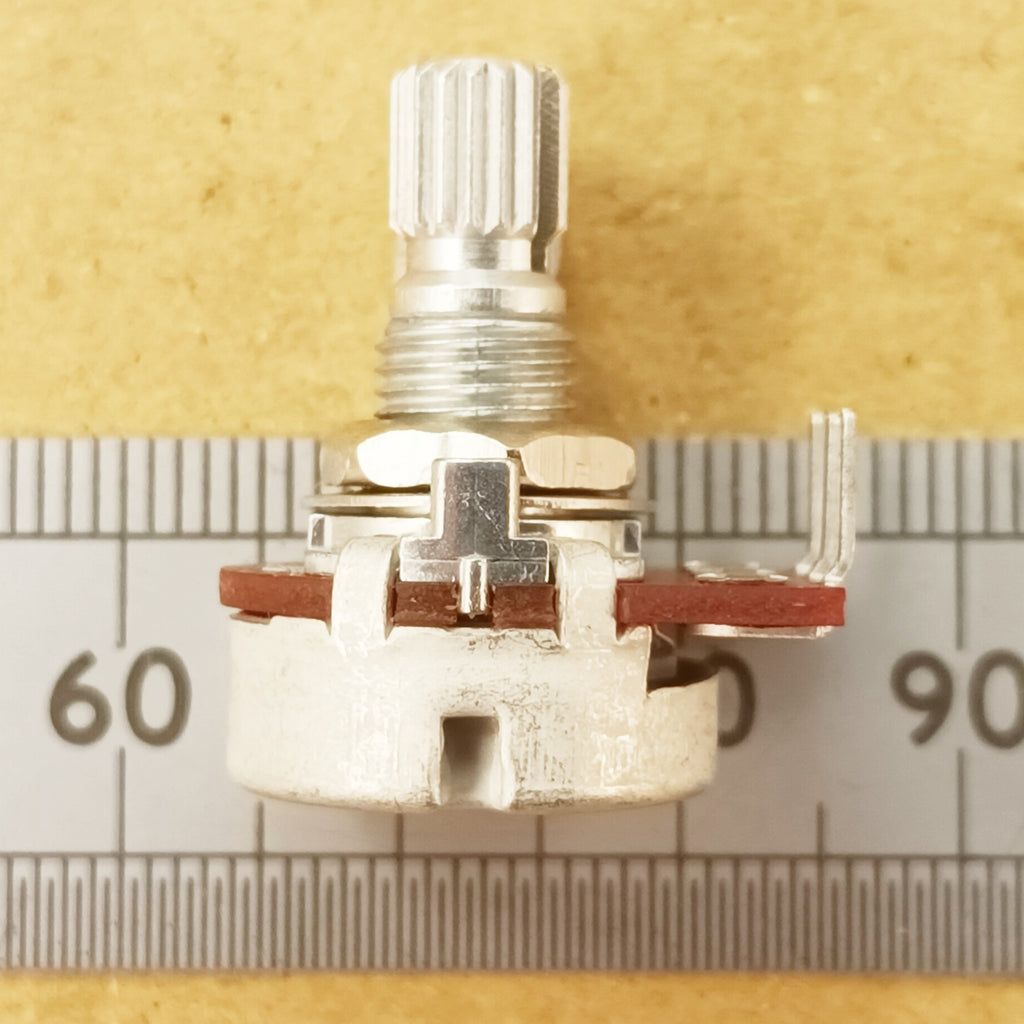

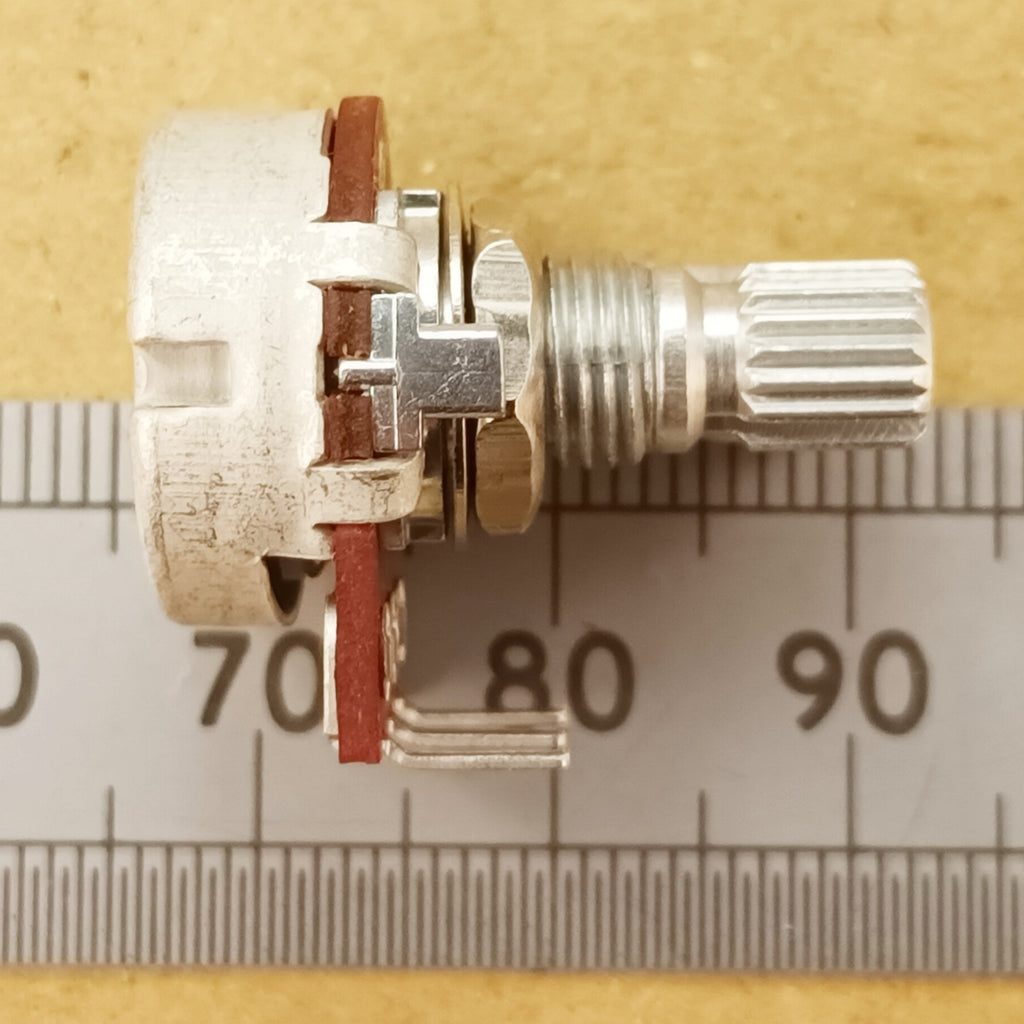

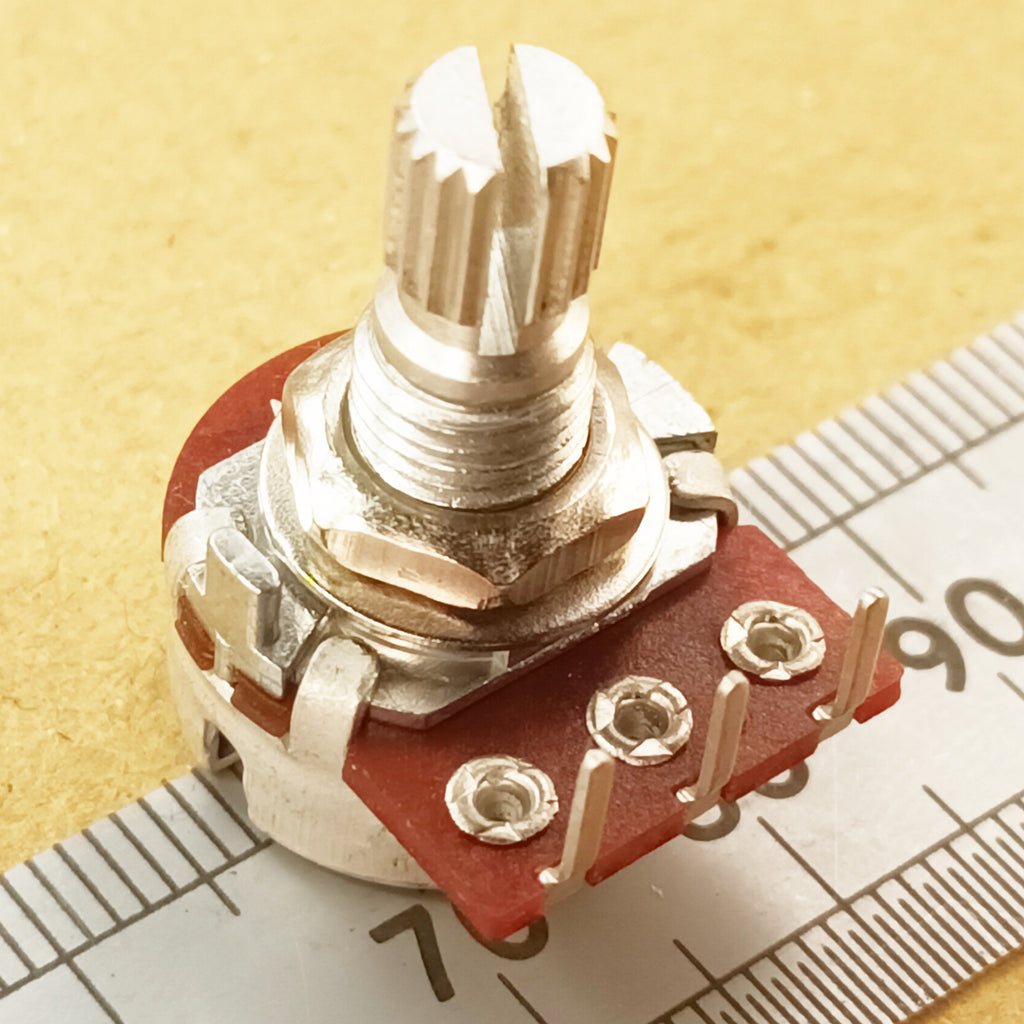

The shaft is a standard T18 split splined / knurled type. The turning part of the shaft is 9mm long, 6mm of this is the knurled part. The threaded section is 6mm long. The rotation angle is 300 degrees. The track is conductive plastic. The PCB pins are supplied bent in the odd direction shown, but it is easy to bend them straight, into the more conventional 90 degree mounting position for fitting to a PCB or for soldering wires to.

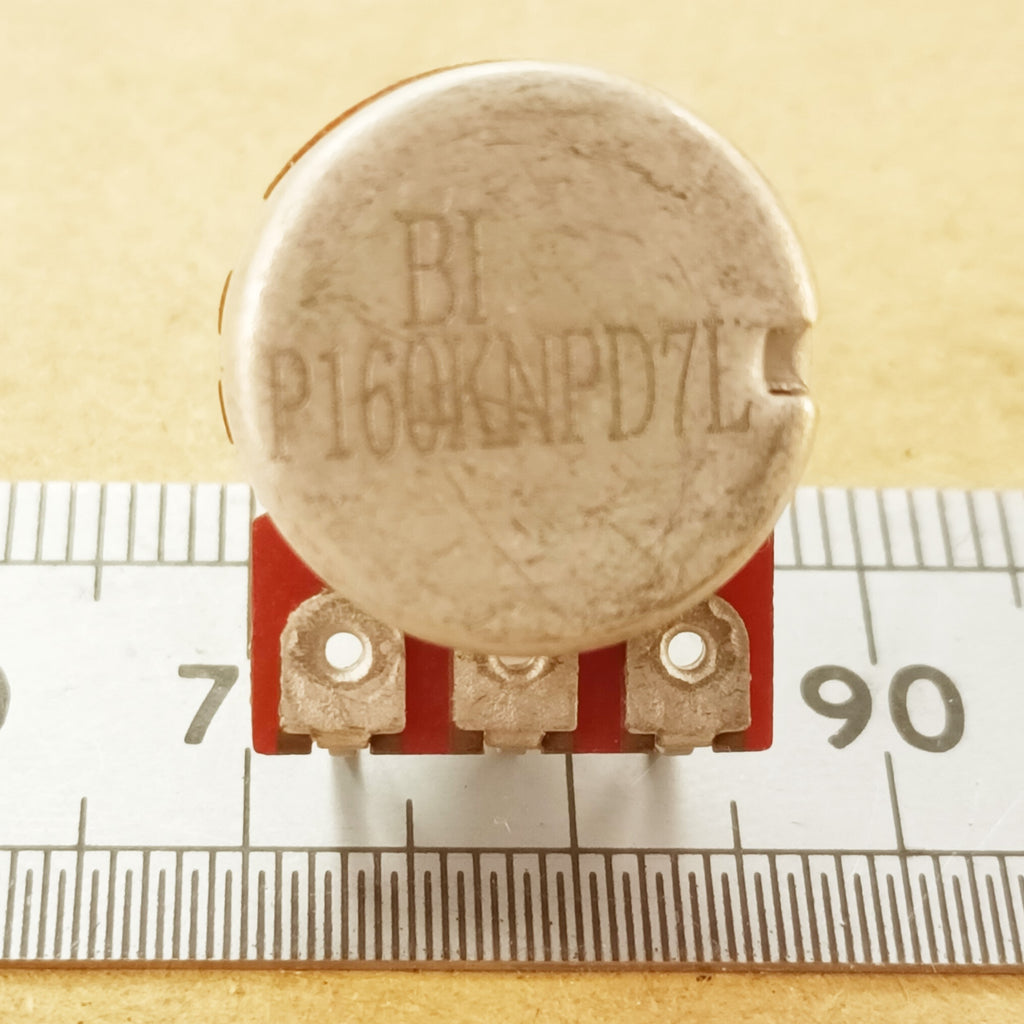

A mounting nut and washer are provided. The mounting hole required is 7mm diameter. The track is +/- 20% tolerance with a power rating of 0.1W. The manufacturer is BI, Bourns International.
Potentiometer A5K 41 Detent 17mm Log 5K T18 Splined Shaft Multi Click T18RP41
£3.90
The shaft is a standard T18 split splined / knurled type. The turning part of the shaft is 9mm long, 6mm of this is the knurled part. The threaded section is 6mm long. The rotation angle is 300 degrees. The track is conductive plastic. The PCB pins are supplied bent in the odd direction shown, but it is easy to bend them straight, into the more conventional 90 degree mounting position for fitting to a PCB or for soldering wires to.
A mounting nut and washer are provided. The mounting hole required is 7mm diameter. The track is +/- 20% tolerance with a power rating of 0.1W. The manufacturer is BI, Bourns International.
