Passive Ring Modulator Kit LT44 Transformers And BAT48 Schottky Diodes

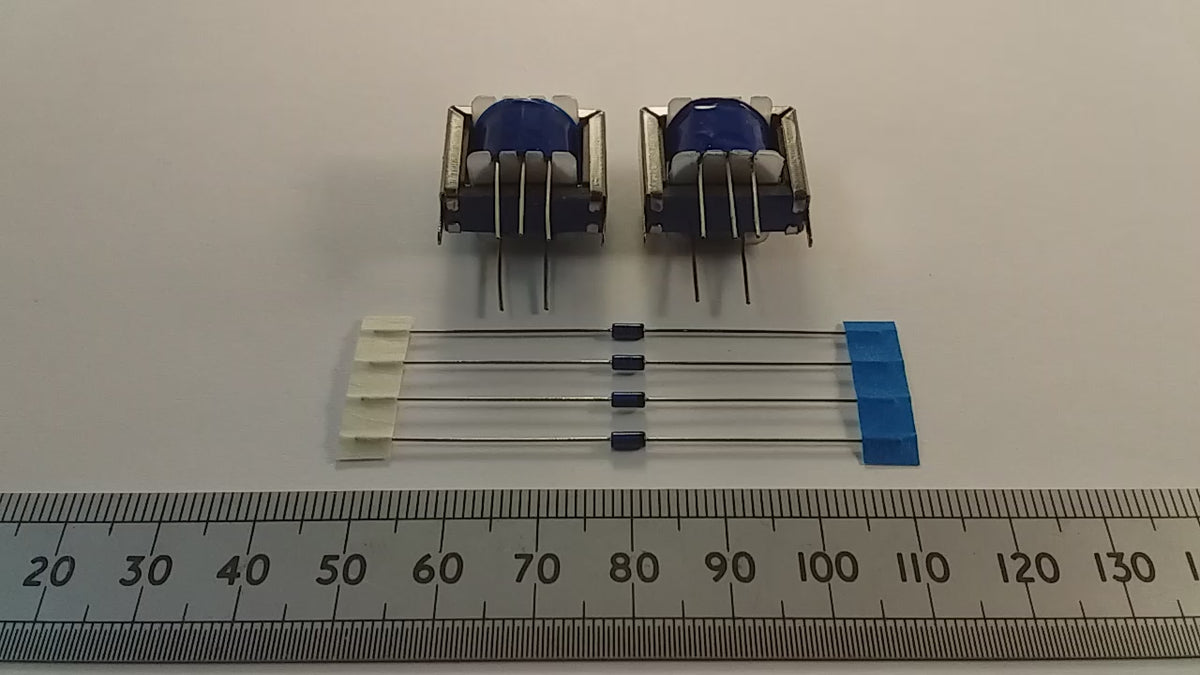

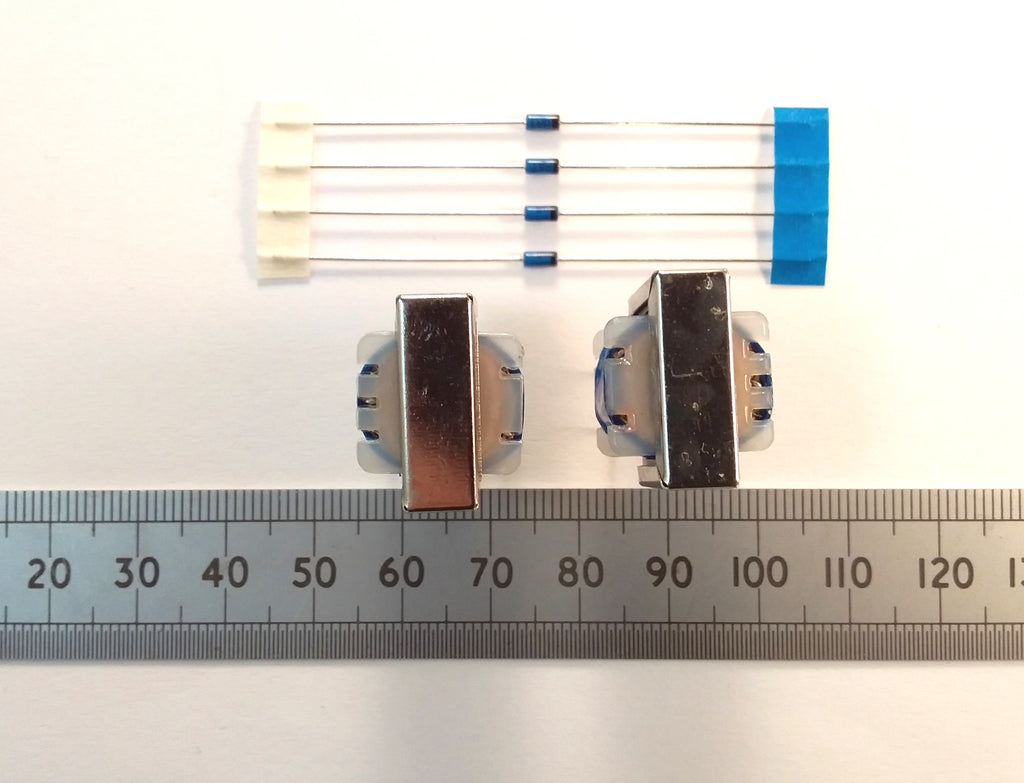

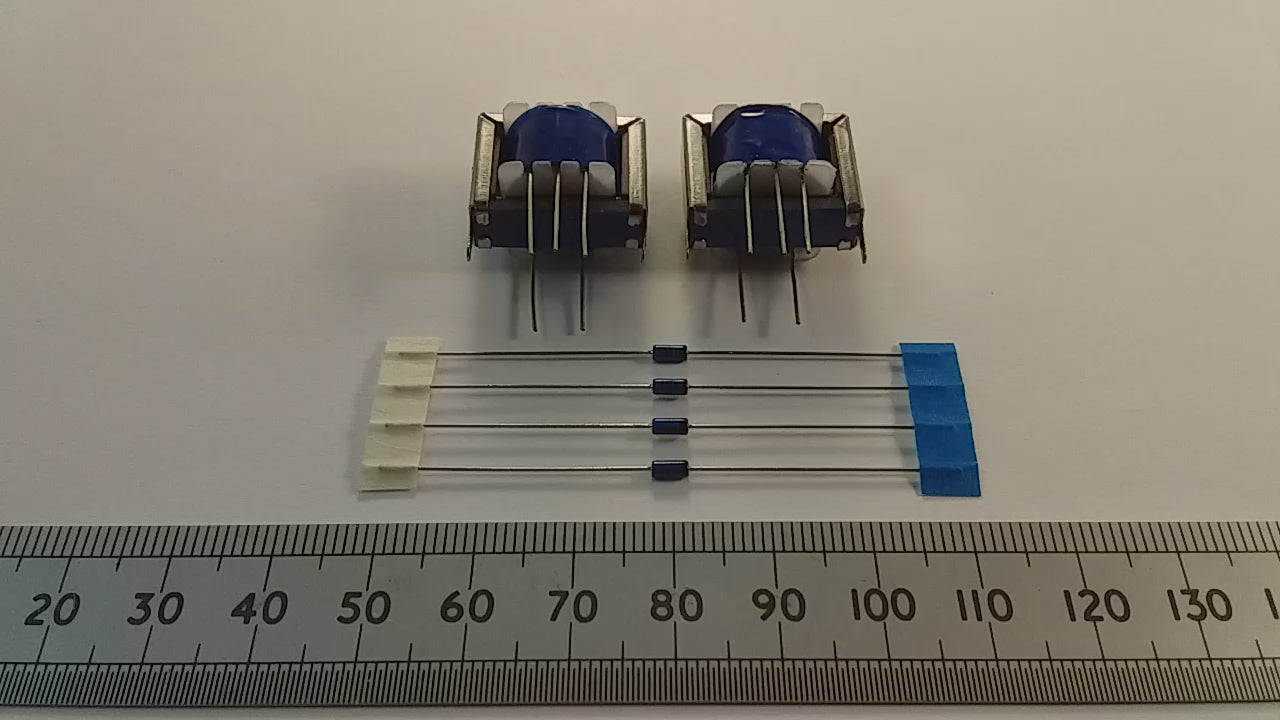

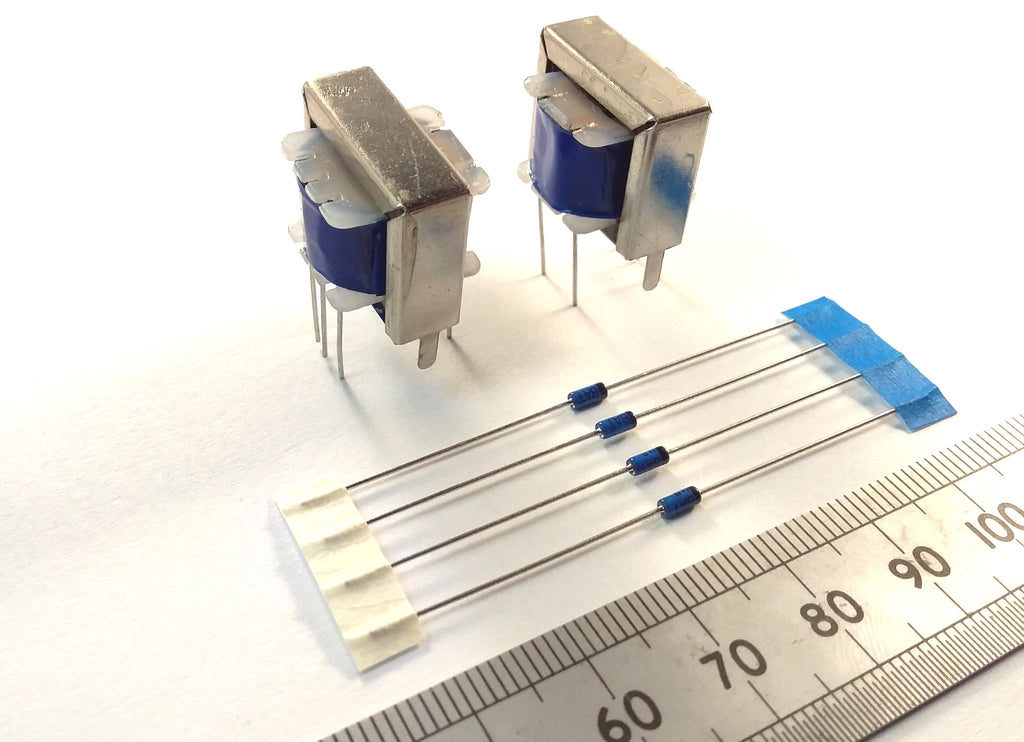

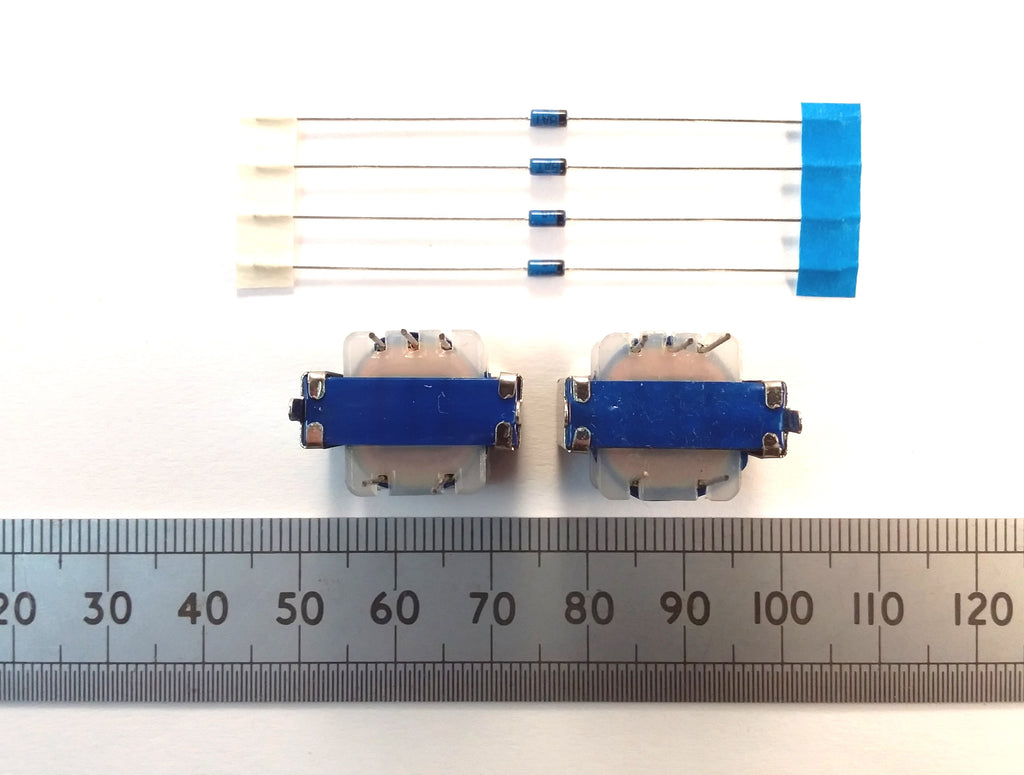

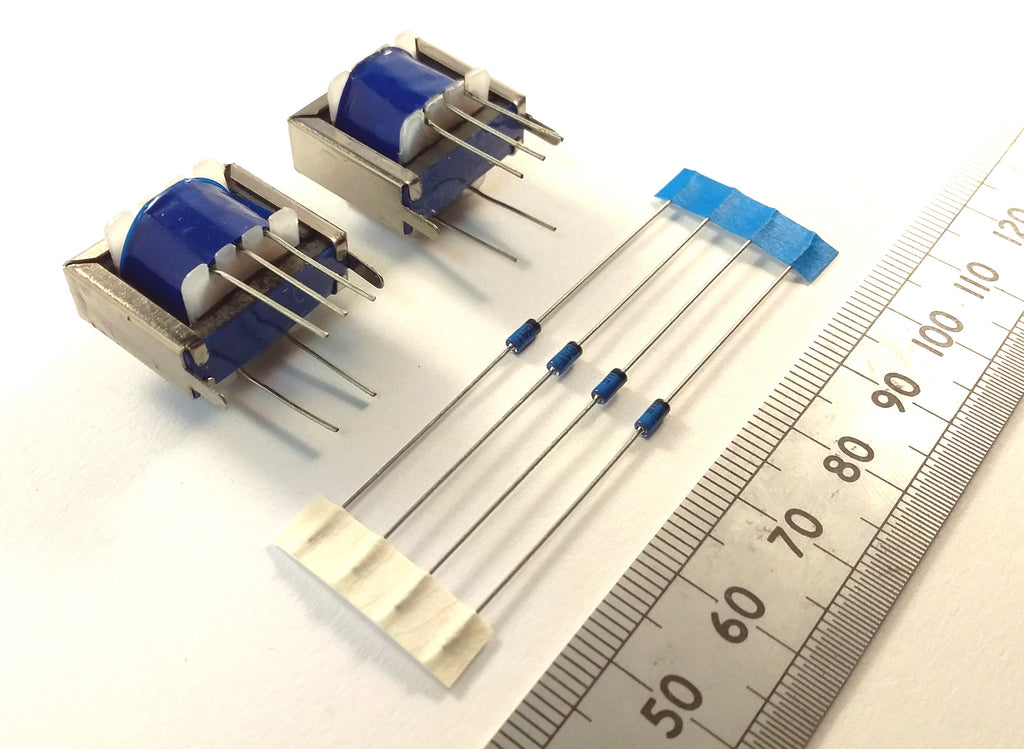

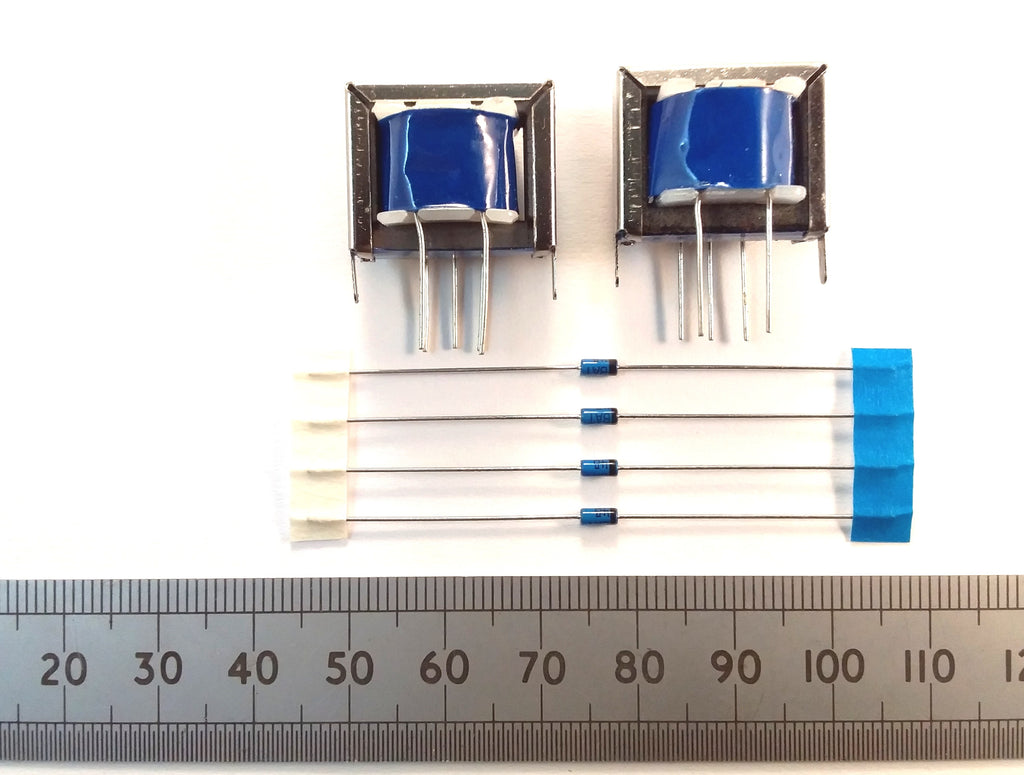

Passive Ring Modulator Kit Of Parts 2X LT44 Transformers and 4X BAT48 Schottky Diodes

This is a kit of electronic parts which allows you to build a transformer and diode ring modulator which can be used to make dalek voices or analog synth / guitar effects as detailed on the Useful Components "Choccy Block Simple Ring Modulator," web-page.

Simple Ring Mod: A No-Soldering Diode and Transformer Ring Modulator Kit

Bill Of Materials:

Electronic Parts Included in the Kit

Qty Refs Type Value

2 L1,L2 Transformer LT44
4 D1,D2,D3,D4 Schottky Diode BAT48

Another project that uses a similar core circuit is shown here:

Portable Dalek Voice Modification Ring Modulator Circuit
