Dashboard Rocker Switch 12V Illuminated SPST 15A D.C. Red Yellow or Green
Red
£3.80
Skip to product information

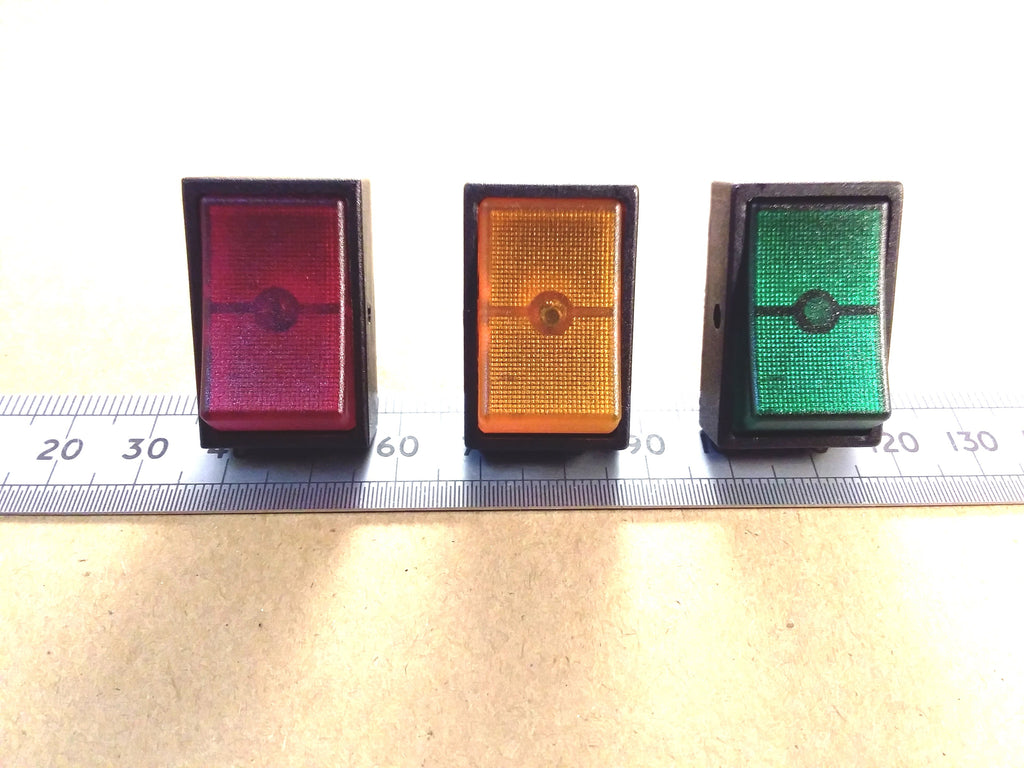

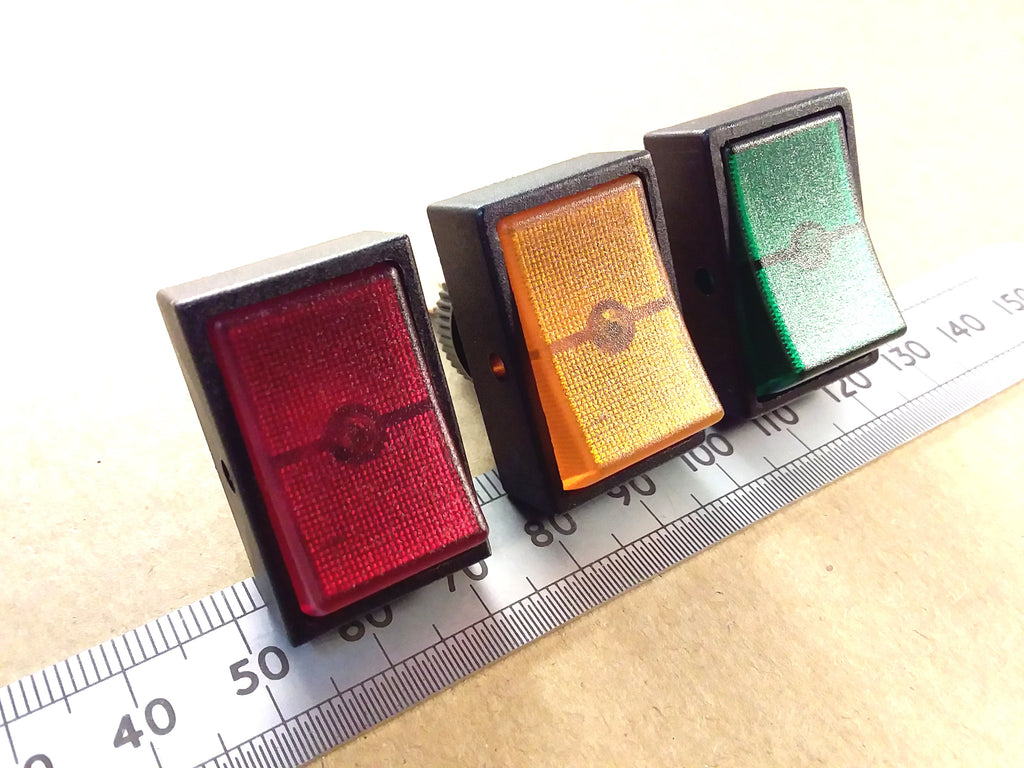

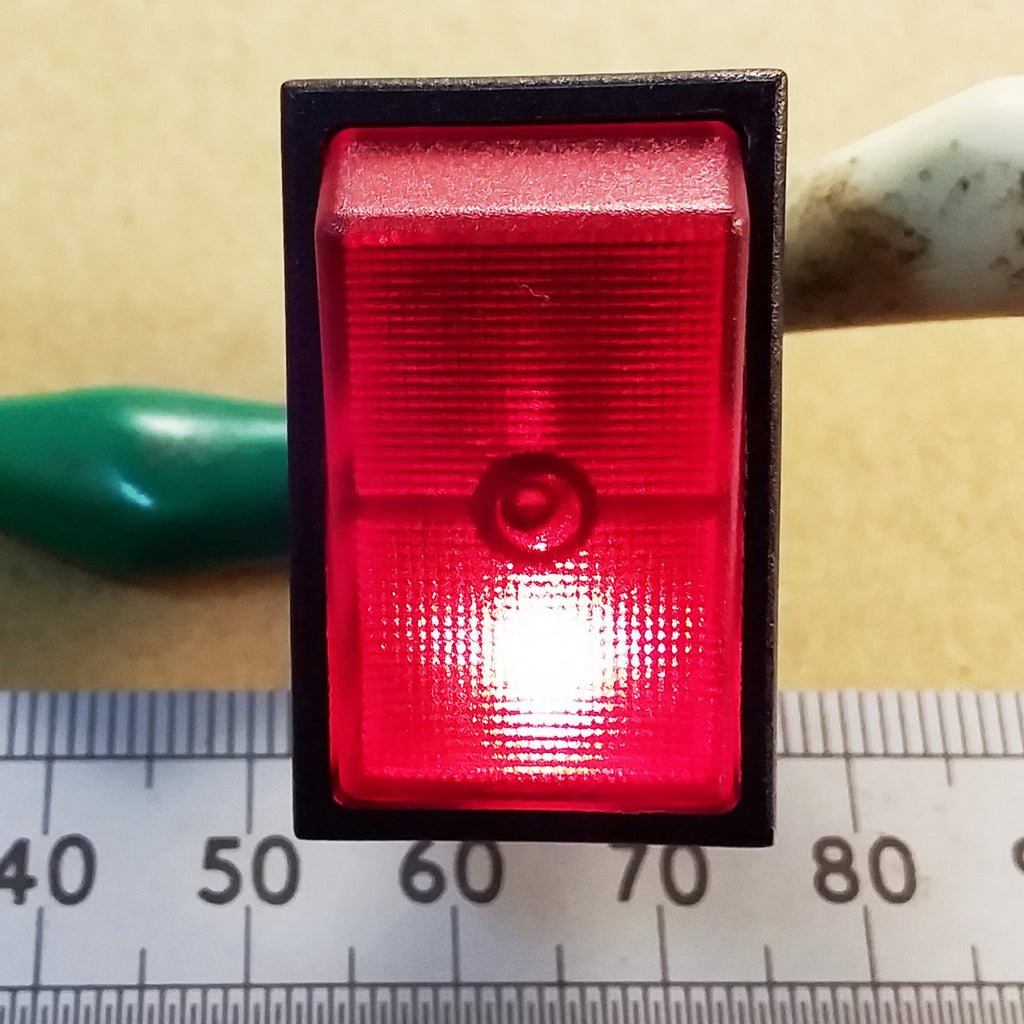

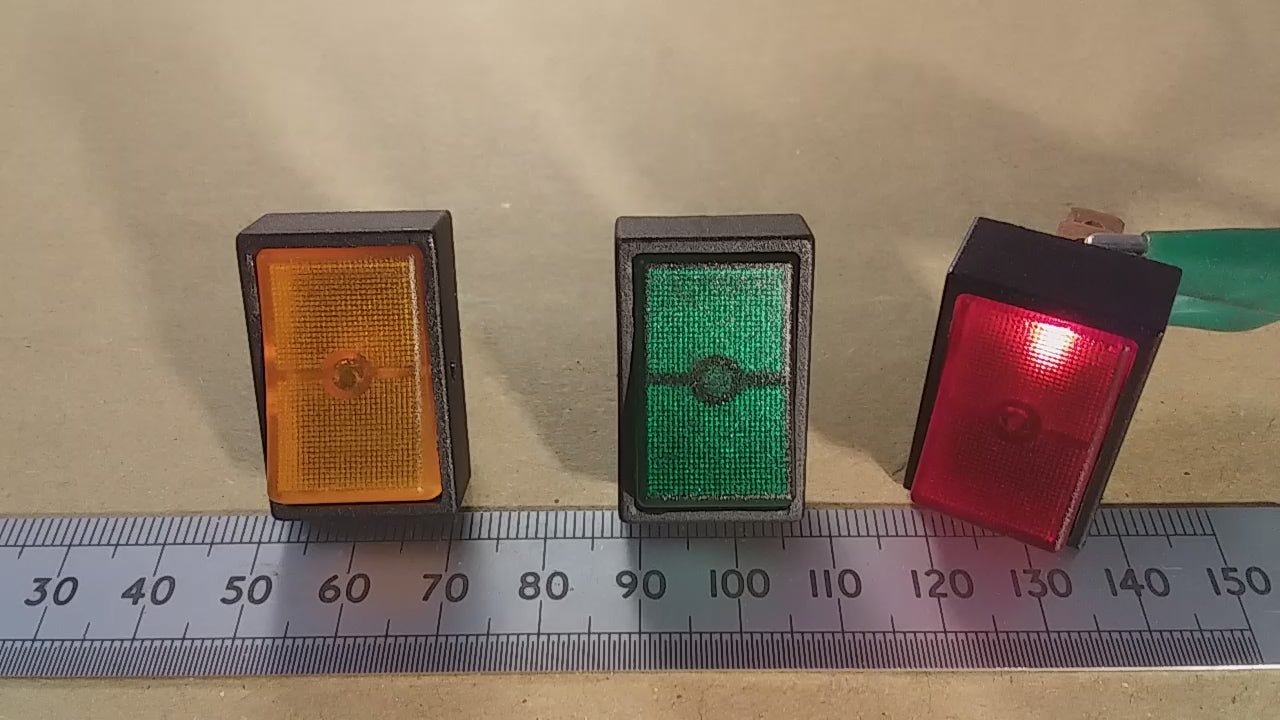

This is one item of new rocker switch which contains a 12V filament bulb behind the coloured rocker. This illuminates when the switch is on. This is available in red, yellow, or green. The higher pack quantity options are cheaper per item. If you would like to mix the available colours in a pack, please use the MIX option and send me a message with your requirements, or add a note to the purchase.

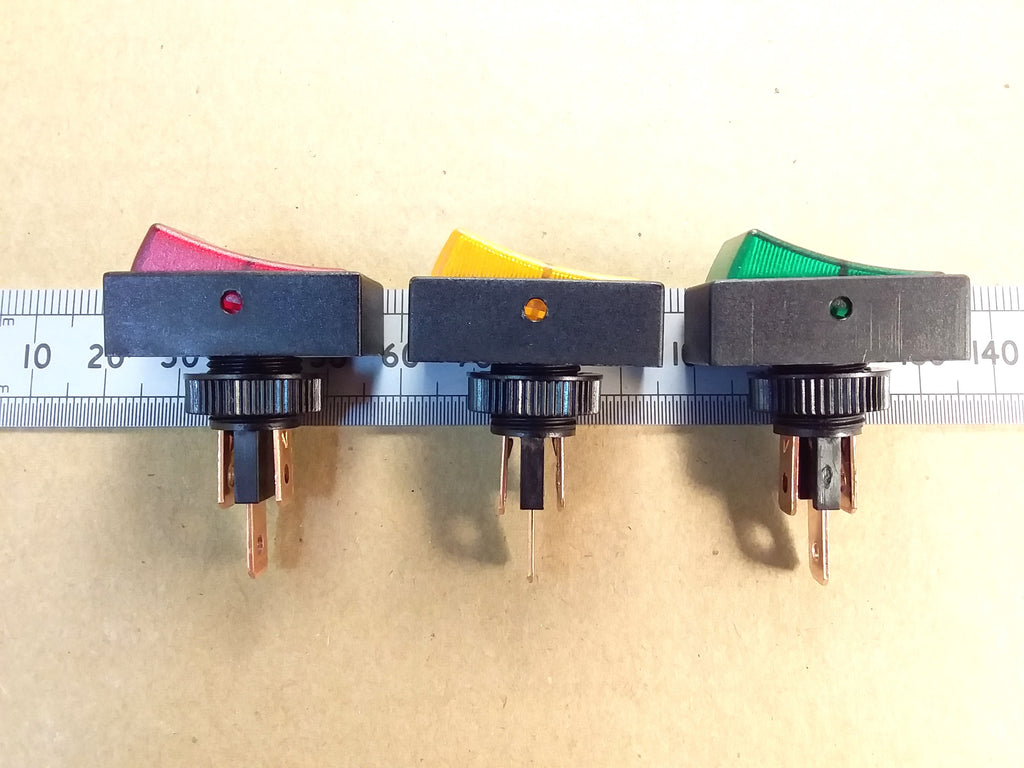

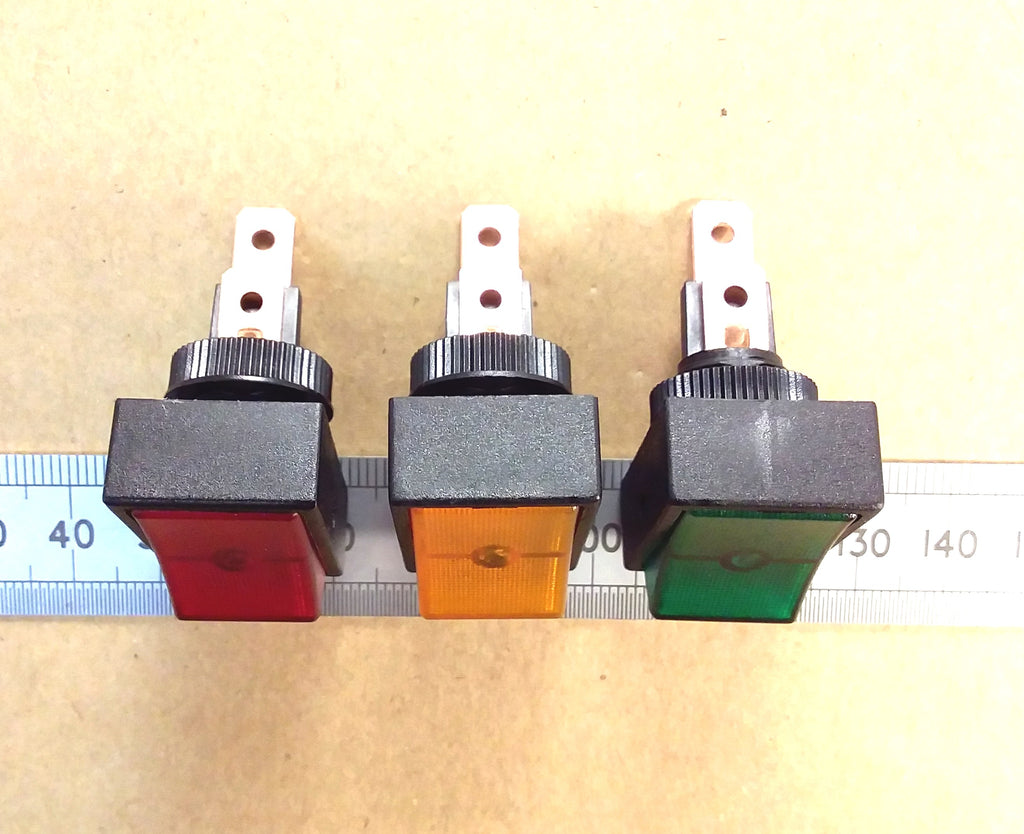

The outer dimensions are 19 X 30 X 43 mm deep including the connection spades. The rear part including the spades extends 28mm behind the panel.

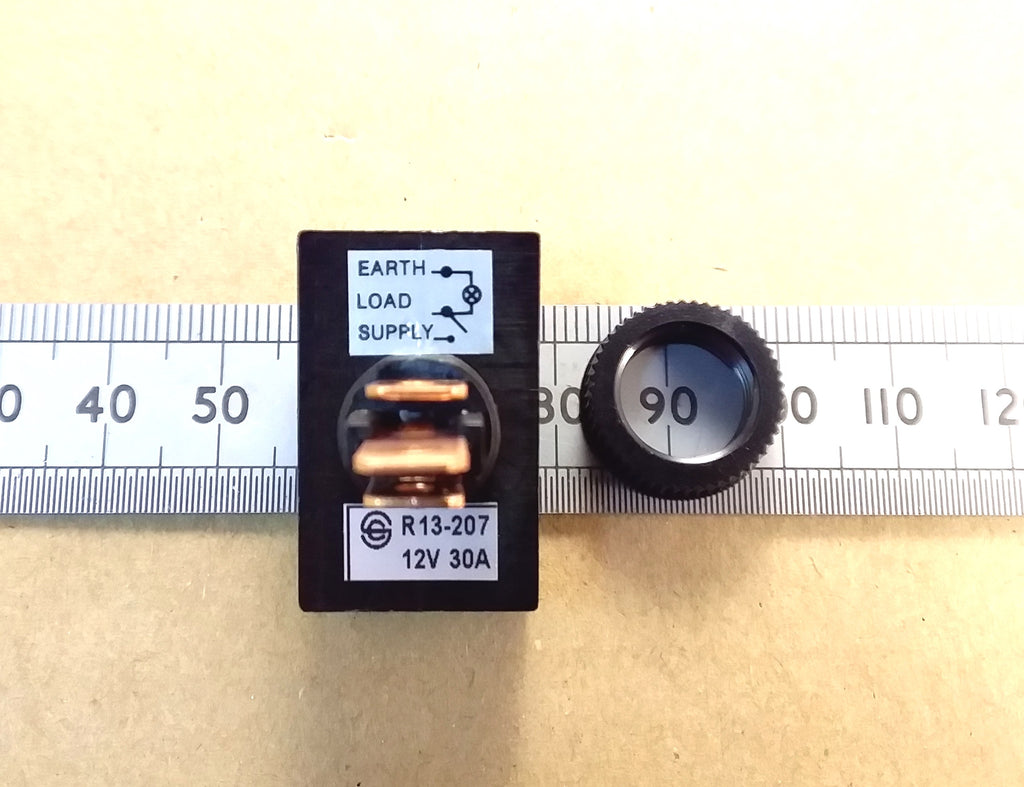

The circular mounting hole required is 12mm. The terminals are 6.3mm spade connections which you could also use as solder connections with some quick soldering. The bulb is connected to the load and earth terminals, so a connection to ground is required as well as to the positive supply. The rating claimed is 30A at 12V for a purely resistive load, though I would be inclined to limit this to 15 Amps. The bulb current is 50mA at 12 Volts.
