Control Knob 19mm Movable Pointer Cap 6mm Metric D Shaft K21 D60

This is one item of new mixer / radio volume control knob which has a removable coloured cap with an indication line. One item is the knob and the cap. This listing is for the 6.0mm metric D shaft fitting type. These particular parts will *not* fit on 6.35mm true quarter inch D-shafts. Those are available on another listing. The moveable cap can be particularly useful on the D-shaft pots where the relationship between the flat on the shaft and the wiper position is not always standard, resulting in a replacement knob with a fixed pointer line pointing in the wrong direction on a marked scale.

I try to keep all the different cap colours in stock, something which you may not find elsewhere.

Dimensions:

Height: 19mm
Skirt Diameter: 19mm
Top Diameter: 15mm
Cap Outer Dia: 13.2mm
Cap Inner Dia: 9.2mm

Five different shaft fittings are available in total, four on other listings.

4.0mm Round Shaft with a fixing Screw. K21 R40S
6.0mm Round Shaft with a fixing Screw. K21 R60S
6mm T18 Splined Shaft push fitting. K21 T18
6.0mm metric D Shaft push fitting. K21 D60 - This listing
6.35mm 0.25 inch D-shaft push fitting. K21 D635

I recommend a dab of glue to permanently fix the cap when fitting is complete.

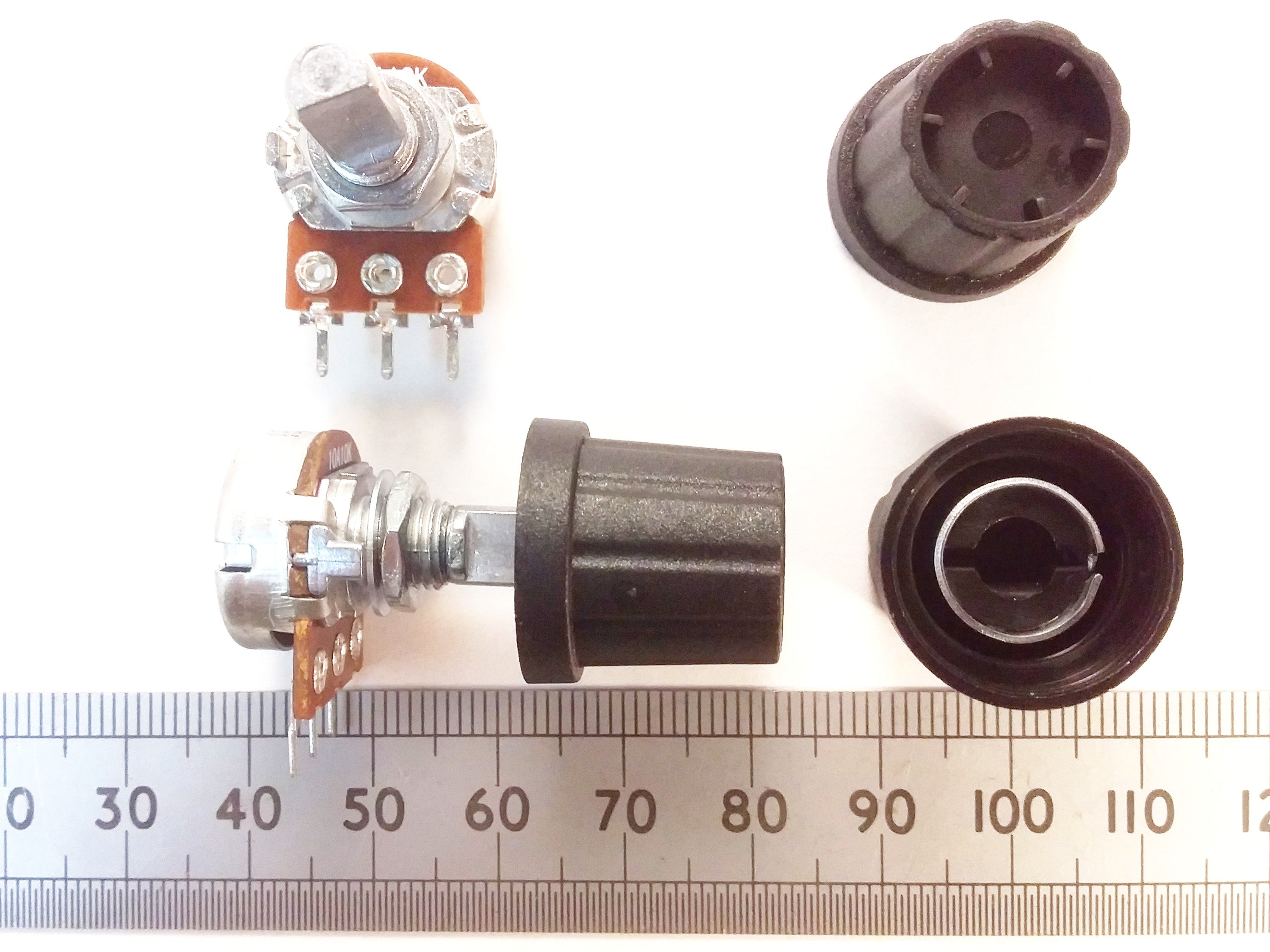

The various pots are shown as an example of use only. Different pack sizes are available. The available cap colours are black, red, orange, yellow, green, blue, grey, and white.
