Air Spaced 600pF Variable Tuning Capacitor Dual Gang 1200pF
£15.90
Skip to product information

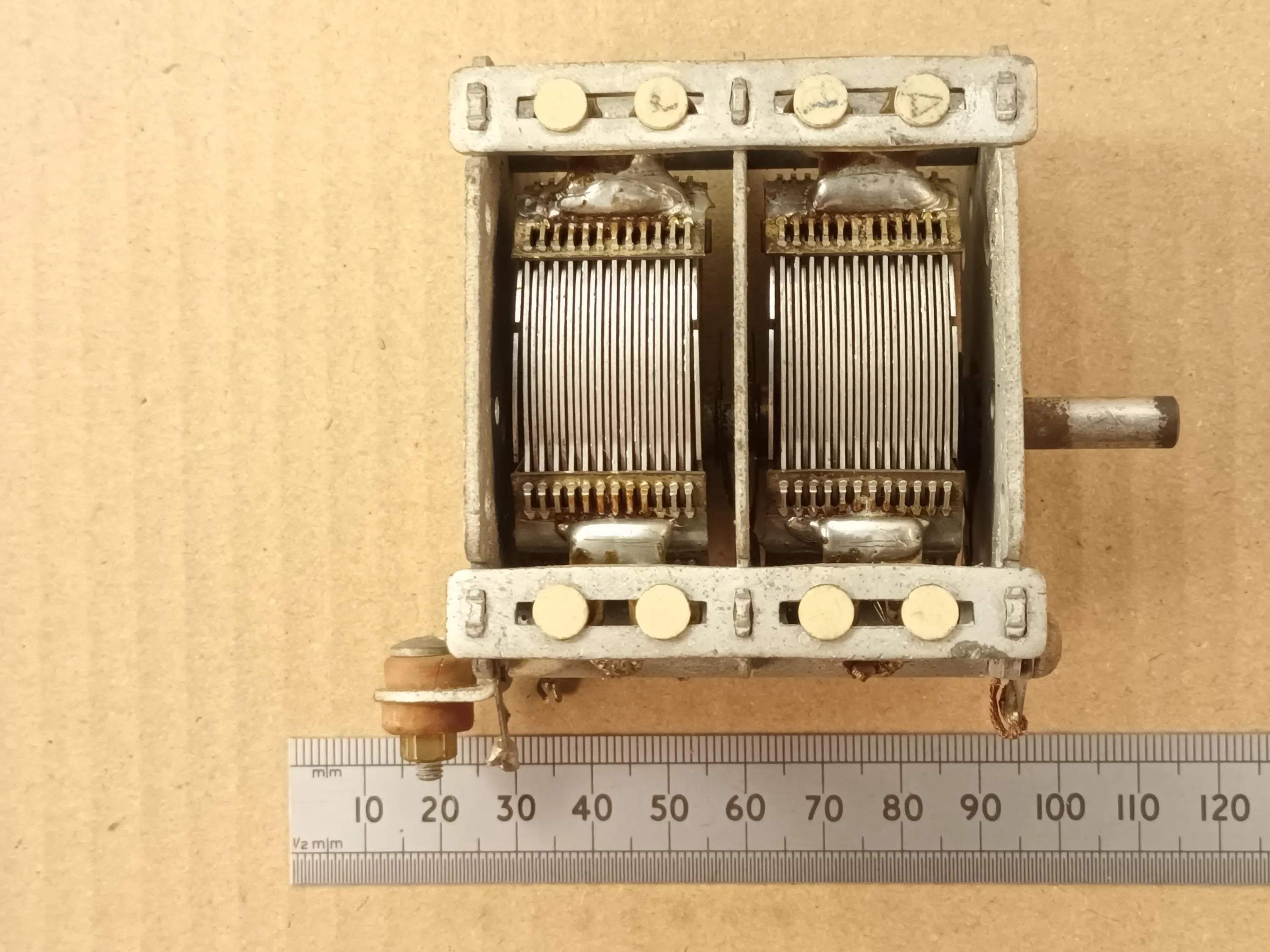

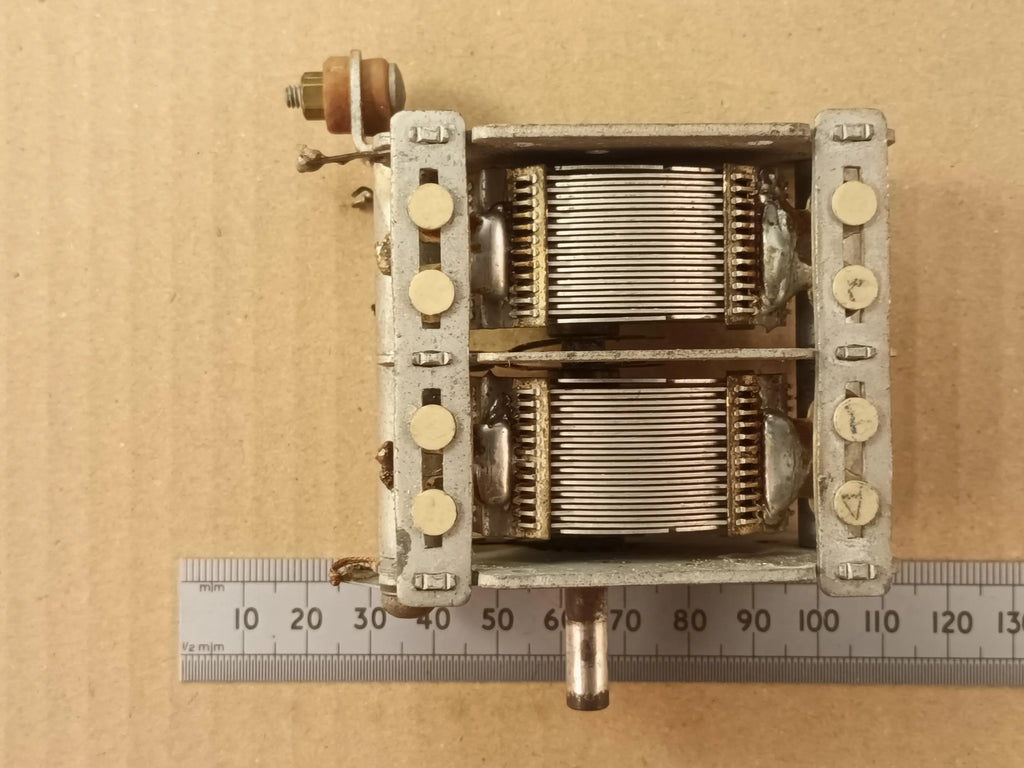

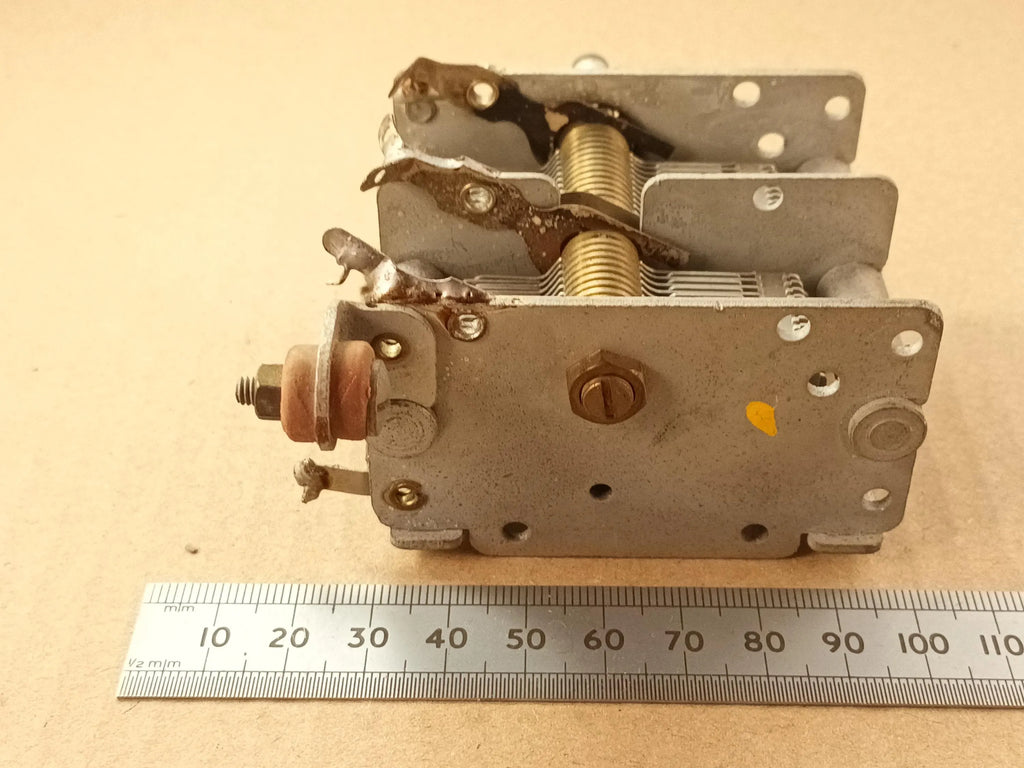

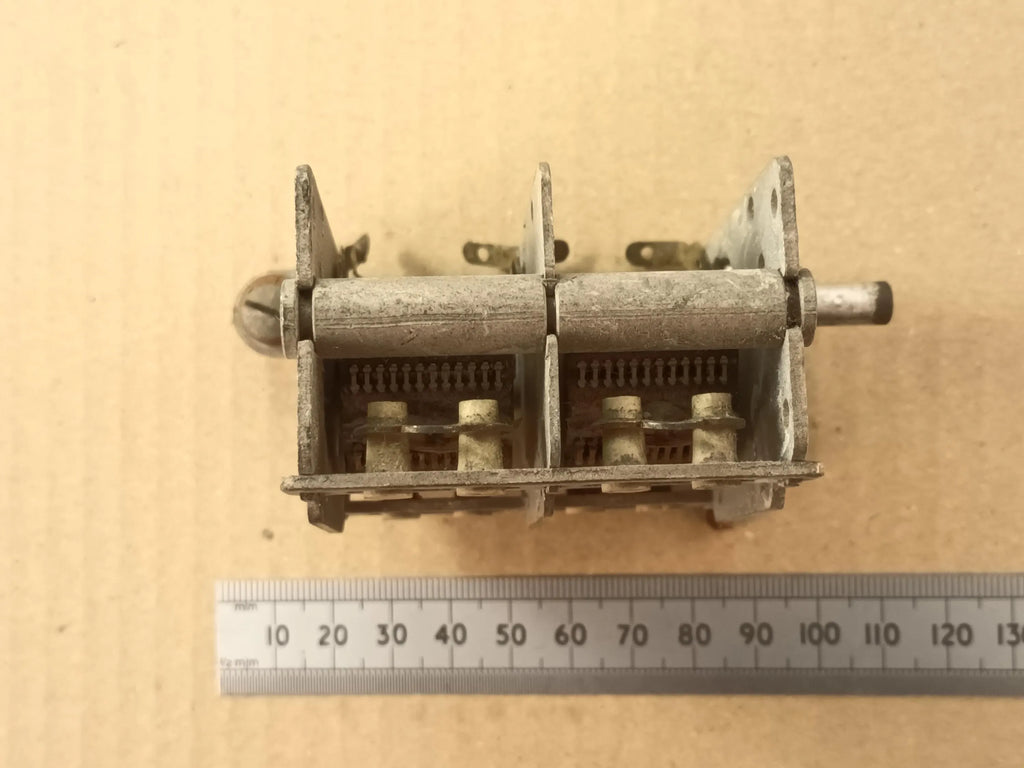

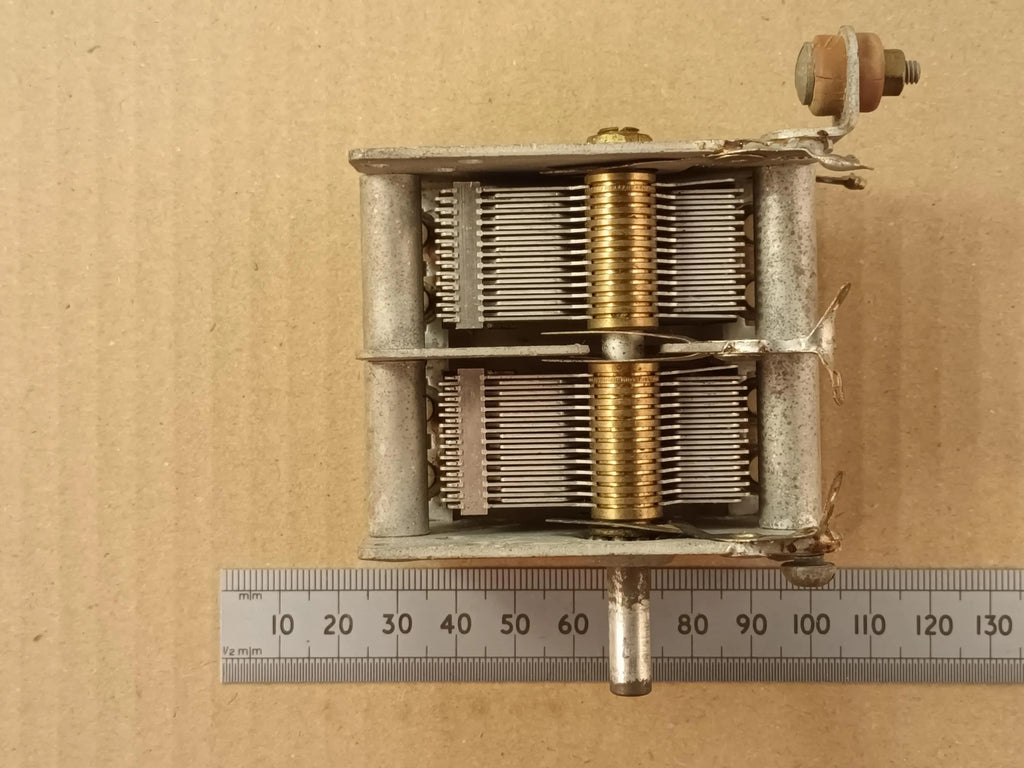

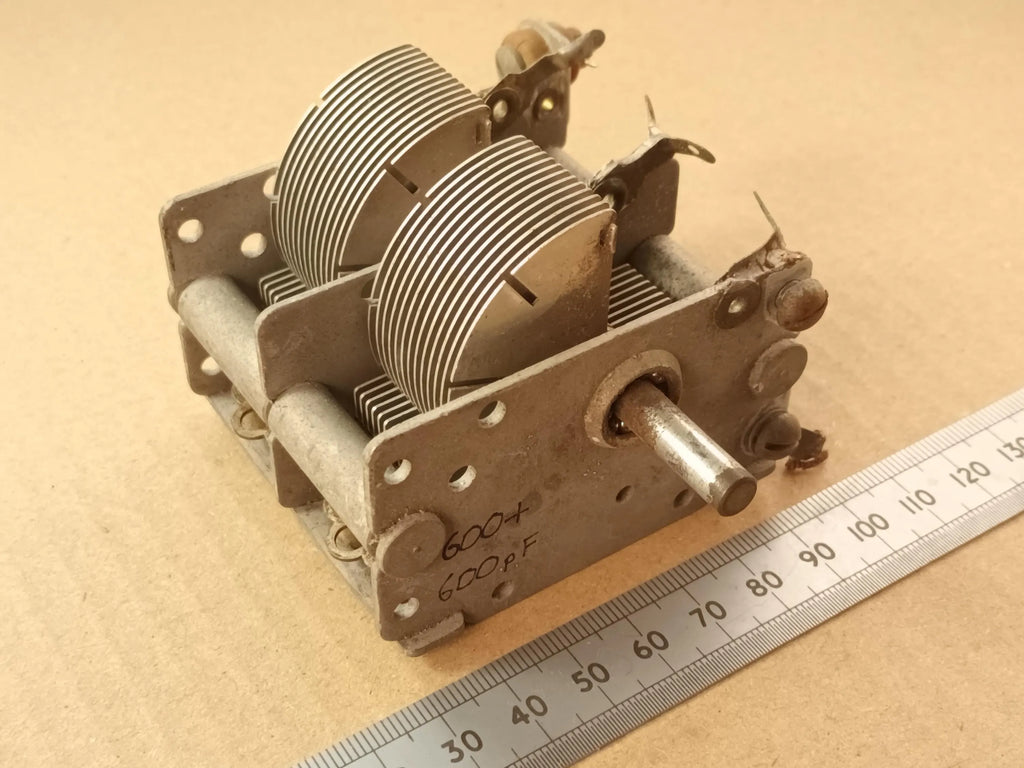

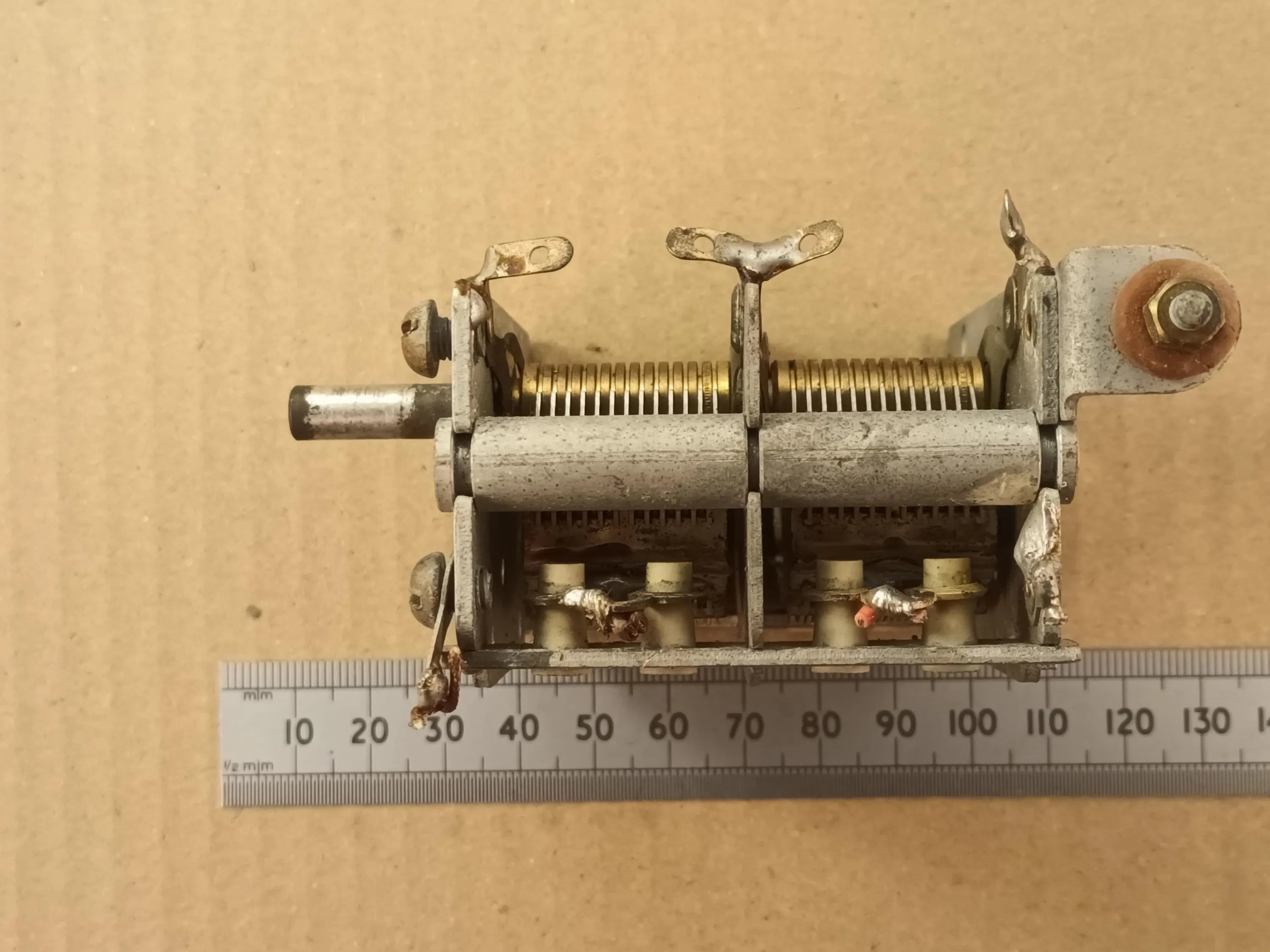

This is one item of used air spaced variable capacitor recovered from a 1960's valve radio. The actual item is shown. It has been tested for shorts and the capacitance value. It is a dual capacitor with two sections of 600pF. When connected together, the total maximum capacitance is 1200pF. The minimum capacitance of each section is approximately 15pF. The turning shaft is 20mm long and is 0.25" 6.3mm diameter.
Here are some example projects where you could use such a part.
Crystal Set One
https://www.interestingelectronics.com/old/henrys_interesting_electronics/loud_crystal_set_radio/loud_crystal_set_radio.htm
Crystal Set Two
https://www.interestingelectronics.com/old/henrys_interesting_electronics/crystal_radio_v2/crystal_set_radio_v2.htm
Choccy Block Crystal Set Radio Kit
https://www.usefulcomponents.com/main_contents/projects/choccy_block_crystal_radio/choccy_block_crystal_radio.html
Tuned Loop Aerial
https://www.interestingelectronics.com/old/henrys_interesting_electronics/am_radio_loop_aerial_booster/mw_lw_am_loop_aerial_antenna.htm
Superheterodyne MW AM Radio
https://www.interestingelectronics.com/old/henrys_interesting_electronics/mediumwave_radio/mediumwave_radio.htm
The Ladybird Book "Learnabout... Making a Transistor Radio." Radio
https://www.interestingelectronics.com/old/henrys_interesting_electronics/ladybird_radio/ladybird_radio.htm
Breadboard Six Transistor MW AM Radio Kit
https://www.usefulcomponents.com/main_contents/projects/breadboard_trf_radio/breadboard_trf_radio.html
