6mm Flatted Shaft Potentiometer Linear Control Pot B D
B1K
£3.90
Skip to product information

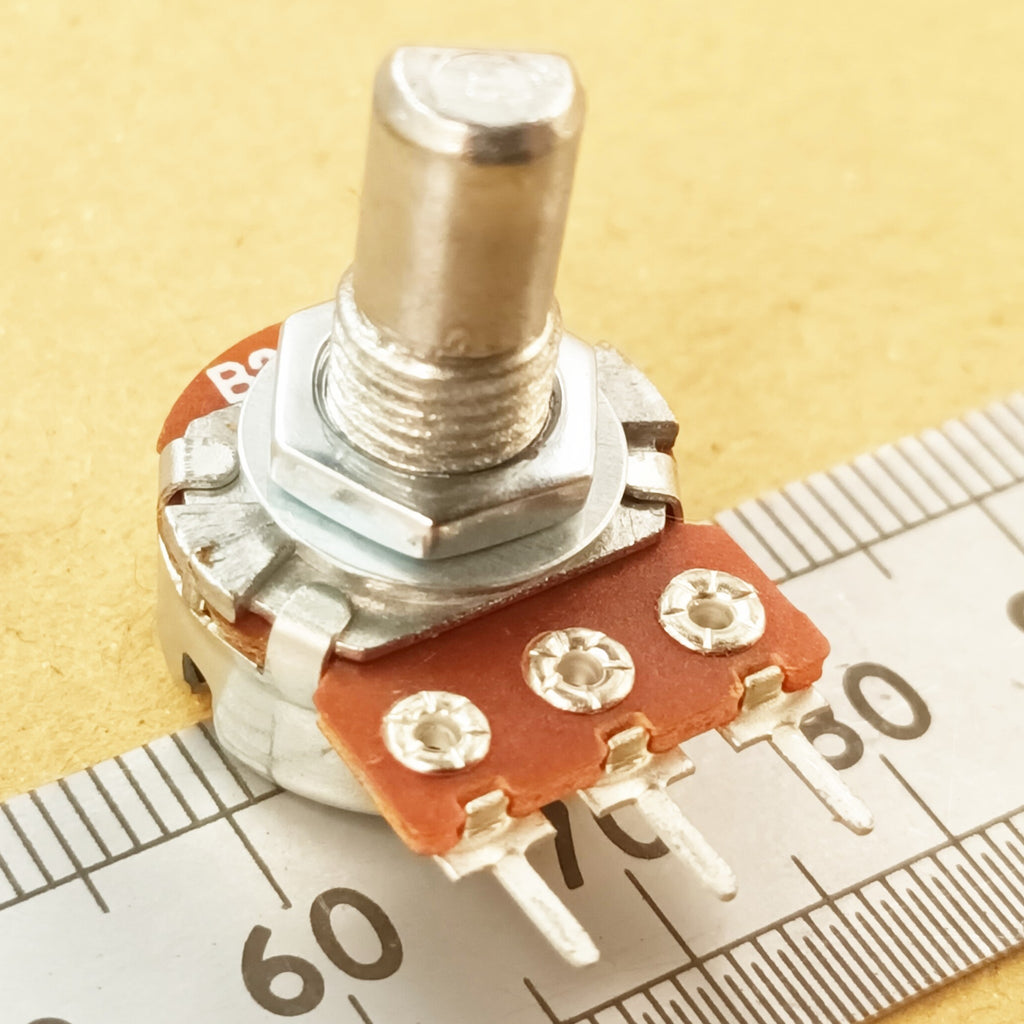

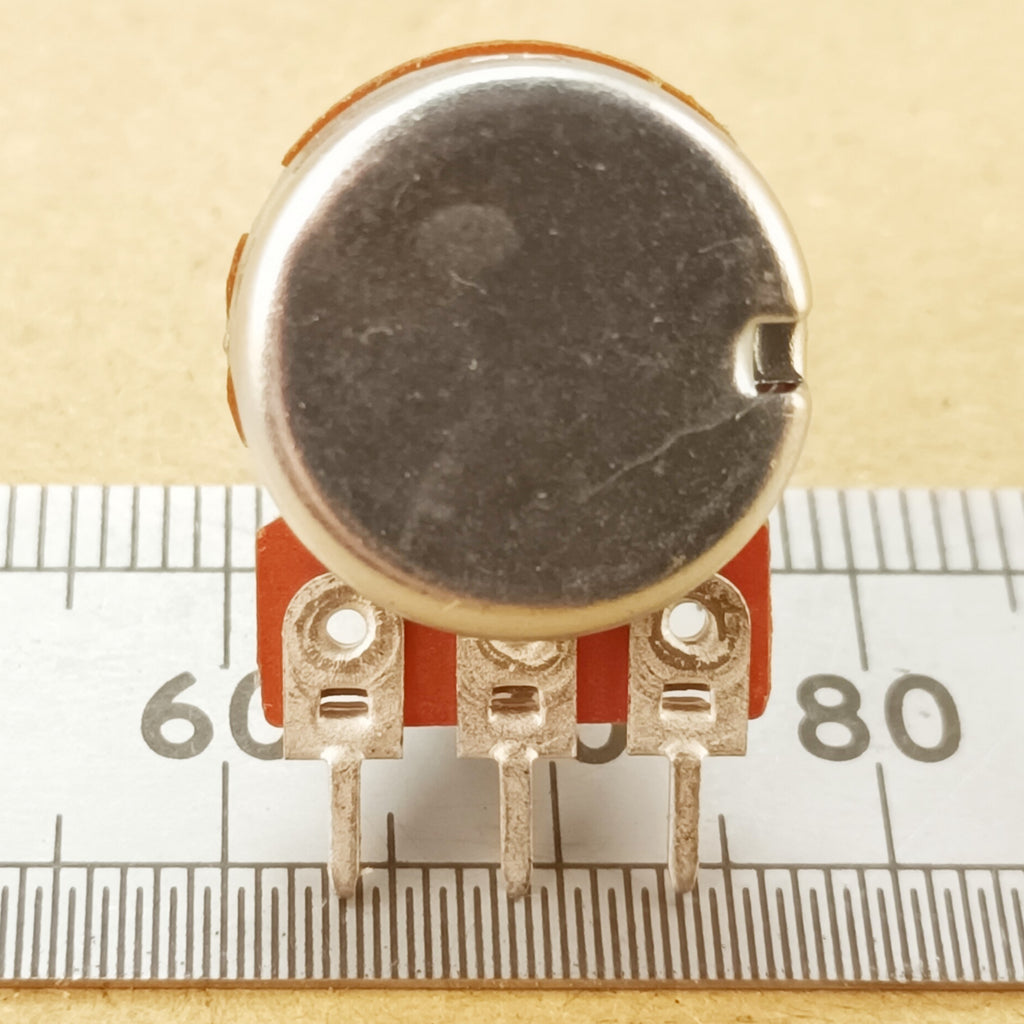

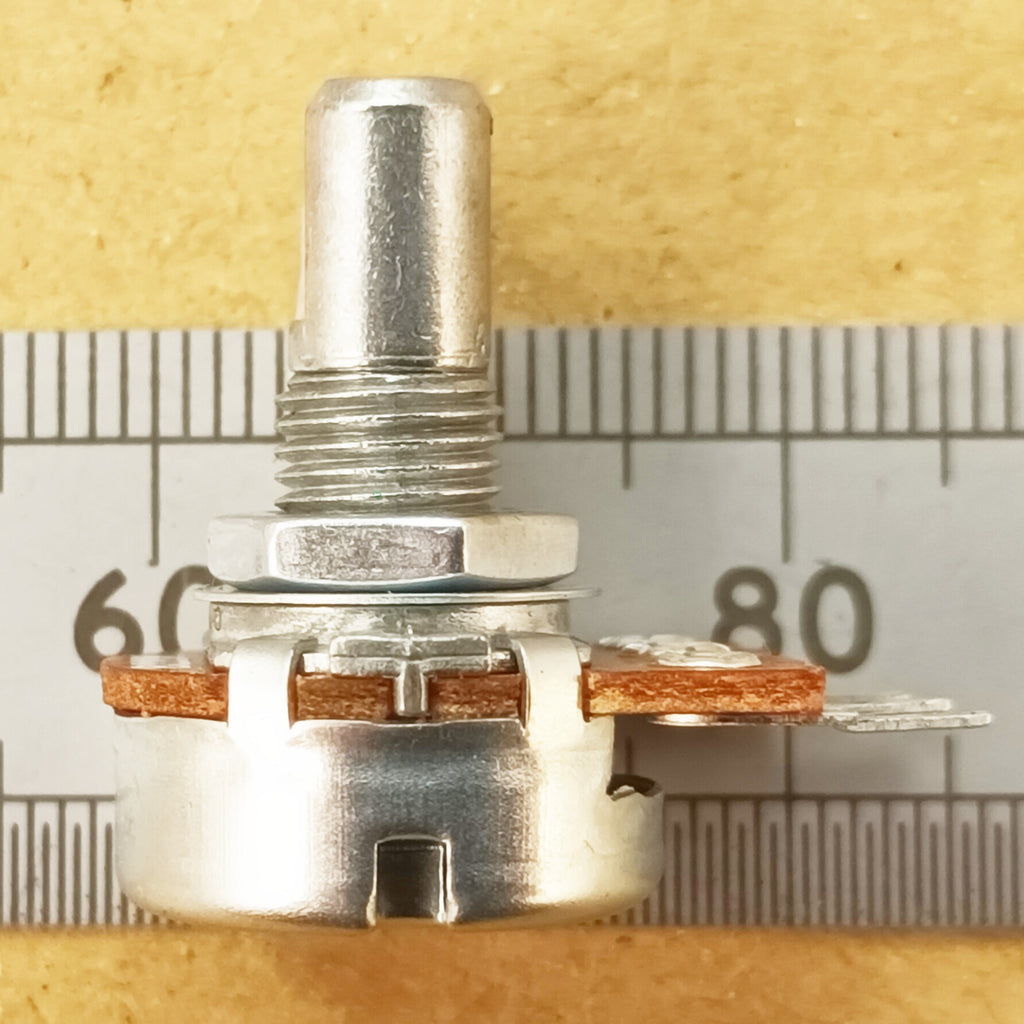

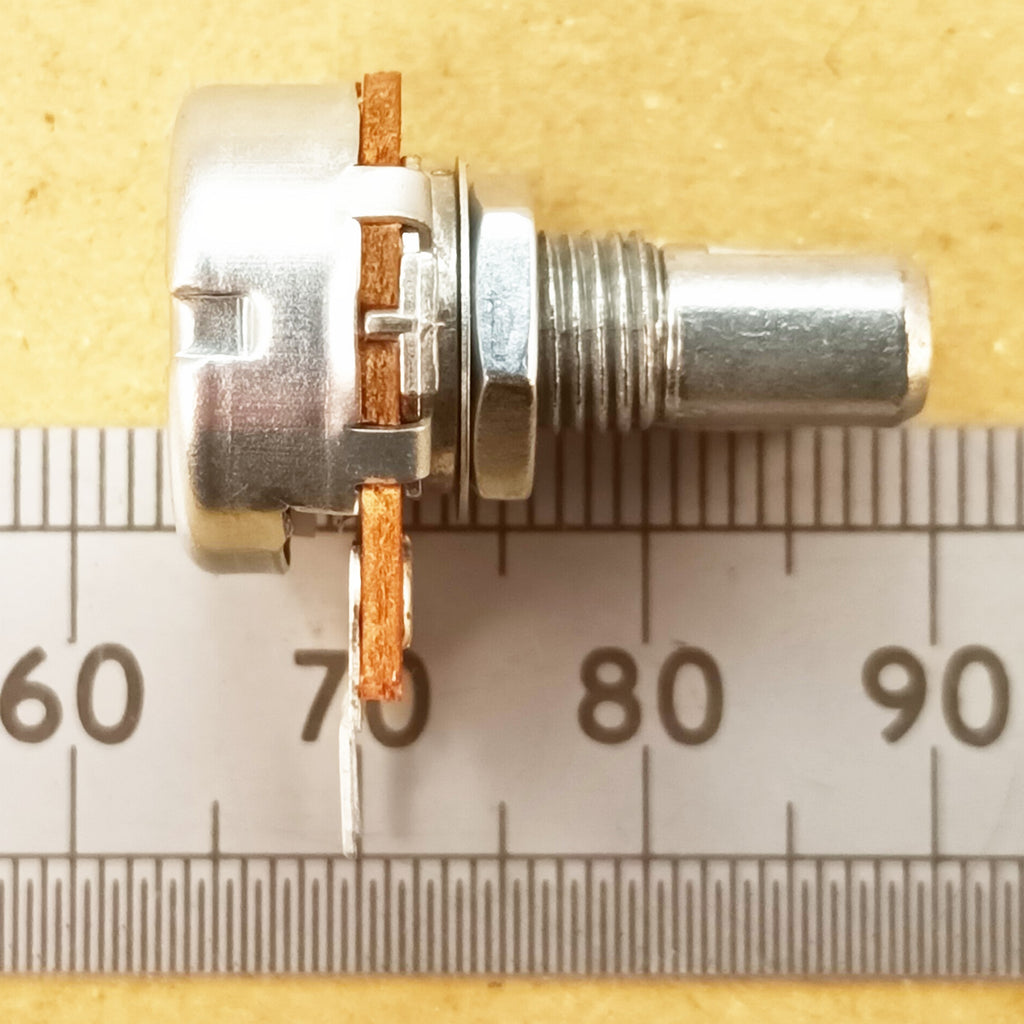

This is one item of new, single gang, linear carbon track potentiometer which has a standard 6mm diameter D-shaped flatted shaft. The turning shaft length is 8mm and the threaded section of the pot is 6mm. A nut and a washer are included for mounting on a front panel. The mounting hole required is 7mm diameter. The connection pins will allow either PCB mounting or soldered wire connections.
The "B" prefix before the track resistance value denotes a linear track taper. The max power rating is 0.2W. When the pot is centered in the middle of the travel, the flat points downwards towards the pins, i.e. the flat points away from the wiper.

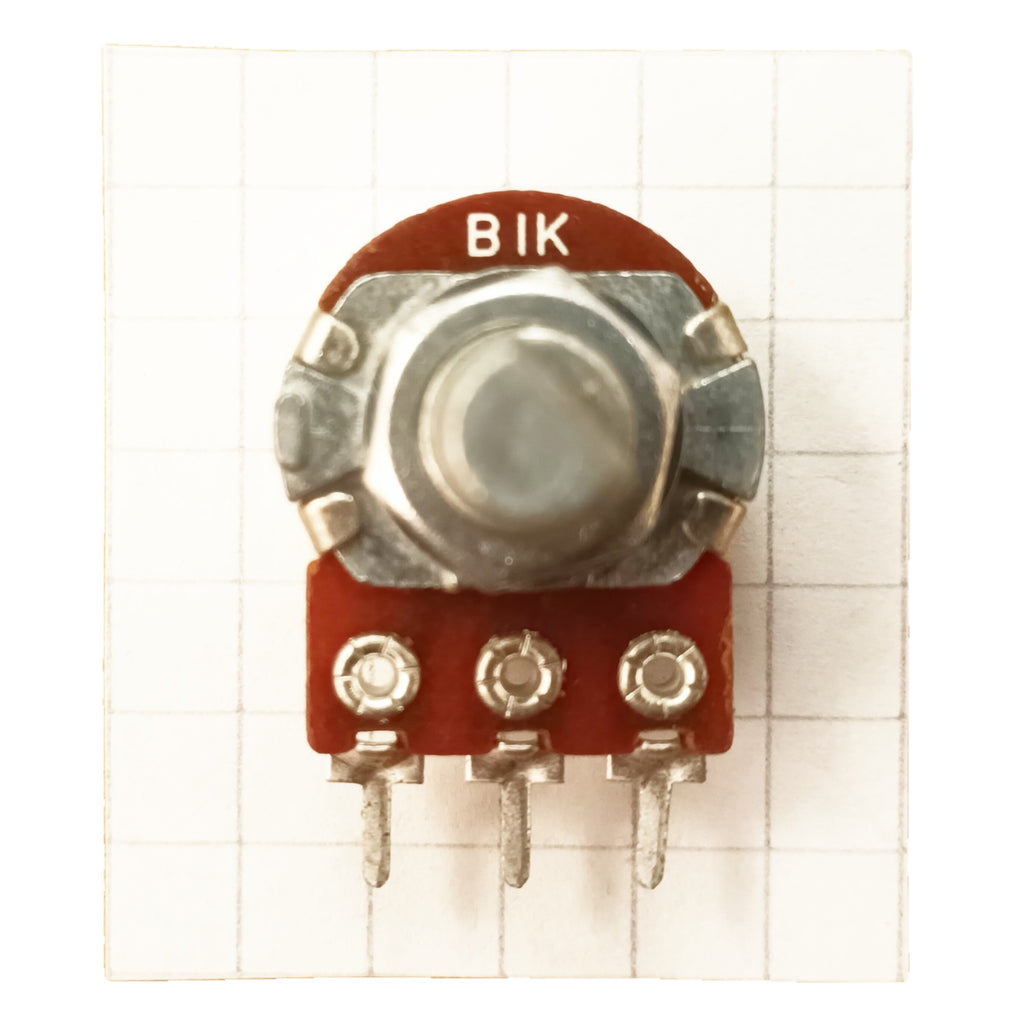

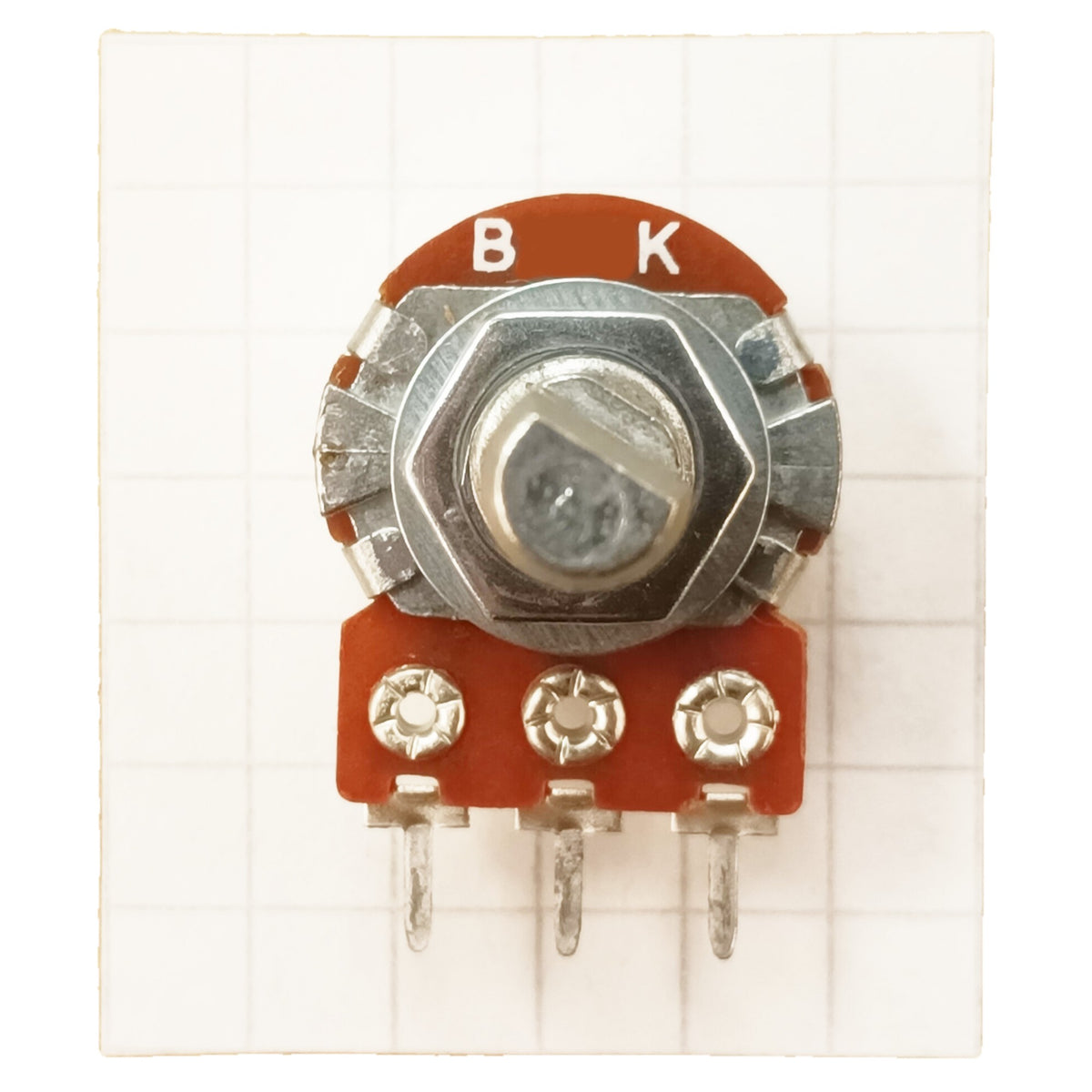

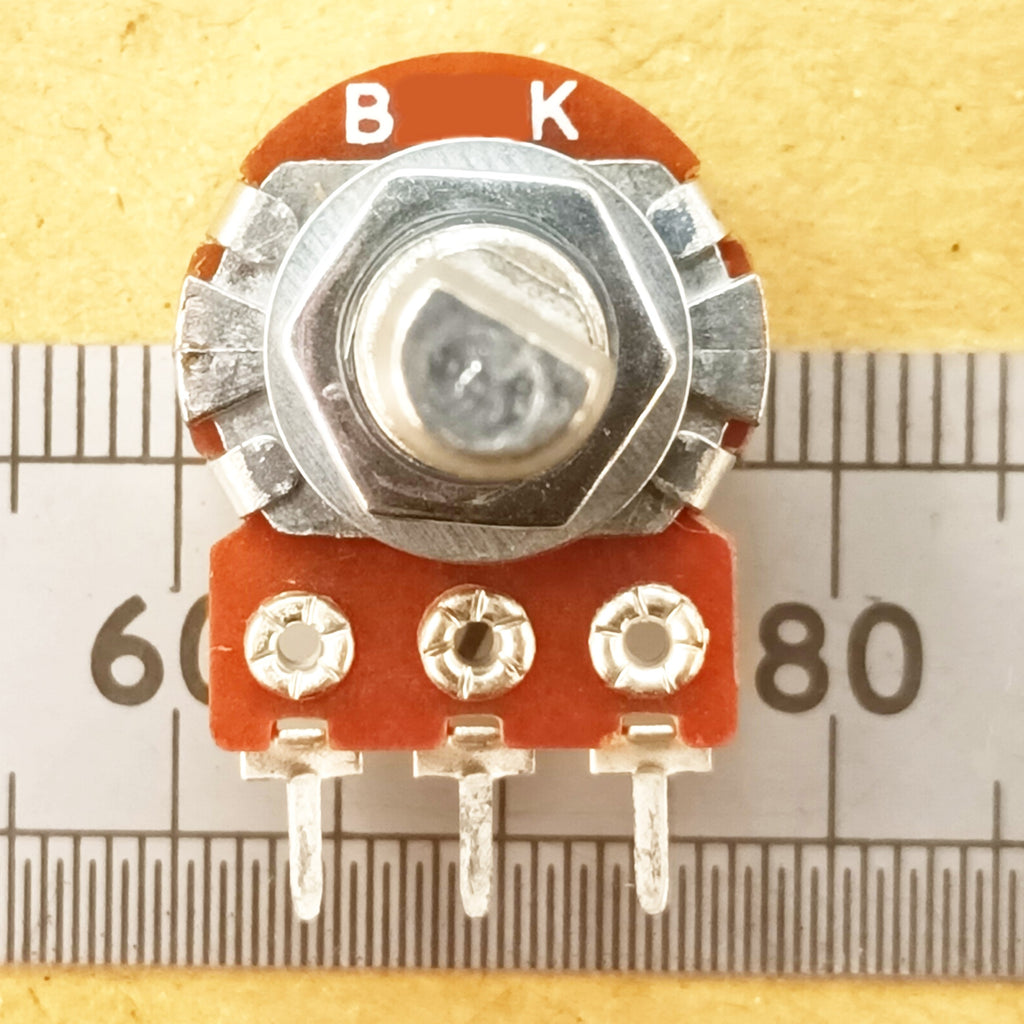

B2K2, B5K, B10K, B22K, B100K and B220K do not have the anti-rotation lug.
If you have a pot with a track label of B503, this is a B50K where 3 is the number of zeros after 50 in Ohms. A 502 would be 5K, a 472 would be 4K7 etc. Sometimes pots may also be labelled with the B as a suffix i.e. 50KB.
