41 Detent Click Potentiometer 6.0mm D Shaft Solder Lug 16mm Linear DSL41

This is one item of single gang, linear, conductive plastic track potentiometer.

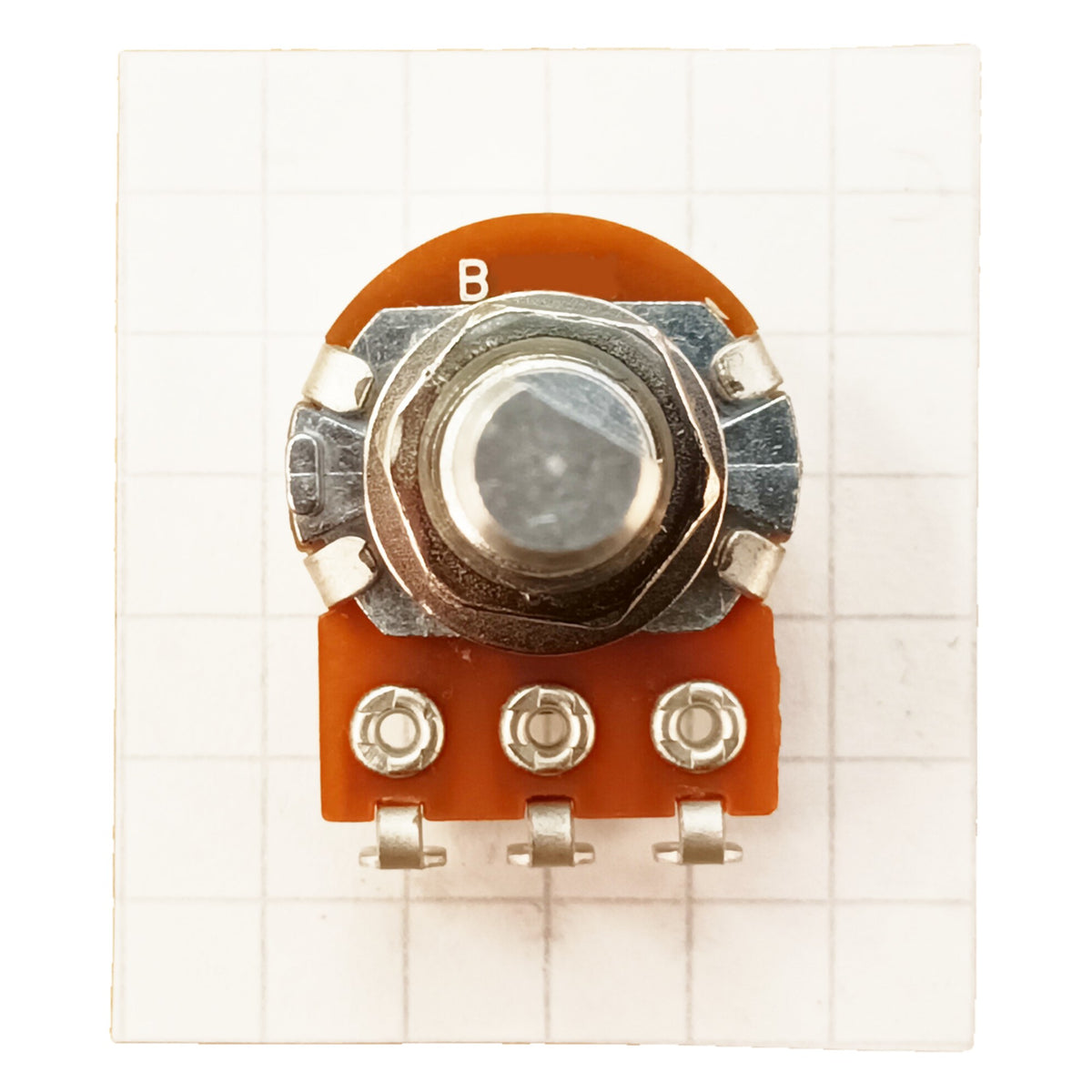

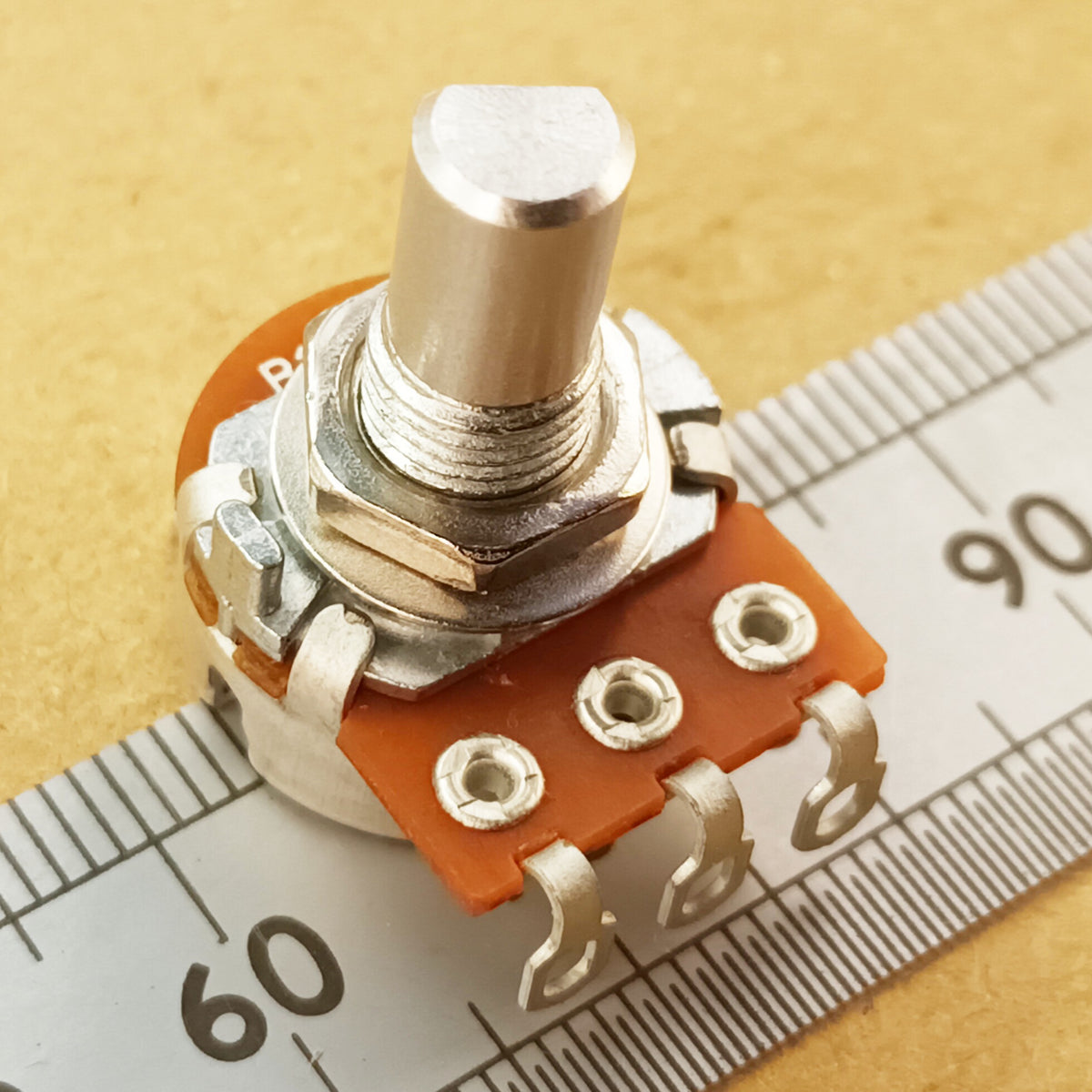

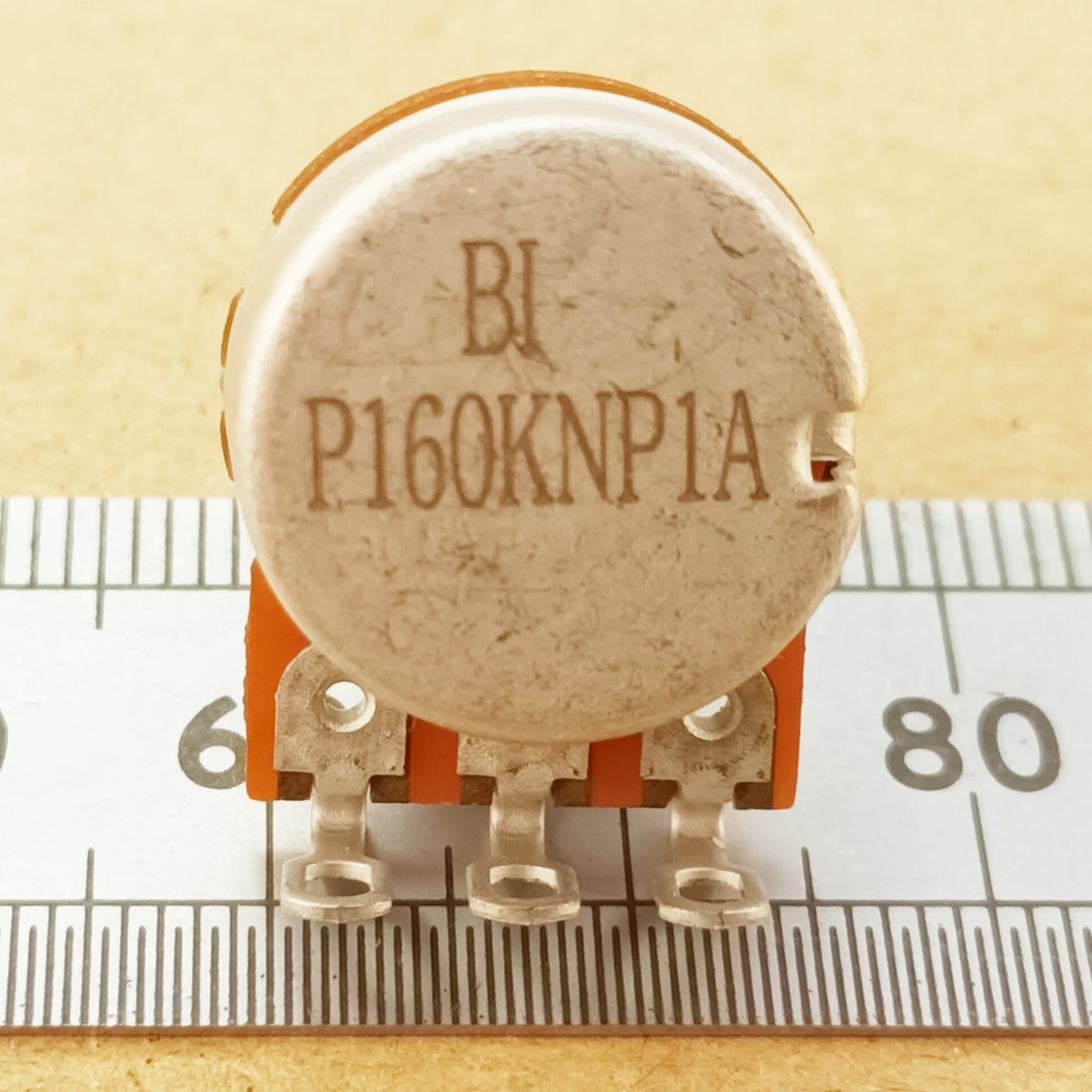

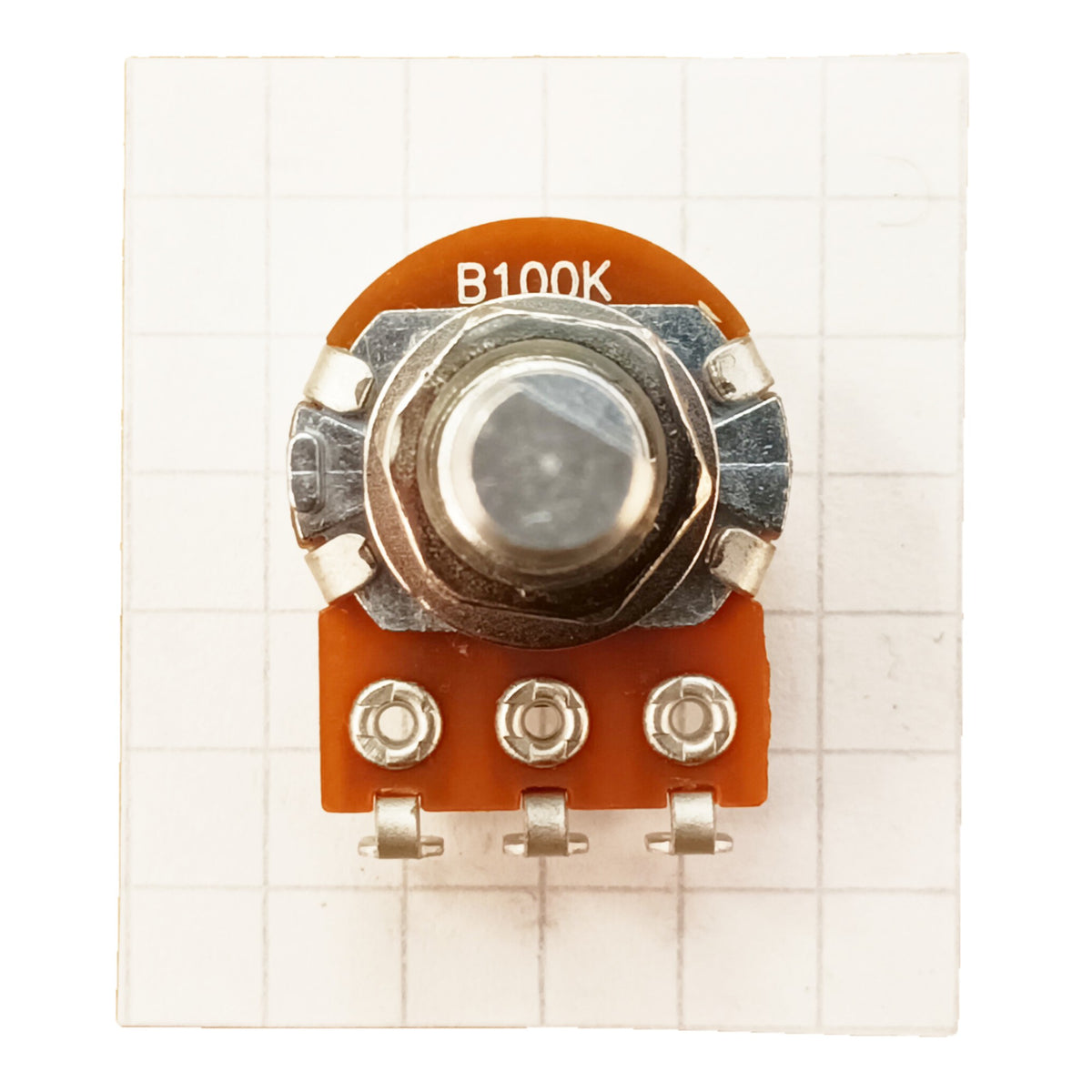

These are new items and come with a nut and a washer for mounting on a front panel. There are 41 clicks or detents as the shaft rotates. The D shaft is 6.0mm metric diameter. The mounting hole required is 7mm diameter. The connection pins are solder lugs. The "B" prefix before the track resistance value denotes a linear track taper. The max power rating is 0.2W. The track tolerance is 20%. The manufacturer is Bourns International. The rated life is 100,000 cycles. The flat on the shaft points away from the wiper position on the track and the photographs show the shaft turned fully anticlockwise.

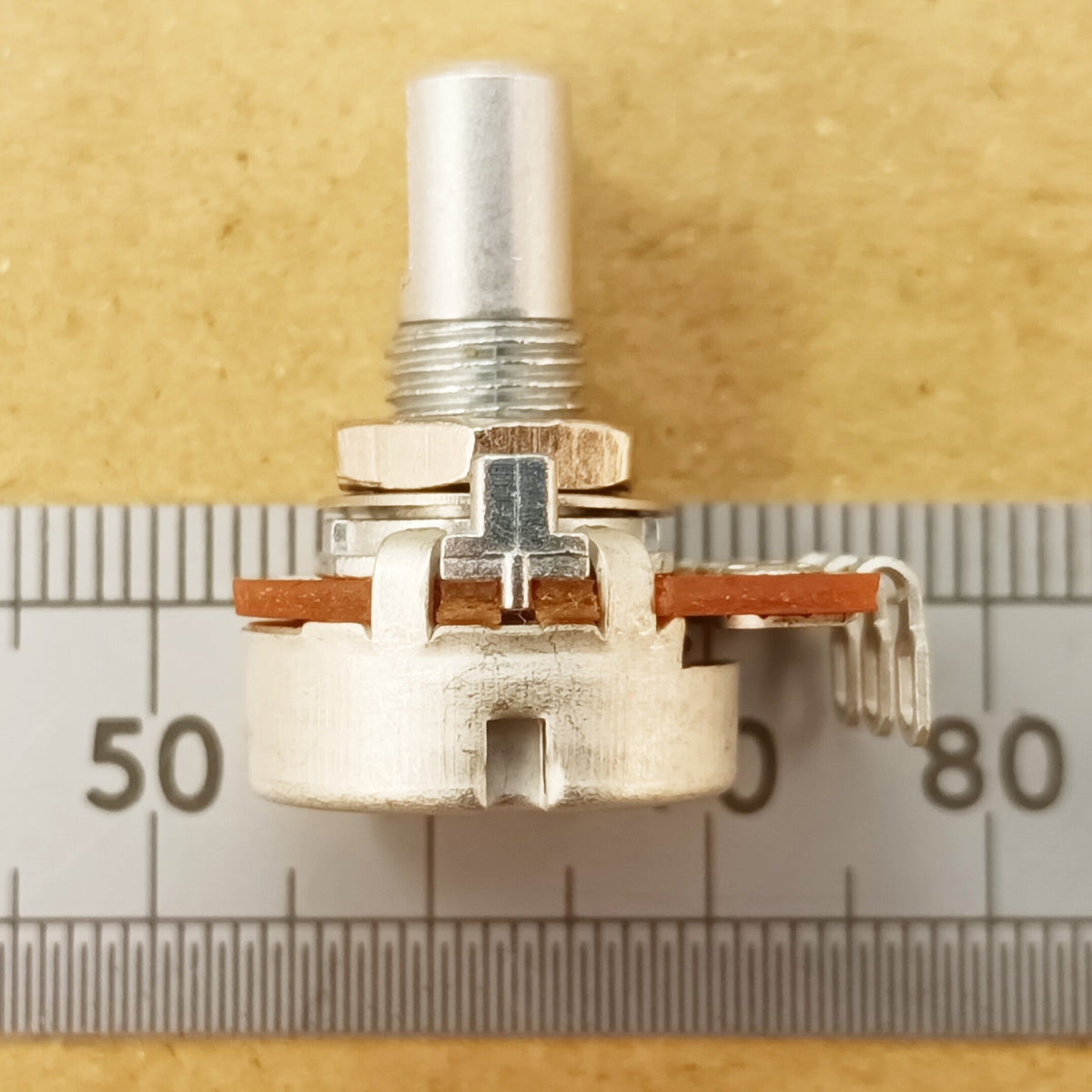

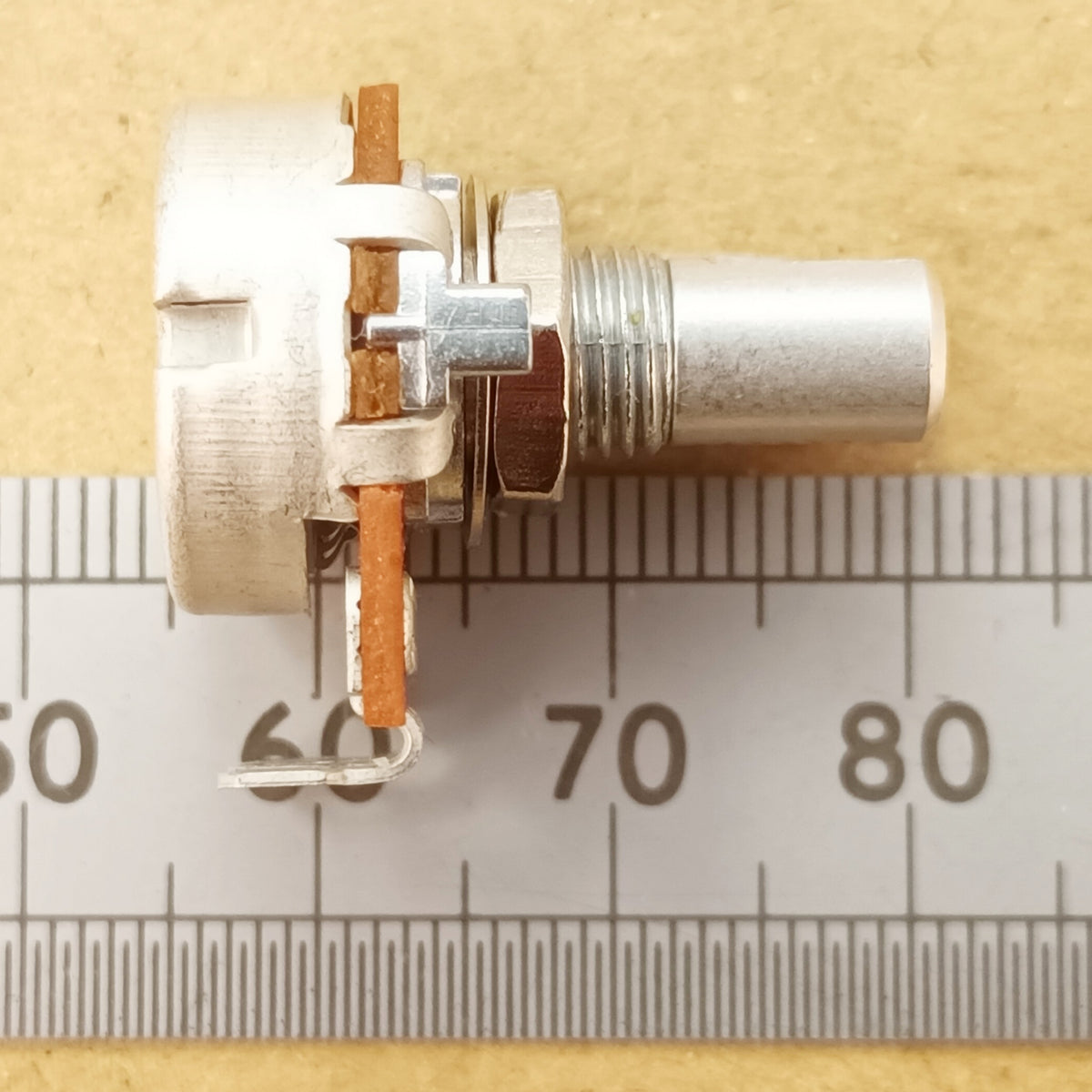

The shaft length is a total of 15mm, where the threaded part is 6mm long and the turning part is 9mm. The D-shaft cut length is 7mm. I can only get the values already listed in the variations in this exact mechanical size and type.

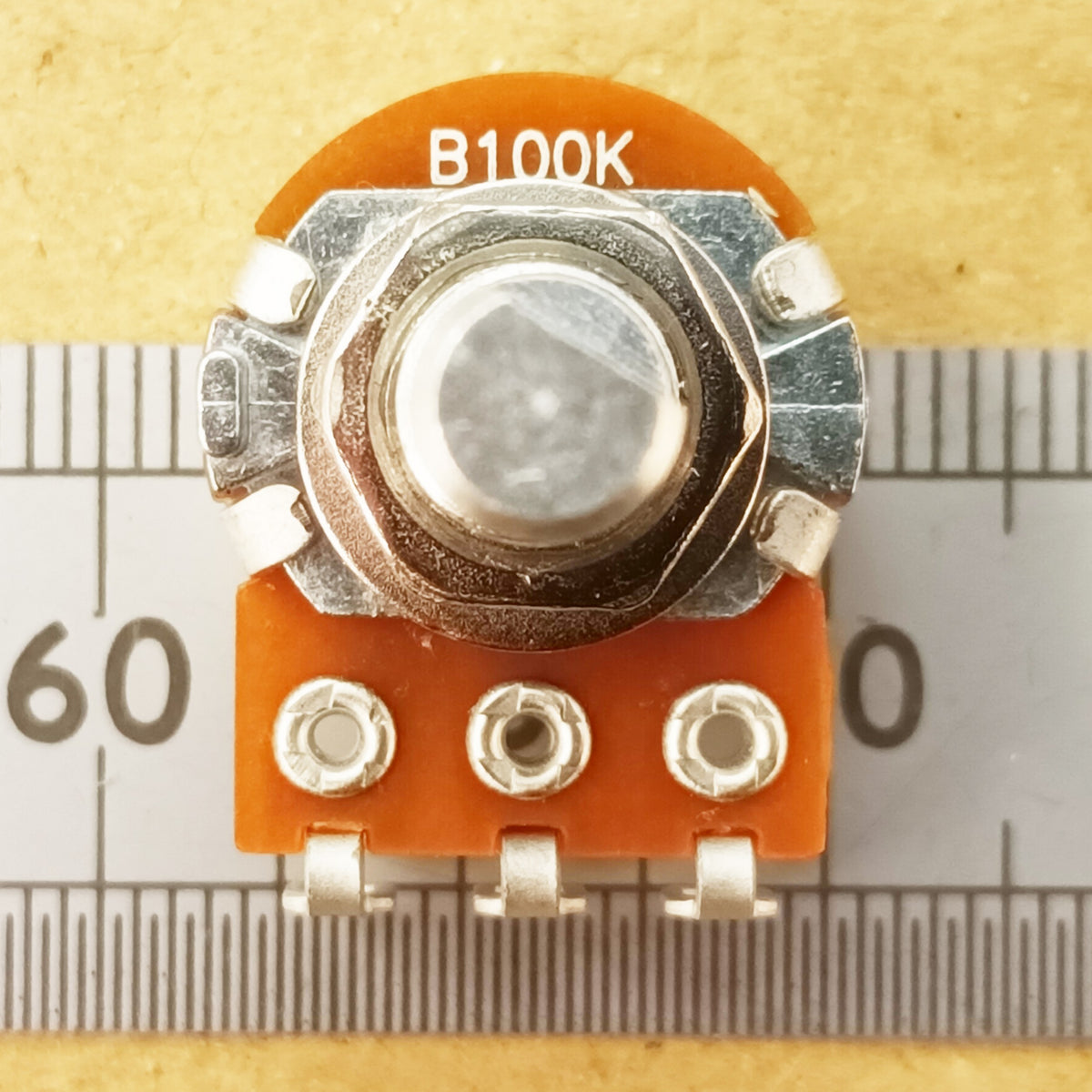

If you have a pot with a track label of B104, this is a B100K where 4 is the number of zeros after 10 in Ohms. Sometimes pots may also be labelled with the B as a suffix i.e. 100KB.
