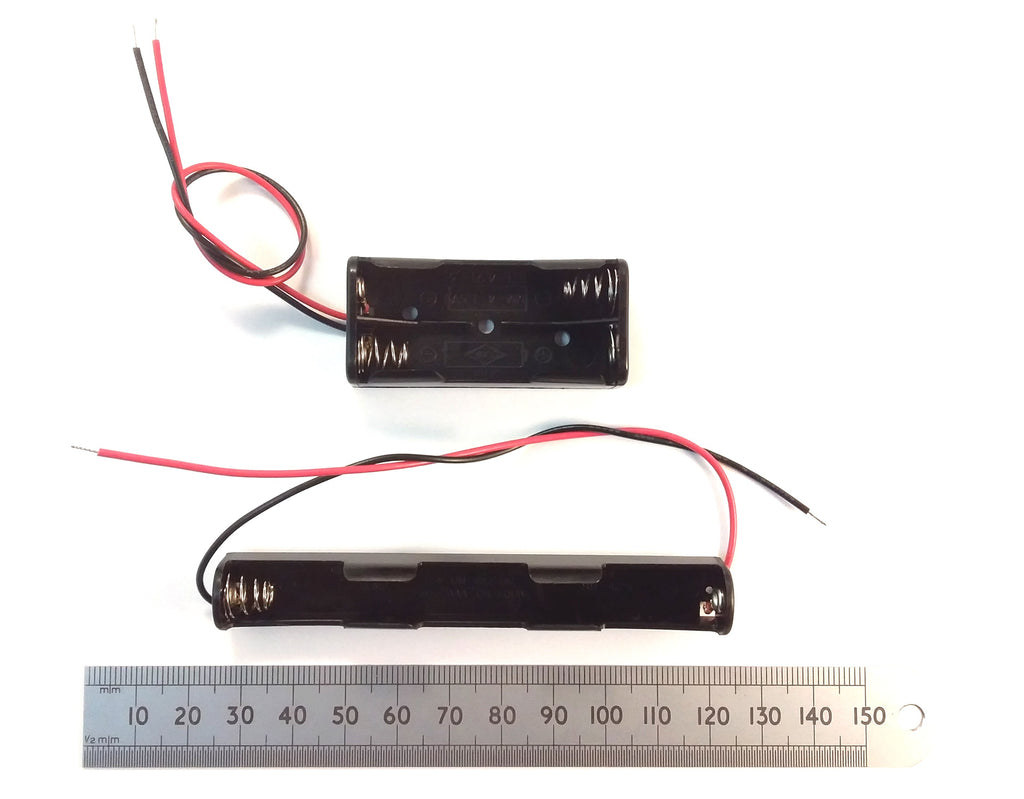

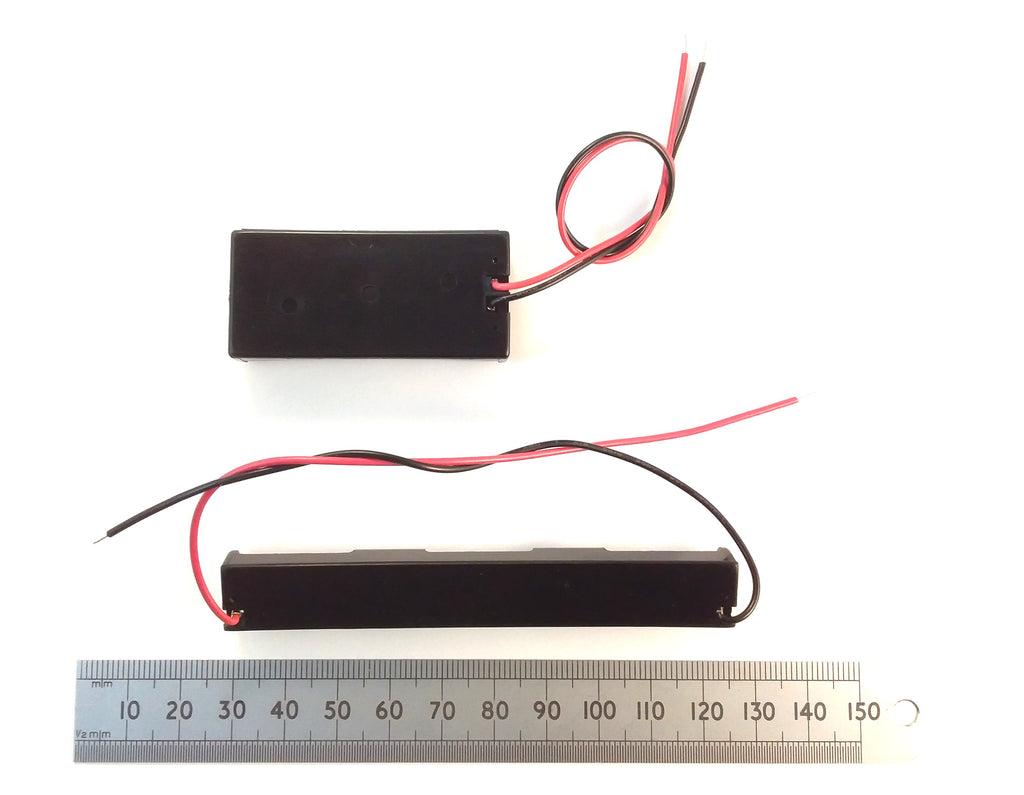

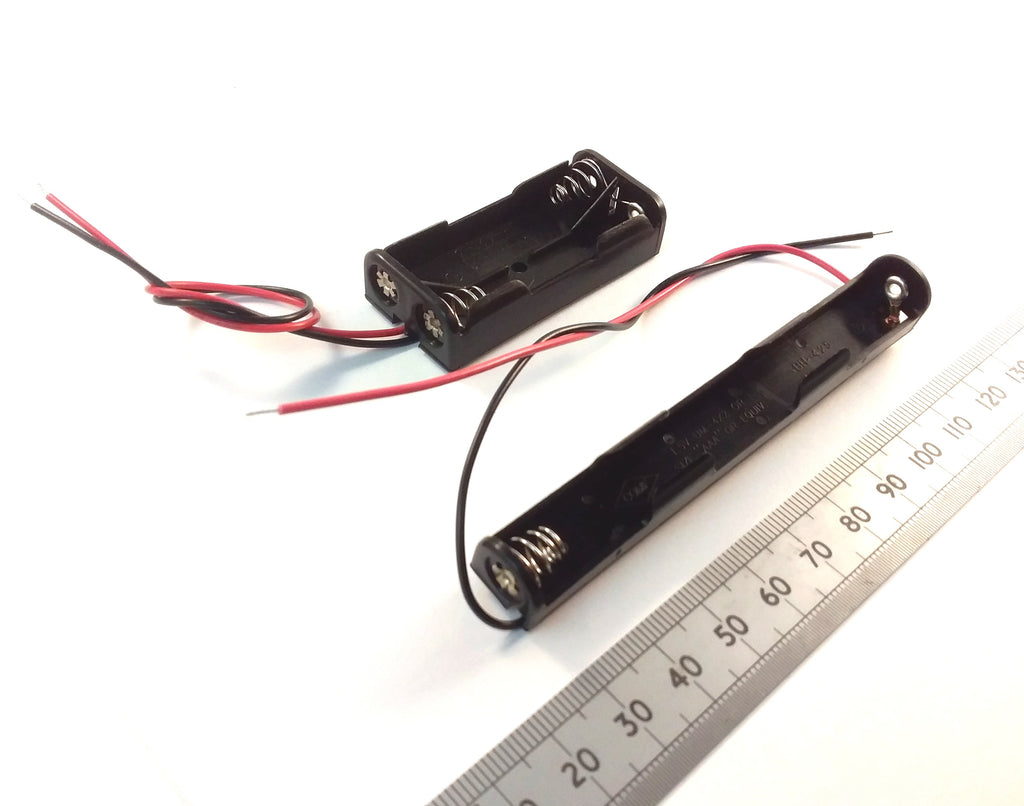

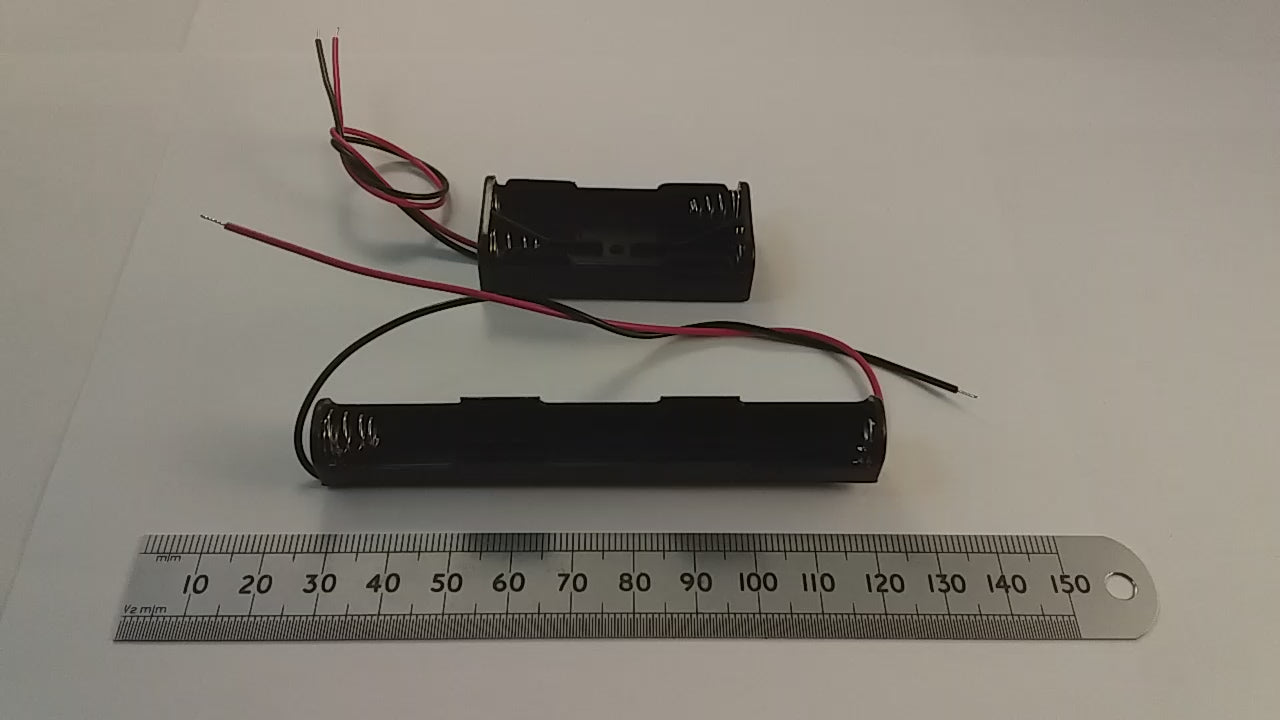

2X AAA Battery Holder With Wires 2 UM4, Long And Side By Side

This is one item of 2 X AAA battery holder with flying lead wires. These are currently in stock in two configurations, Long and Side-by-Side. The higher pack quantity options are cheaper per item. If you would like to mix types in a pack, please use the MIX option and send me a site message with your requirements, or add a note to the order.

2 X AAA LONG

This is one item of 2 X AAA battery holder in the linear configuration made by Eagle. The crimps on the wires are good quality and the moulding is clean. I'd estimate the maximum current at 500mA. The length is 95, height 12.5mm and width 13mm. The wires are 140mm long.

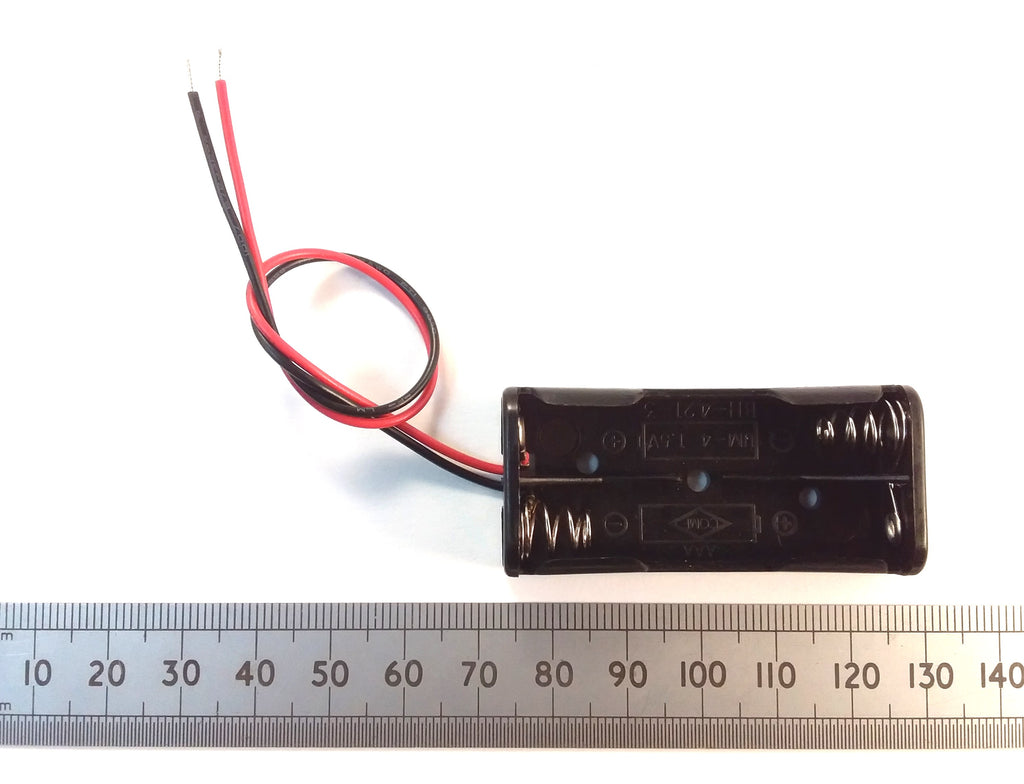

2 X AAA SBS

This is the side-by-side configuration made by Eagle. The crimps on the wires which connect to the battery terminals are good quality and the plastic moulding is clean. I'd estimate the maximum current at 500mA. The length is 53mm, height 13mm and width 25mm. The wires are 140mm long. There are mounting holes which will take M3 machine screws though you'd have to countersink them and use countersink heads to avoid clashing with the inserted cells.

You must avoid shorting the wires together when there are any batteries installed as the high current from alkaline or especially rechargeable nickel cells will damage the holder.
