16mm Logarithmic Potentiometer Splined Conductive Plastic A BIS

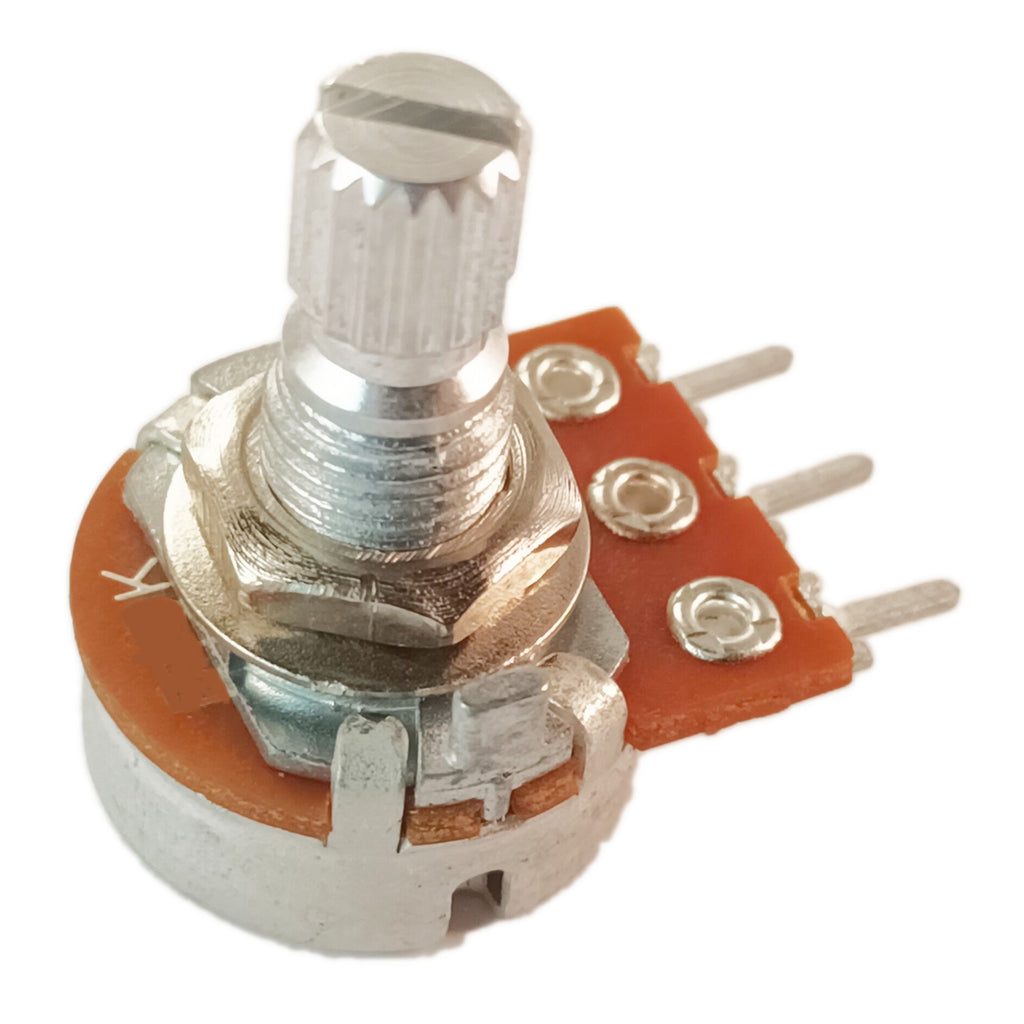

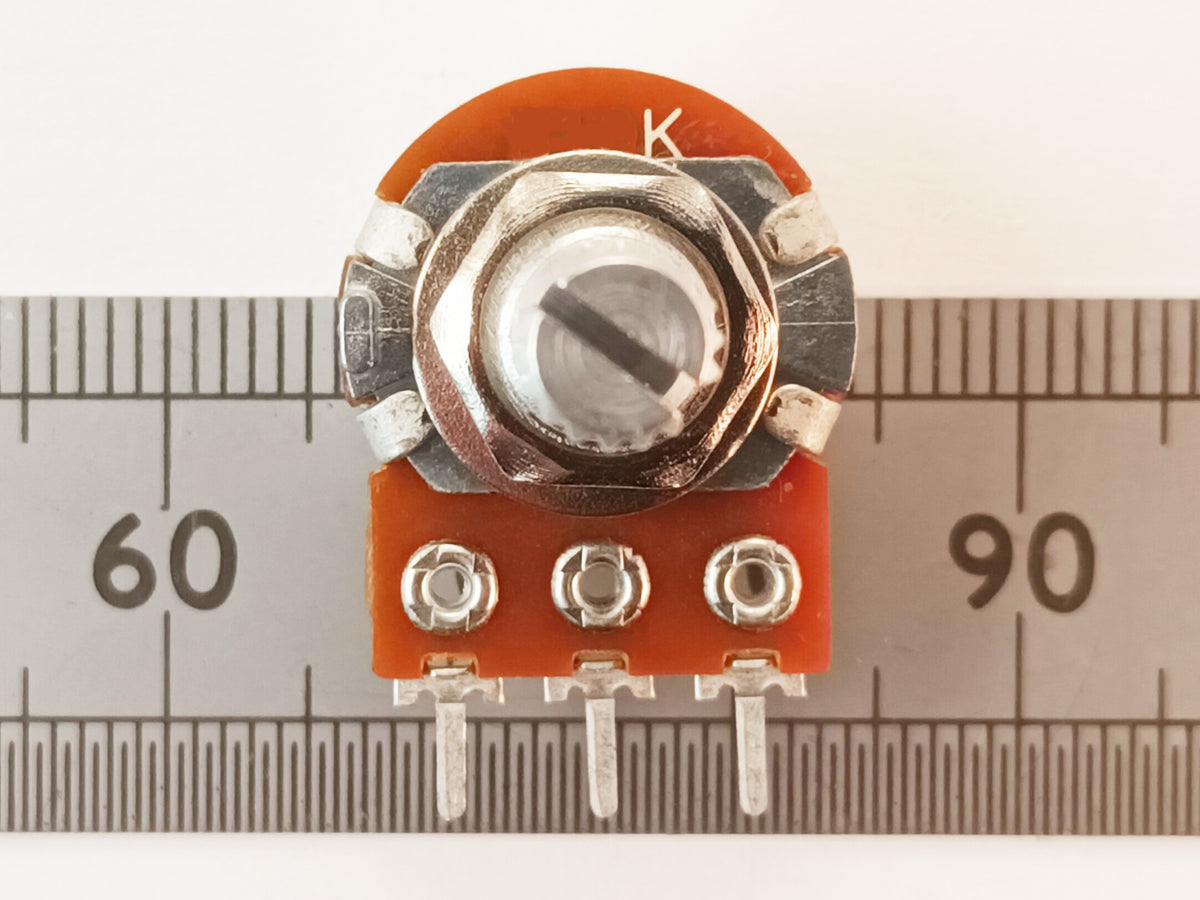

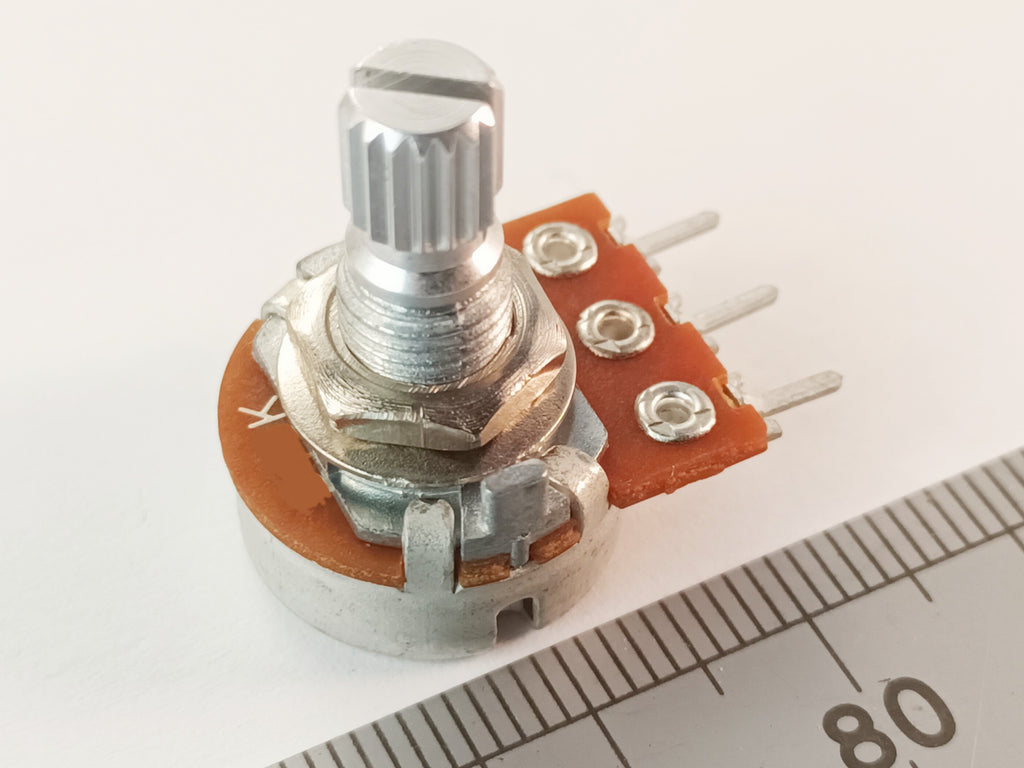

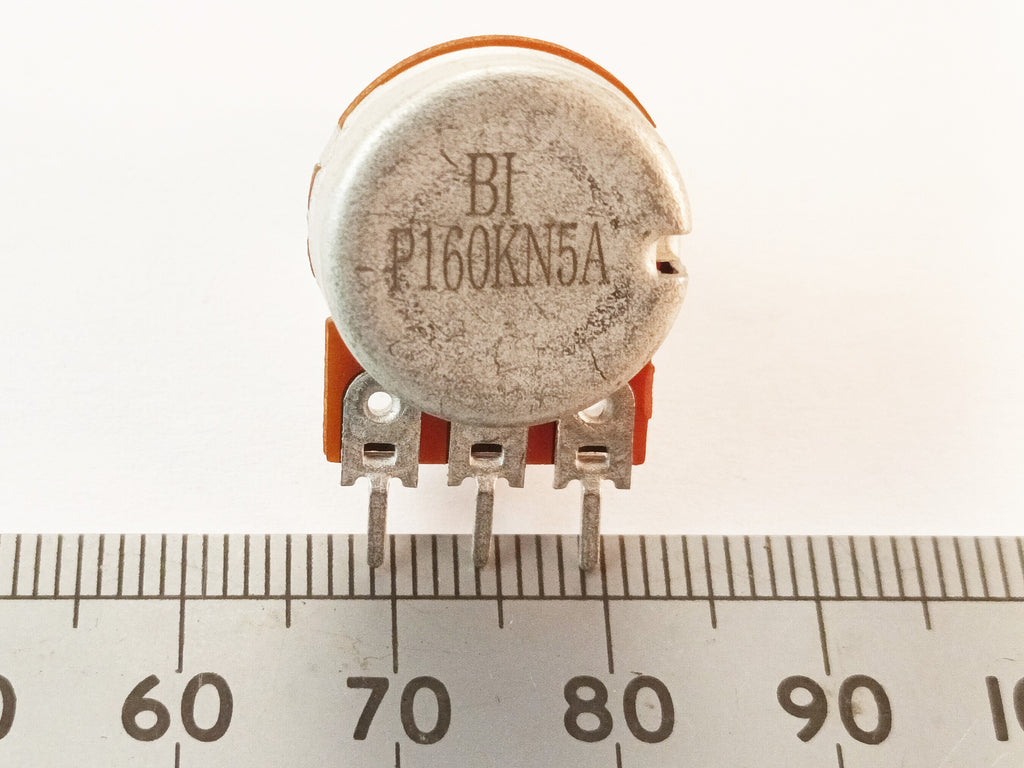

These are new items and come with a nut and a washer for mounting on a front panel. The splined shaft is 6mm diameter. The mounting hole required is 7mm diameter. The connection pins will allow either PCB mounting or soldered wire connections. The "A" prefix before the track resistance value denotes a logarithmic audio volume control type track taper. The max power rating is 0.1W. The tracks are nice hard wearing, low noise conductive plastic types suitable for analogue volume controls.

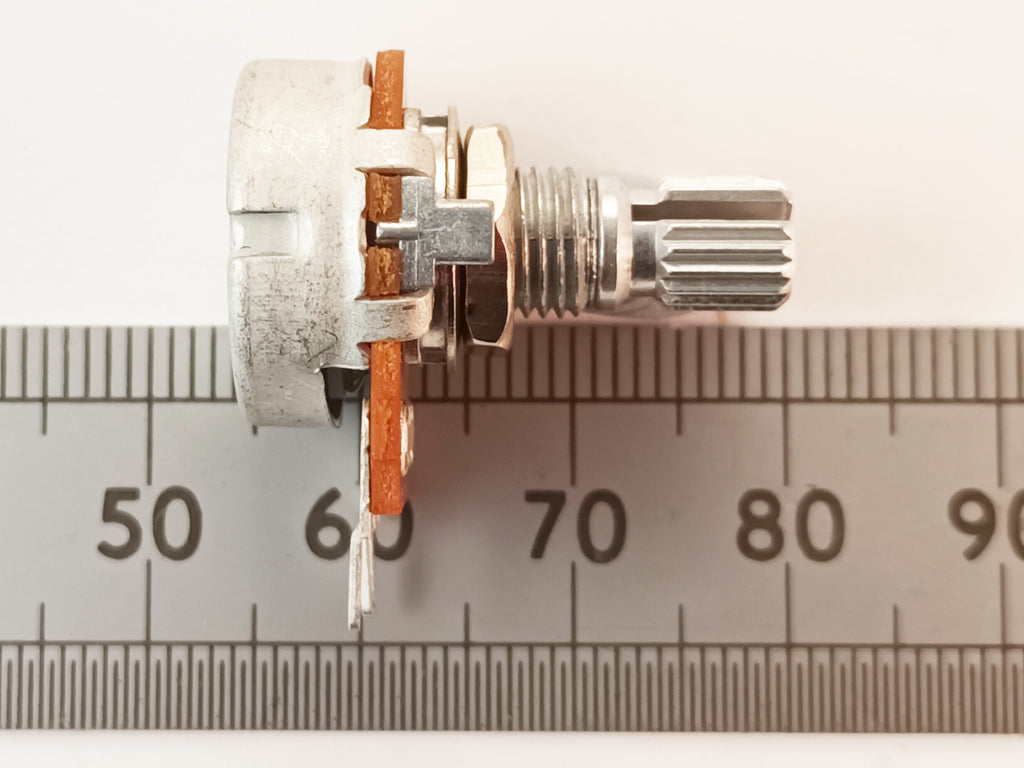

The shaft length on all resistance values of these pots is a total of 15mm, where the threaded part is 6mm long and the turning part is 9mm. This makes them particularly useful for mounting directly into a fairly thin front panel where you might otherwise have to saw off some of the shaft to avoid the knob sticking out too far.

The available values are

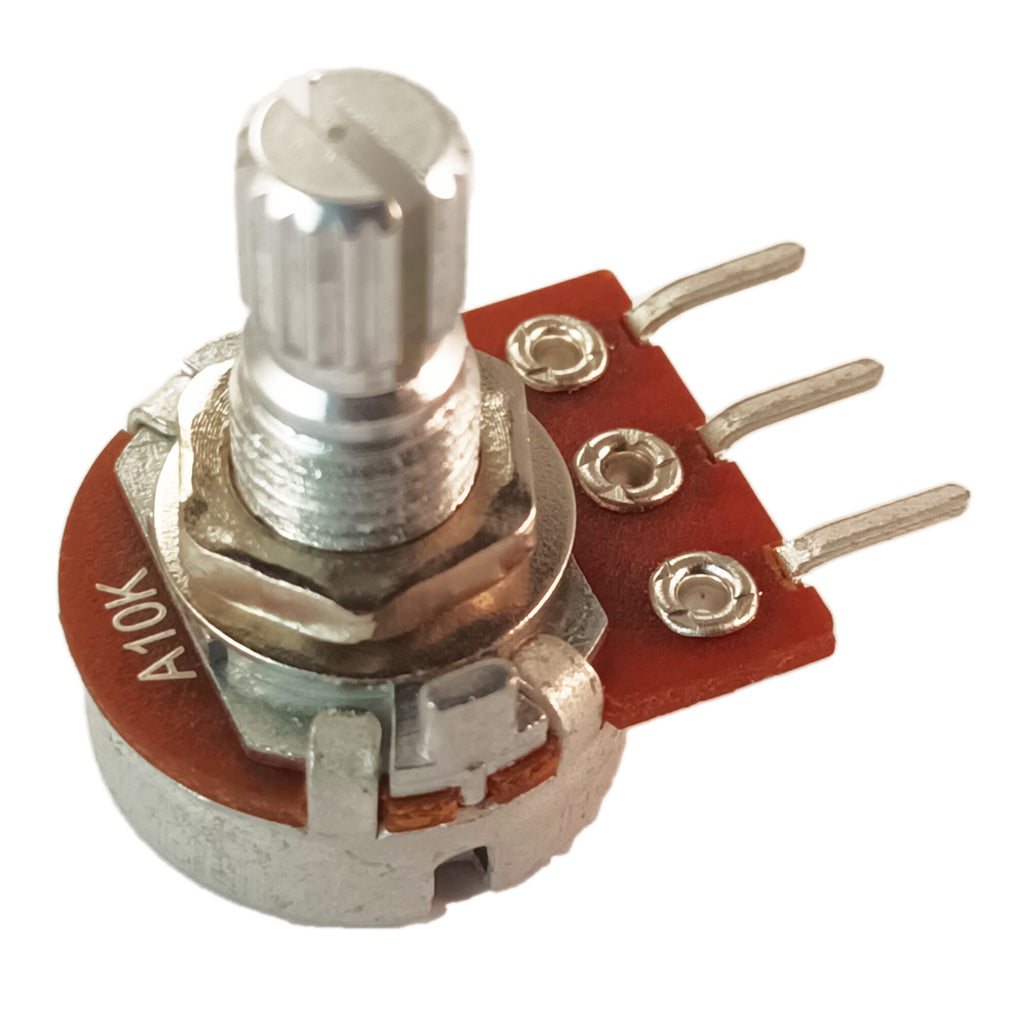

A10K
A250K
A500K
A1M
